Product Introduction：
The Aluminum Corners Automatic Machine is an integrated, CNC-controlled processing system purpose-built for high-efficiency, high-precision machining of aluminum alloy corners, corner keys, and profile connectors. It consolidates four core processes—Up&Down Drilling Hole, Bottom Tapping, Open Slot, and Cutting—into one automated workflow, enabling one-time clamping and full-process forming without manual transfer or re-fixturing.
Designed for continuous mass production, the machine adopts servo-driven axes, high-speed electro-spindles, and pneumatic clamping for stable, low-vibration operation. It supports quick programming via a touchscreen HMI, stores multi-part processing recipes, and accommodates various aluminum profile sizes and corner specifications without frequent mold changes. With a compact footprint and robust construction, it delivers consistent quality and high throughput for structural aluminum components across industries.
Core Product Advantages：
1. All-In-One Process Integration
By combining up/down drilling, bottom tapping, slotting, and cutting in a single machine, it eliminates separate equipment, reduces workflow steps, and cuts production time by up to 60%. One-time clamping avoids cumulative positioning errors and greatly improves efficiency.
2. Micron-Level Precision & Stability
Servo control and CNC positioning ensure drilling, tapping, slotting, and cutting accuracy within ±0.05 mm. Thread quality is uniform, burrs are minimized, and part consistency reaches 99.5% in mass production—critical for assembly fit and structural reliability.
3. High Efficiency & Cost Reduction
Automatic feeding, processing, and unloading reduce labor demand by over 50%. Optimized cutting paths lower material waste; stable operation extends tool life and cuts maintenance cost. Output reaches 10–15 pieces per minute for high-volume runs.
4. Strong Versatility & Flexibility
Compatible with various aluminum corner connectors, angle codes, and profile structures. Processing height up to 150 mm; adjustable parameters adapt to different hole positions, thread sizes (M3–M10), slot dimensions, and cutting lengths. Fast recipe switching supports mixed-volume and custom orders.
5. User-Friendly & Safe Operation
Intuitive touchscreen programming lowers operator training cost. Full safety enclosure, emergency stop, and light-barrier protection meet CE standards. Robust frame and anti-vibration design ensure stable running under 24-hour heavy load.
Typical Application Scenarios：

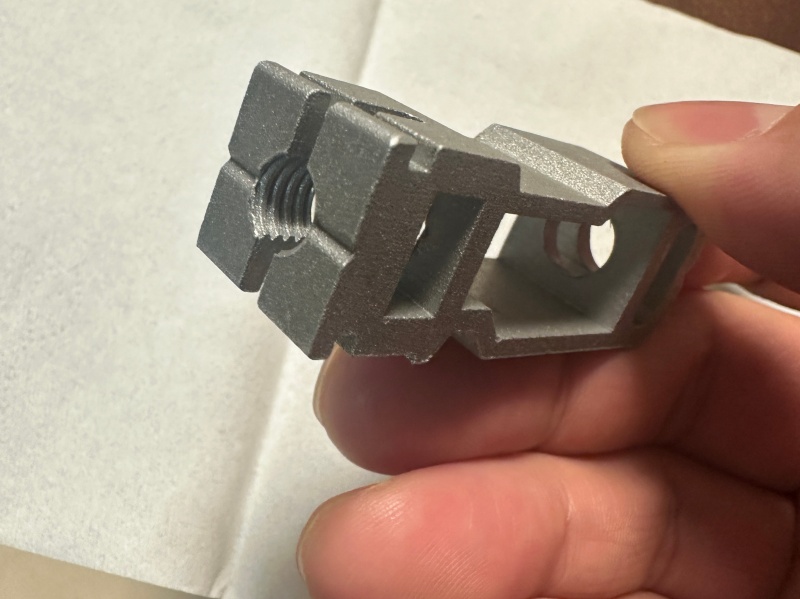

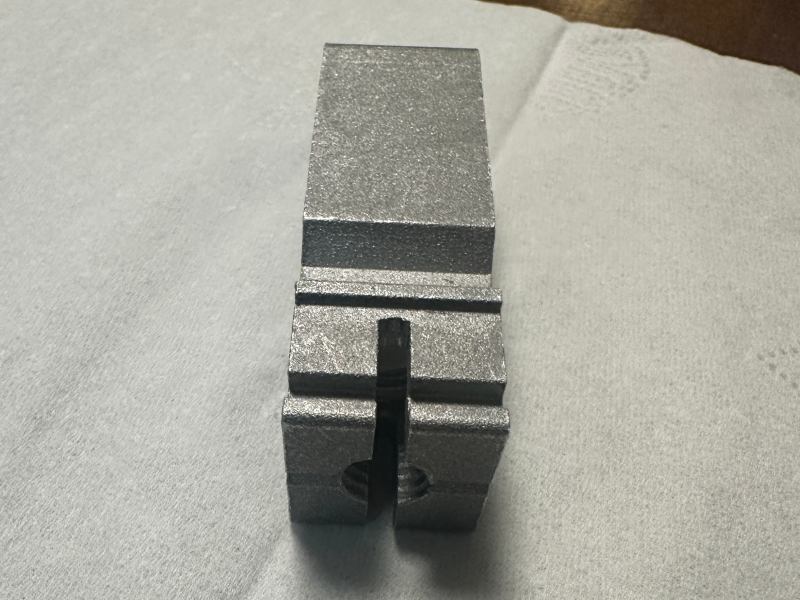

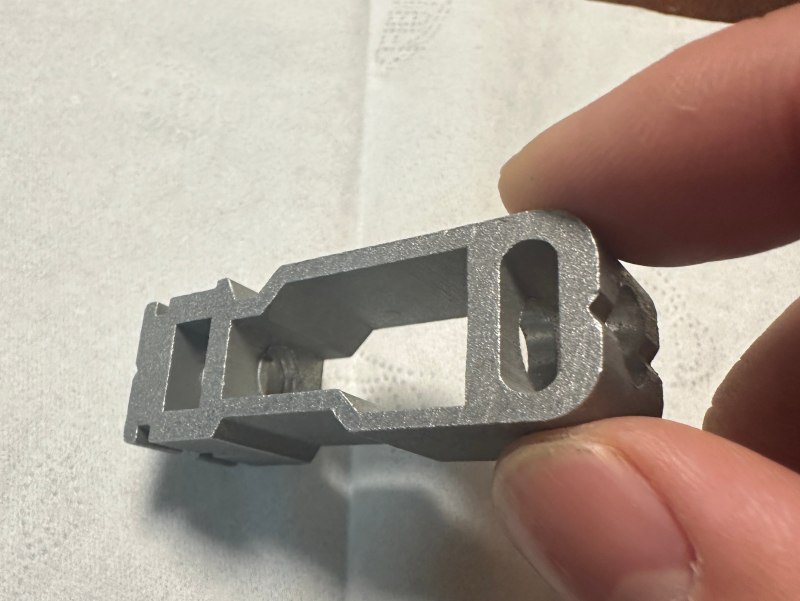

1. Architectural Aluminum (Windows, Doors & Curtain Walls)
Processes corner connectors for aluminum frames, hinge holes, drainage slots, and assembly notches. Ensures tight fit and stable structure for doors, windows, and curtain wall systems.
2. Industrial Aluminum Profiles & Automation Equipment
Machines T-slot frames, bracket corners, and connecting blocks for assembly lines, workbenches, and automated machinery. Delivers precise holes and threads for reliable modular assembly.
3. Automotive & New Energy Components
Produces lightweight aluminum corners for battery trays, chassis brackets, and interior structures. High precision and consistency meet automotive quality and batch stability requirements.
4. Electronic & Mechanical Enclosures
Processes heat-dissipation slots, mounting holes, and threaded bases for aluminum casings, power supply housings, and instrument frames. Supports high-precision small-batch and mass production.
5. Furniture & Display Systems
Machines corners for aluminum furniture, display racks, and shelf connectors. Clean cuts, accurate holes, and reliable threads improve assembly efficiency and product durability.
Conclusion：
The Aluminum Corners Automatic Machine integrates multi-process automation, precision machining, and cost-effective production to solve the pain points of traditional scattered processing: low efficiency, high error rates, and high labor costs. It is the core equipment for manufacturers pursuing high-quality, high-efficiency, and intelligent aluminum corner processing, empowering upgraded productivity and market competitiveness.
