Product Information

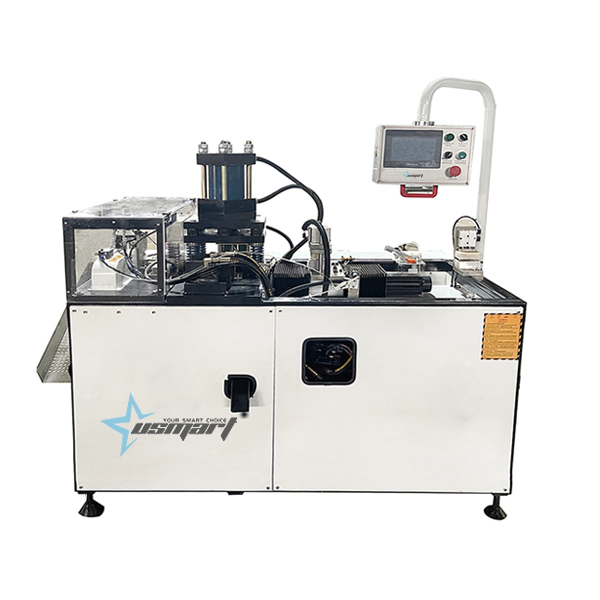

◎ This model is specially designed for automatic processing of various aluminum curtain wall hangings. It can simultaneously complete automatic feeding, punching and automatic cutting.
◎ Automatic processing, all processes are completed in one time. It can save a lot of labor, and has self-loaded with no tail material function.
◎ Punch shape can be designed according to customer drawings and samples. It is also possible to punch and cut on both sides of a workpiece at the same time.
◎ This model is our patented product, it can process 12-25 pieces per minute.
Technical Parameters
| Model | URT-16 |
| Input power | 380v 50hz 7.2kw |
| Specification of saw blade | 355*30 (25.4)*100T |
| Drilling specification | 2-10 mm |
| Tapping specification | 3-12 mm |
| Sawing motor | 2.2kw13000 rpm |
| Working air pressure | 0.6-0.8mpa |
| Overall dimensions | 1700*1000*1700 |
Detail Demonstration

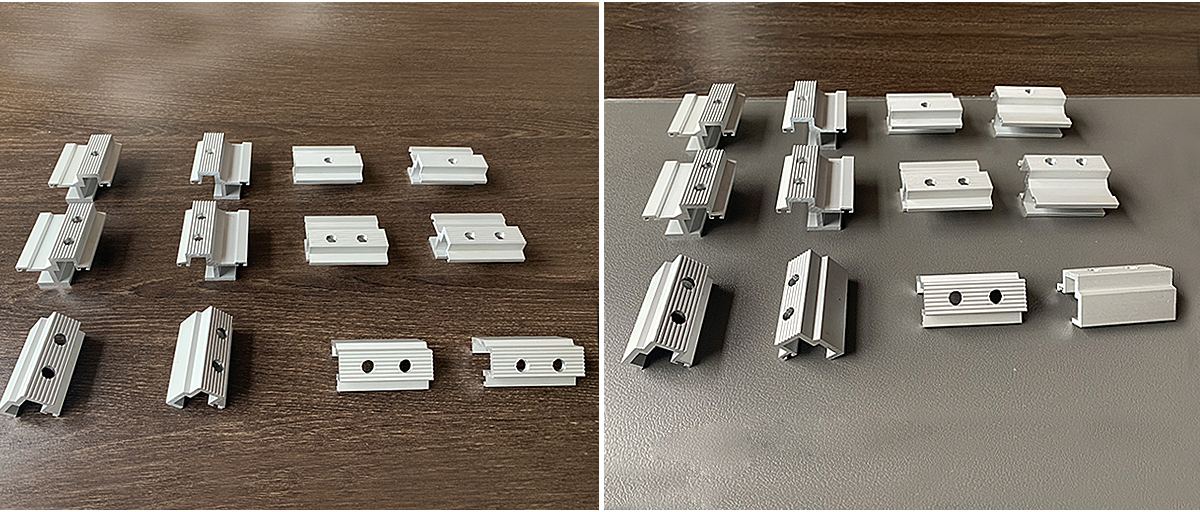

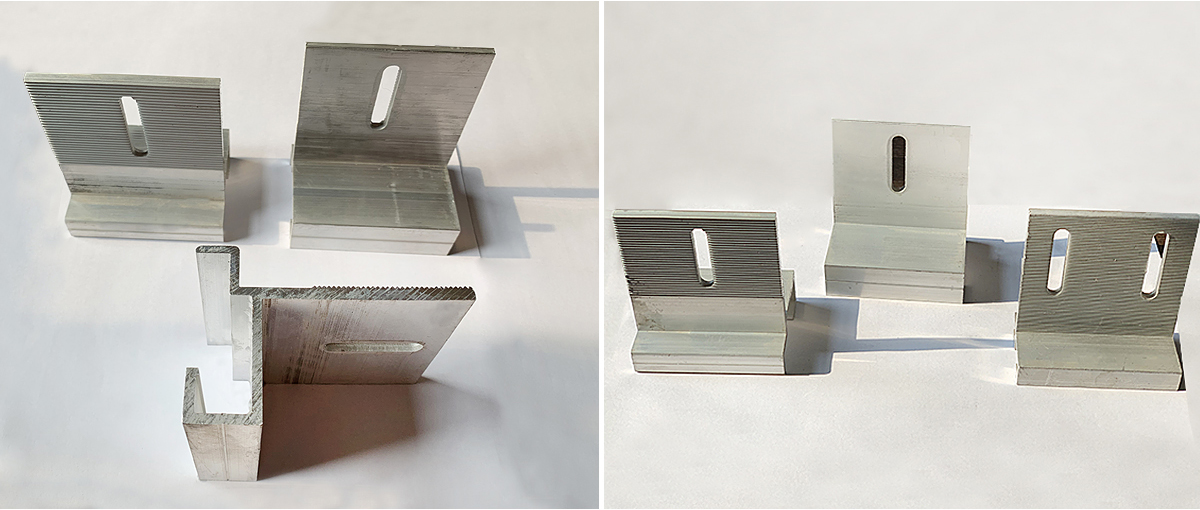

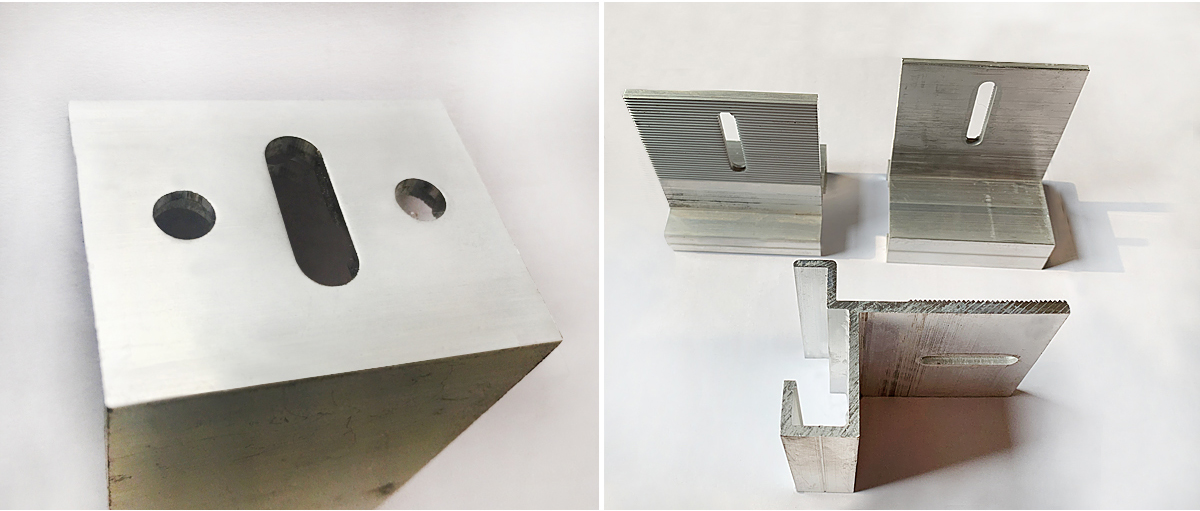

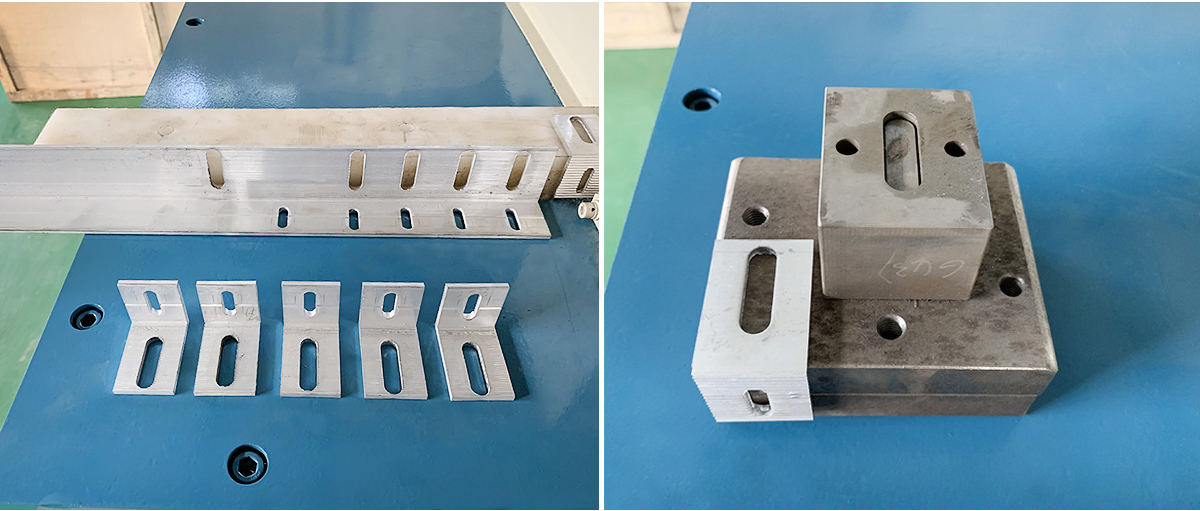

This machine is specially designed for automatic processing of various aluminum curtain wall pendants .
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it;Secondly,we will send you user manual or videos before you get the machine;Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional USMART-16 Curtain Wall Pendant (Marble Dry Pendant) Automatic Machine manufacturer,our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms:FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function.We can recommend the most suitable machine according to our experience.It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have.The machine was installed and debugged before delivery.You can use the machine directly after receiving it. Of course,we also can send us our technician to your country to install and debug.
