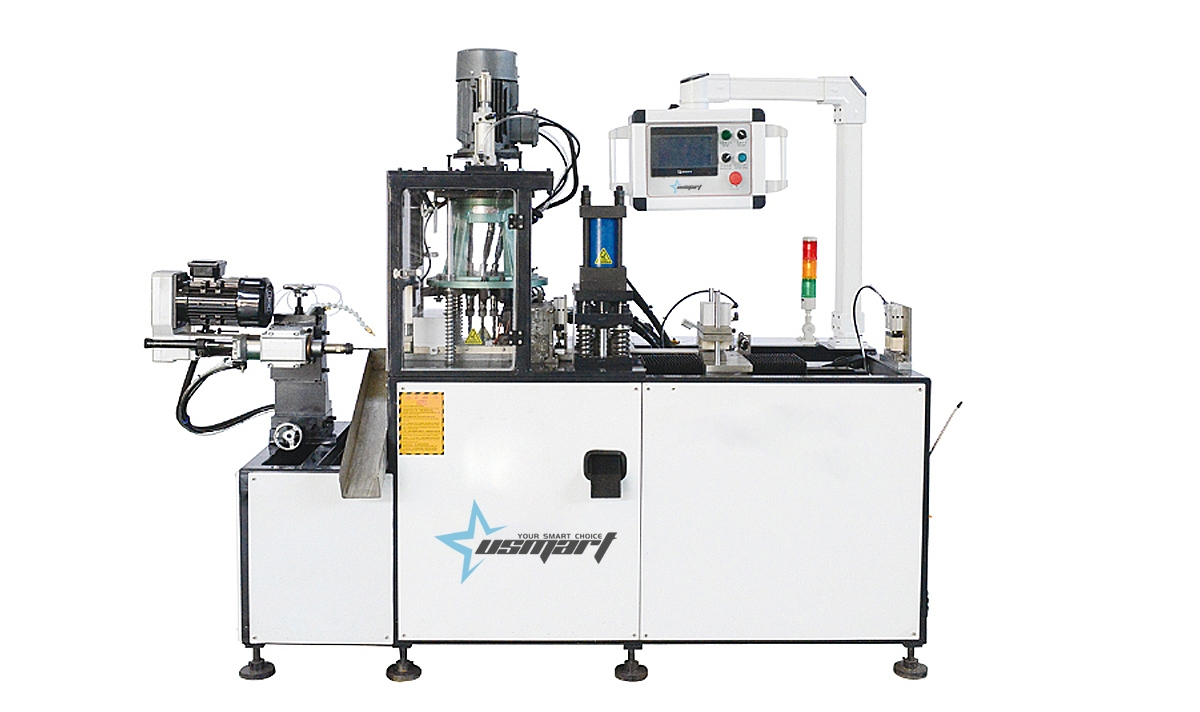

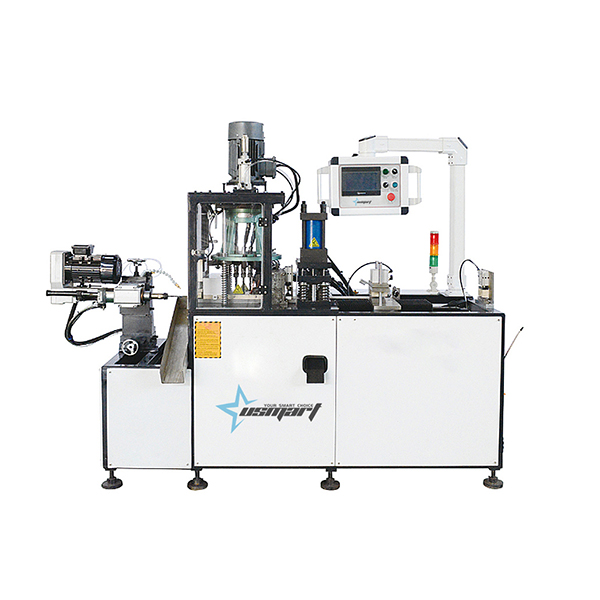

Product Information

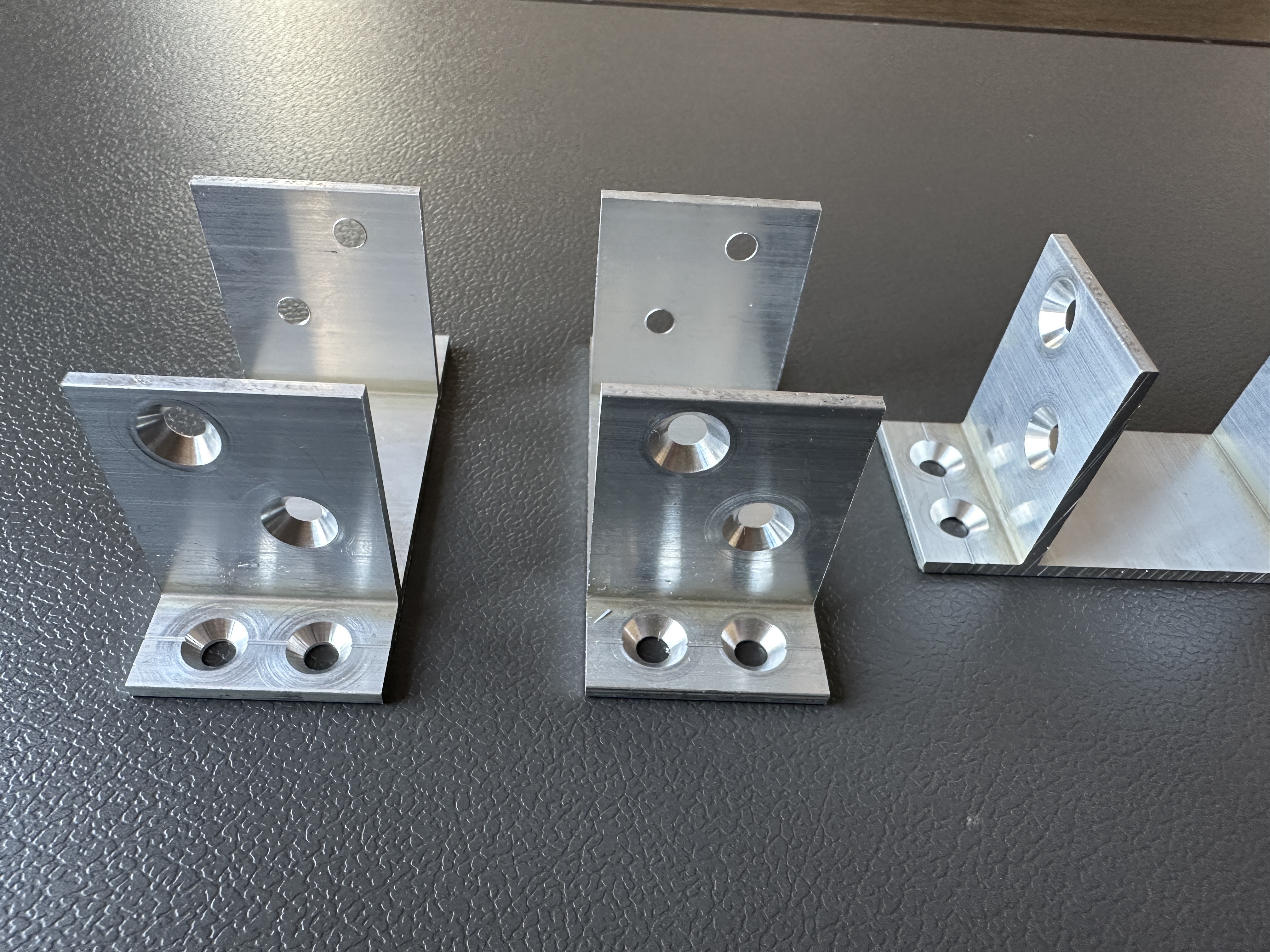

◎ This machine is suitable for automatic production and processing of aluminum block for fall protection rope for external casement windows. Simultaneously complete automatic feeding - punching - inverted and countersunk holes - cutting off - deep side holes. Machining rate: 10-20 times/min.
◎ One-time molding without secondary processing. It has high degree of automation of the whole machine, and can save labor cost. Standardized production can be realized, with a 95% qualification rate in mass production.
◎ Creative design of our company: two left and right aluminum blocks of a pair of fall protection rope aluminum blocks are processed by the same machine. There is no need to replace the die. Its excellent no-tailing technology will not waste aluminum profiles.
Technical Parameters
| Model | URT-54 |
| Input power | 380v 50hz 11.3kw |
| Working air pressure | 0.6-0.8mpa |
| Specification of saw blade: sawing motor | 305*100T 2.2kw |
| Hydraulic system | 3.7kw 10-15mpa |
| Chamfering deephole moto | 1.1kw |
| Net weight | 760kg |
| Overall dimensions | 2200*1000*1700 |
| Material rack | 2m*2 sections |
Detail Demonstration
This machine is suitable for automatic production and processing of aluminum block for fall protection rope for external casement windows.
Simultaneously complete automatic feeding - punching - inverted and countersunk holes - cutting off - deep side holes. Machining rate: 10-20 times/min.
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it; Secondly,we will send you user manual or videos before you get the machine; Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional USMART-54 Fall Protection Rope Aluminum Block Automatic Processing Machine manufacturer, our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW; Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function. We can recommend the most suitable machine according to our experience. It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also can send us our technician to your country to install and debug.
