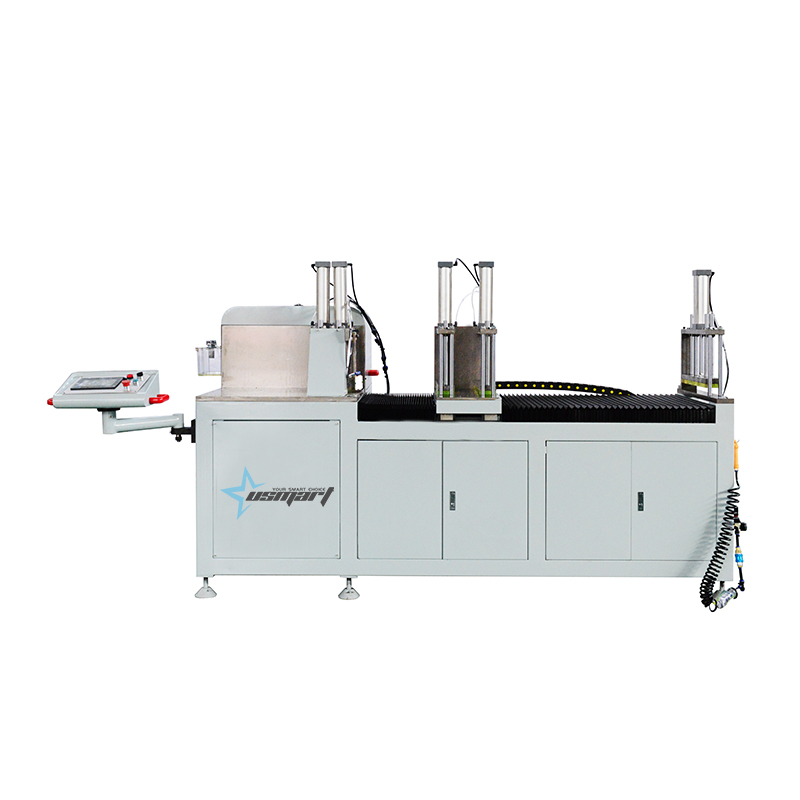

Product Information
◎ It is suitable for automatic cutting and processing of industrial aluminum profiles,photovoltaic aluminum profiles, curtain wall aluminum profiles, greenhouse aluminum profiles and various special-shaped aluminum profiles.
◎ Feed saw cutting is available with pneumatic-hydraulic conversion, hydraulic cylinder or servo motor + screw. Servo motor can precisely control the sawing width.
◎ Sawing motor adopts 5.5kw, 7.5kw, 11kw industrial motor, equipped with high precision spindle box, which is safe and efficient, with high torque and good sawing effect. The main components are cast iron parts, and the skeleton shall be milled after aging, with good stability.
◎ The feeding length of sawing can be adjusted. The servo motor is used for feeding with accuracy of ±0.11mm.
◎ Customized sawing width, sawing height, sawing length can be made according to customer's requirements.
Technical Parameters
| Model | URT29-455-CNC |
| Input power | 380V 50hz 6.5Kw |
| Working air pressure | 0.6-0.8MPa |
| Specification of saw blade | 455*25.4*100T |
| Sawing length | 4-650mm |
| Cutting width*height | 260*120mm |
| Workbench area | 660*680mm |
| Net weight | 860kg |
| Overall dimensions | 2200*900*1700mm |
Detail Demonstration

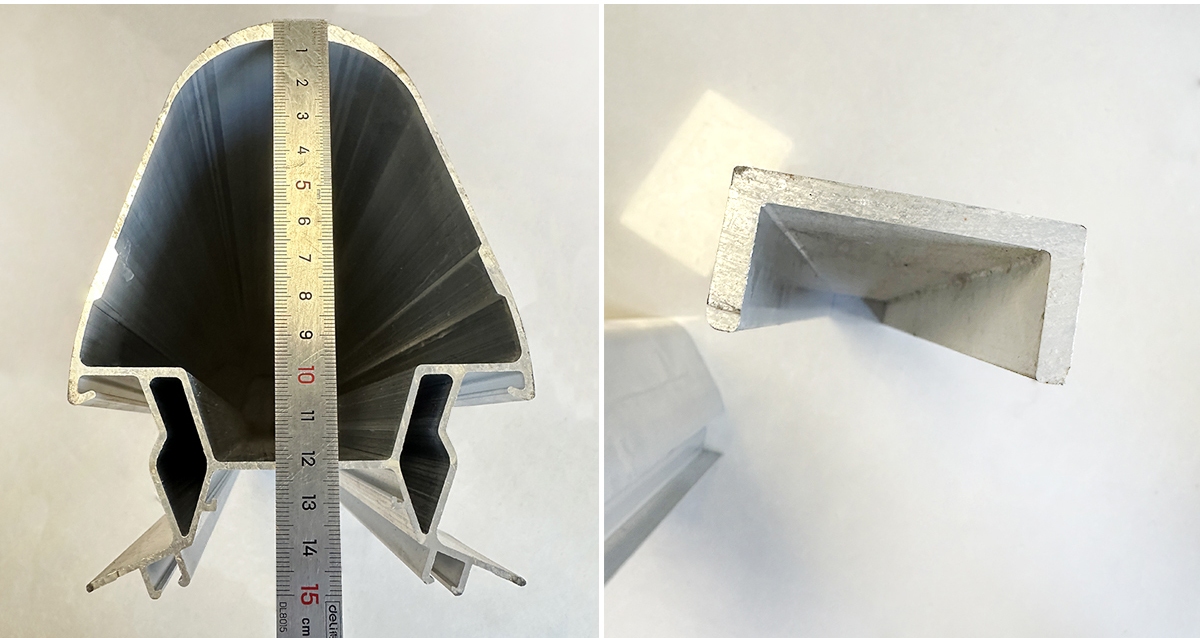

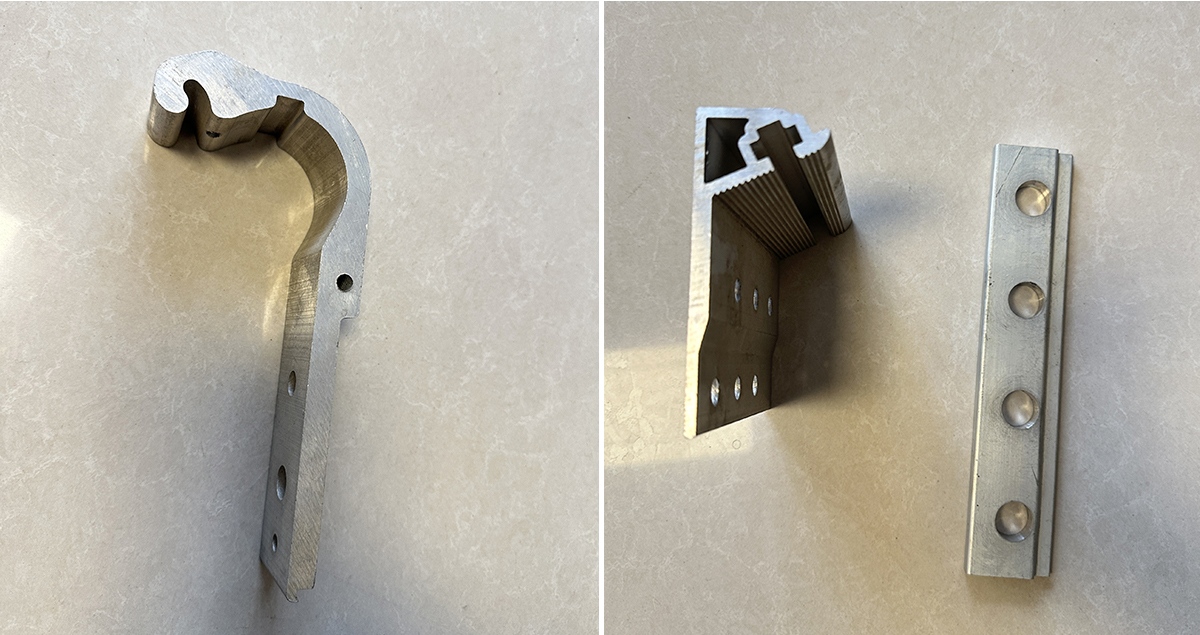

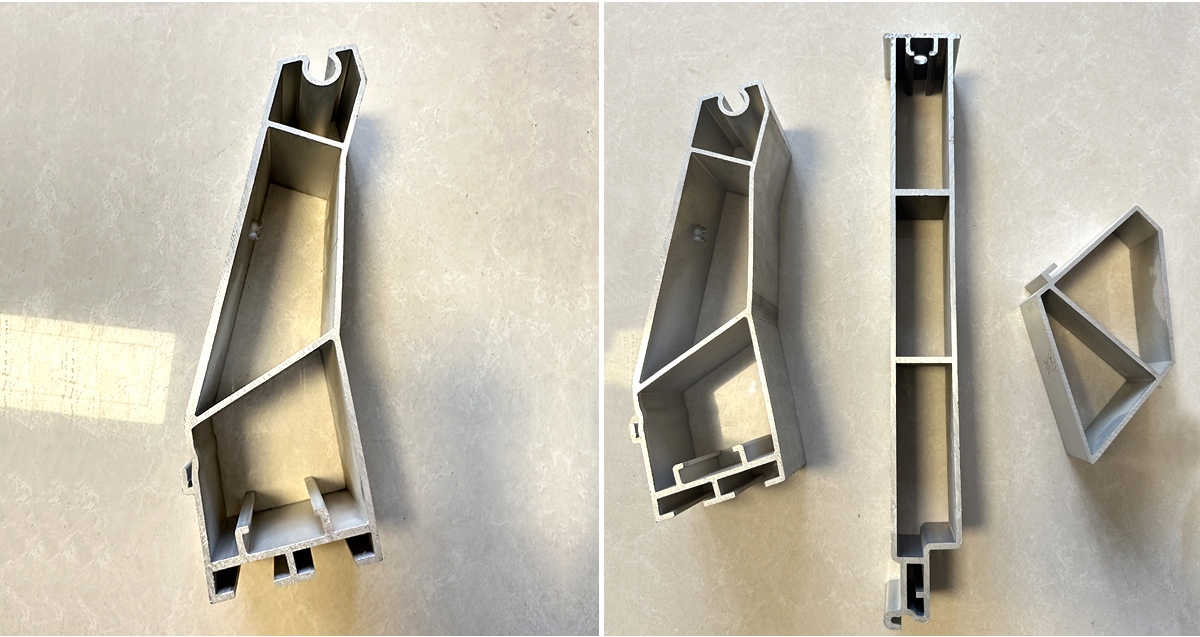

It is suitable for automatic cutting and processing of various industrial aluminum profiles: aluminum pipe, aluminum bar, aluminum radiator, aluminum hanger, aluminum motor housing, etc.

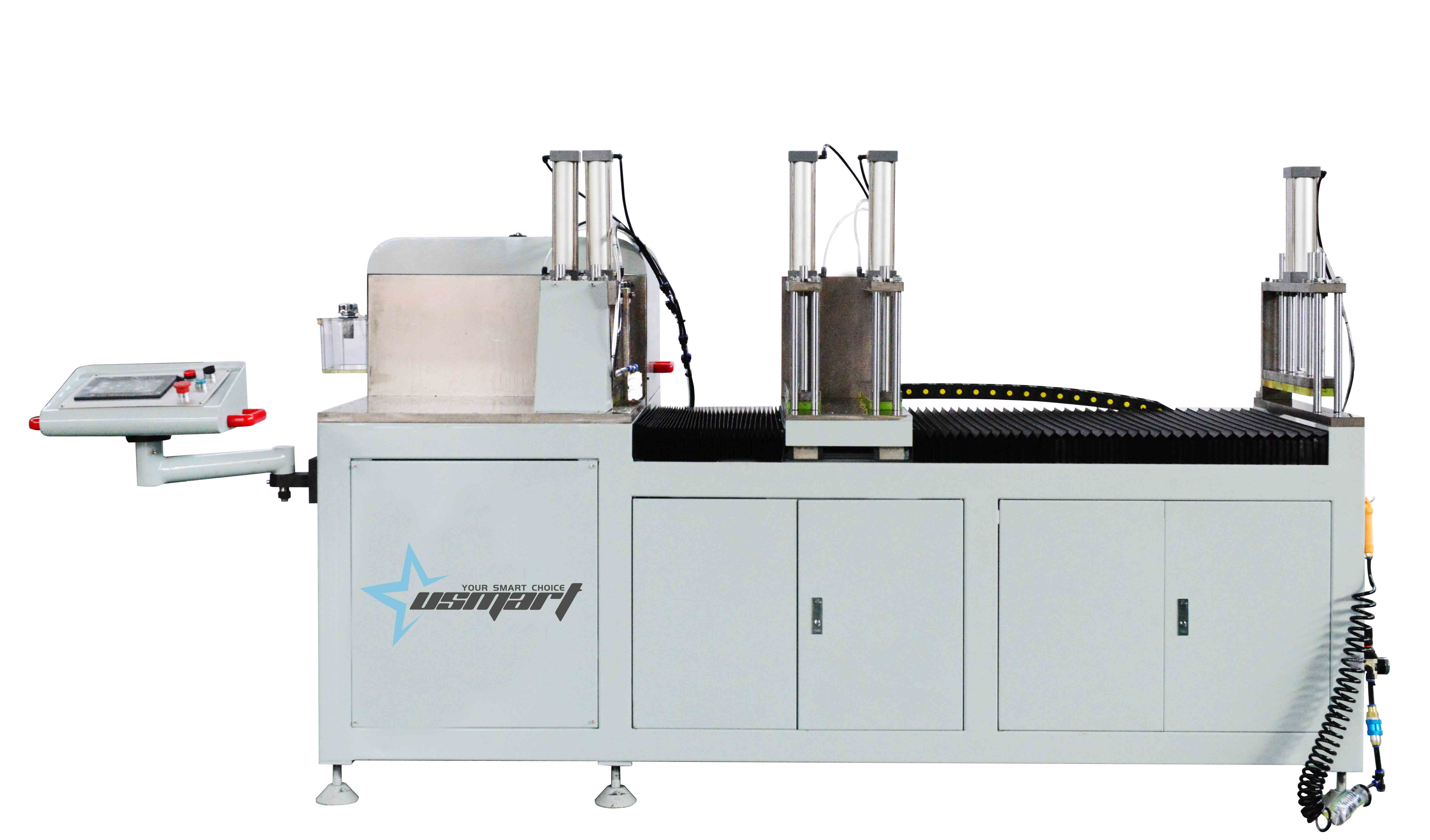

Cast iron ultra-wide workbench ensures flatness of workpiece, servo motor drives ball screw feeding. One feeding stroke up to 650 mm, it can also be customized according to customer requirements for sawing width, height and length of one cut. Sawing height is in front of the table, which is easy to adjust. The sawing feed uses oil-hydraulic conversion, which is smooth and high precision. Sawing motor is 5.5kw industrial grade motor, with high sawing accuracy and high speed.
Gantry clamping is suitable for most industrial aluminum parts, and custom clamping devices can be made to fit the shape of the workpiece.
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it;Secondly,we will send you user manual or videos before you get the machine;Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional USMART29-455-CNC Industrial Aluminum Profiles Automatic Sawing And Cutting Machine manufacturer,our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms:FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function.We can recommend the most suitable machine according to our experience.It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have.The machine was installed and debugged before delivery.You can use the machine directly after receiving it. Of course,we also can send us our technician to your country to install and debug.
