Product Information

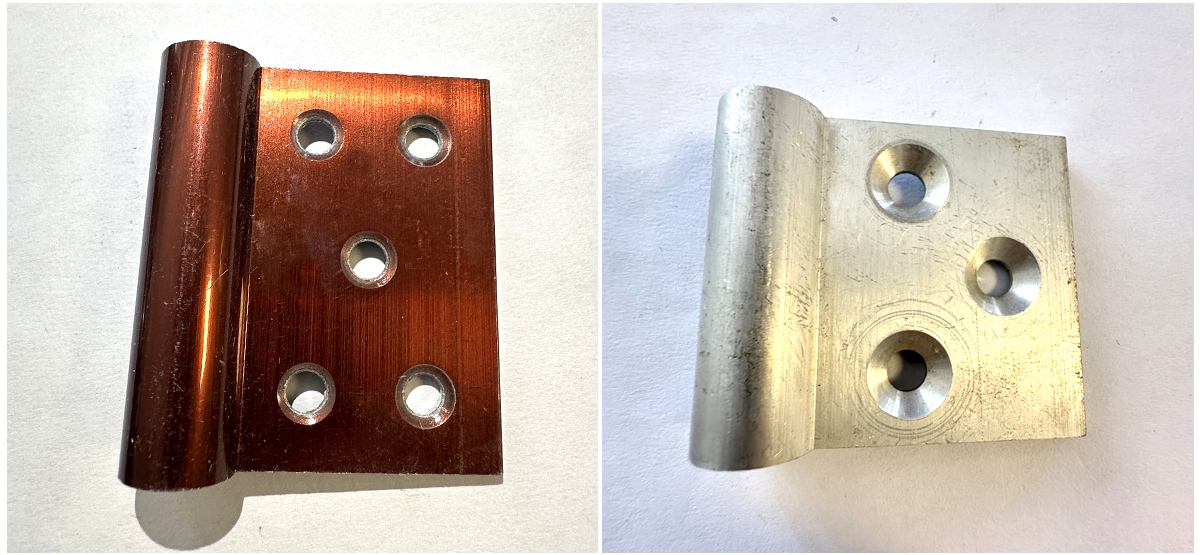

◎ This machine is suitable for automatic production and processing of aluminum hinges for titanium-magnesium alloy flush doors.
◎ Simultaneously complete automatic feeding - punching - (processing arc R angle) chamfering and countersinking - cutting, processing hinge fast and efficient.
◎ Production rate per minute: 15-25 pieces. One-time molding without secondary processing. Automatic and intelligent.
◎The model adheres to our usual design philosophy: people-oriented. It has high working efficiency and can save labor cost. Its excellent no-tailing technology will not waste aluminum profiles.

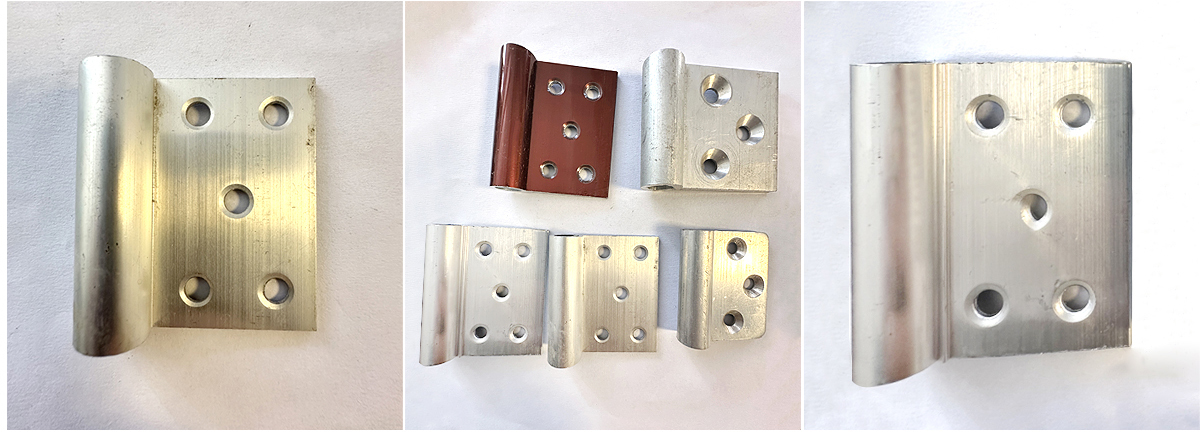

◎ It is the best model for mass production of 30&35 40&45 50&55 hinges.
Technical Parameters

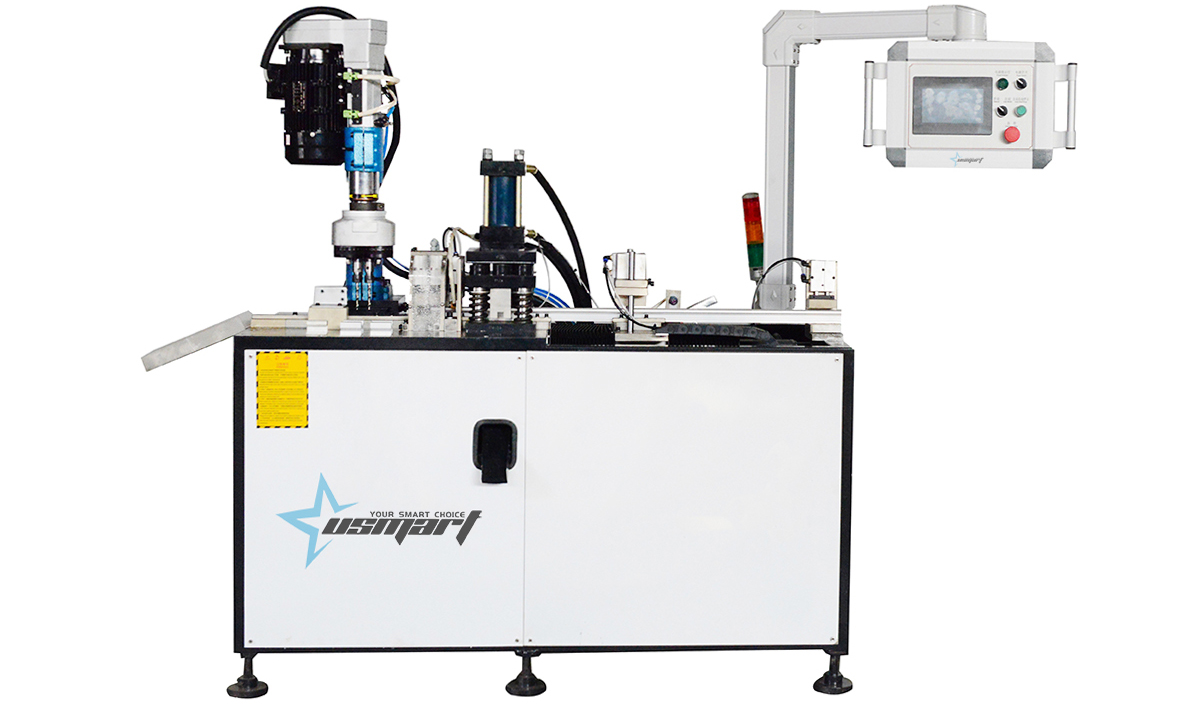

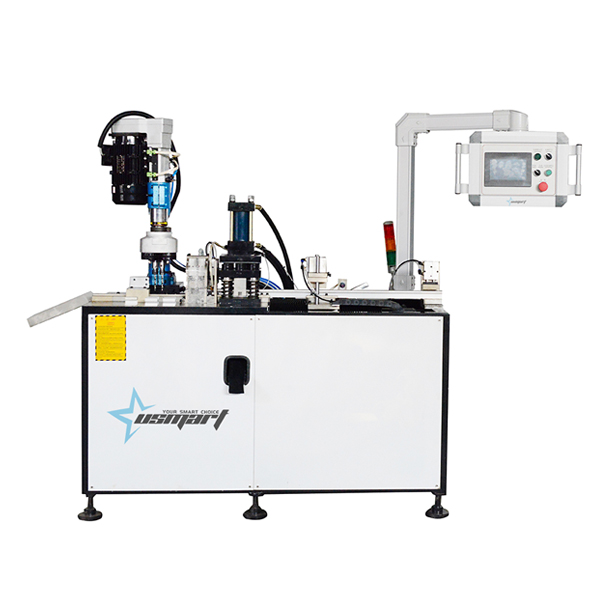

| Model | URT-04 |
| Input power | 380V 50hz 8kw(servo feeding) |
| Working air pressure | 0.6-0.8mpa |
Oil pump pressure | 10-15mpa |
| Oil tank volume | 60L |
| Motor power of oil pump | 13.7kw-4kw |
| Specification of saw blade | 305*254*100T |
| Overall dimensions | 1800*1000*1700 |
| Overall dimensions | 2000*1500*1700mm |
| Net weight | 660kg |
Detail Demonstration
Production rate per minute: 15-25 pieces. One-time molding without secondary processing. Automatic and intelligent.
This machine is suitable for automatic production and processing of aluminum hinges for titanium-magnesium alloy flush doors.
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it;Secondly,we will send you user manual or videos before you get the machine;Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional USMART-04 30&45 (40&45 50&55) Hinge Automatic Processing Machine manufacturer,our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms:FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function.We can recommend the most suitable machine according to our experience.It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have.The machine was installed and debugged before delivery.You can use the machine directly after receiving it. Of course,we also can send us our technician to your country to install and debug.
