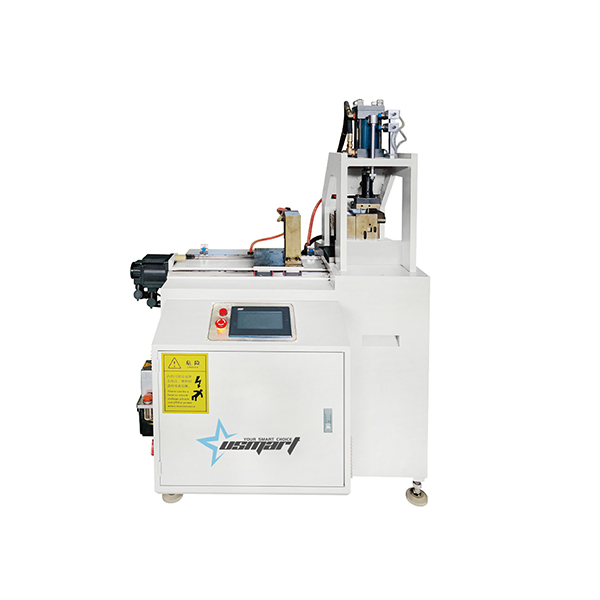

Product Information
◎ This machine is suitable for automatic feeding punching and shearing of aluminum profiles, mainly for automatic punching and breaking of corners. The product punching and shearing is completed at one time.
◎ Punching and shearing is powered by hydraulic pressure, and the mechanical punching and cutting position is equipped with 3 sets of cylinders in different directions, which can complete the multi directional processing of products at one time.
◎ Continuous punching and shearing is possible with one loading. Part of the product length, hole distance, and number of punching holes can be set arbitrarily. It is possible to save several specifications to the system.
◎ Clean punching and cutting without waste, which can greatly reduce the waste of profiles. Better cost savings.
◎ The feeding table is guided by linear guide rails and driven by servo motor with ball screw, and controlled by system program. Touch screen is used to operate and display.
◎ Simple and quick operation, fast and efficient, especially suitable for mass production, achieving time and labor saving optimization.
Technical Parameters
| Machine weight | 600kg |
| Feeding length | 0-500mm |
| Overall dimension (LXWXH) | 4600mmX 900mmX1600mm |
| Punching thickness | 1-4mm |
| Oil tank capacity | 40L |
| Diameter of oil cylinder | C 80X1 C63X2 |
| Rated pressure of oil pump | 16mpa |
| Operating voltage | 380V 50Hz |
| Maximum impulse force | 8T |
| Feeding servo motor power | 1.1kw-1.8kw |
| Maximum impact stroke | 50mm |
| Motor power of oil pump | 3.7kw |
| Switchboard power | 5kw |
| Working air pressure | 0.6-0.8mpa |

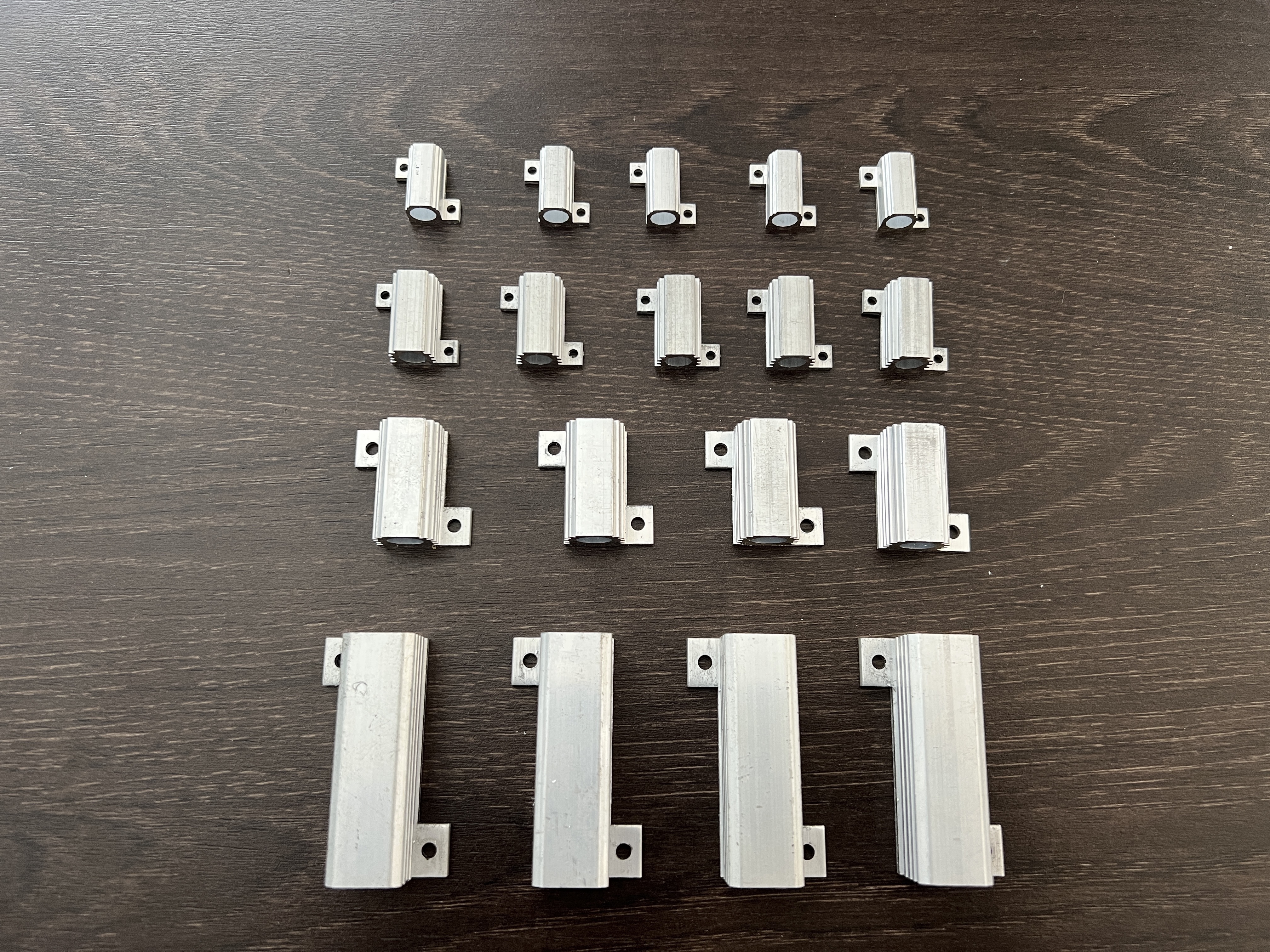

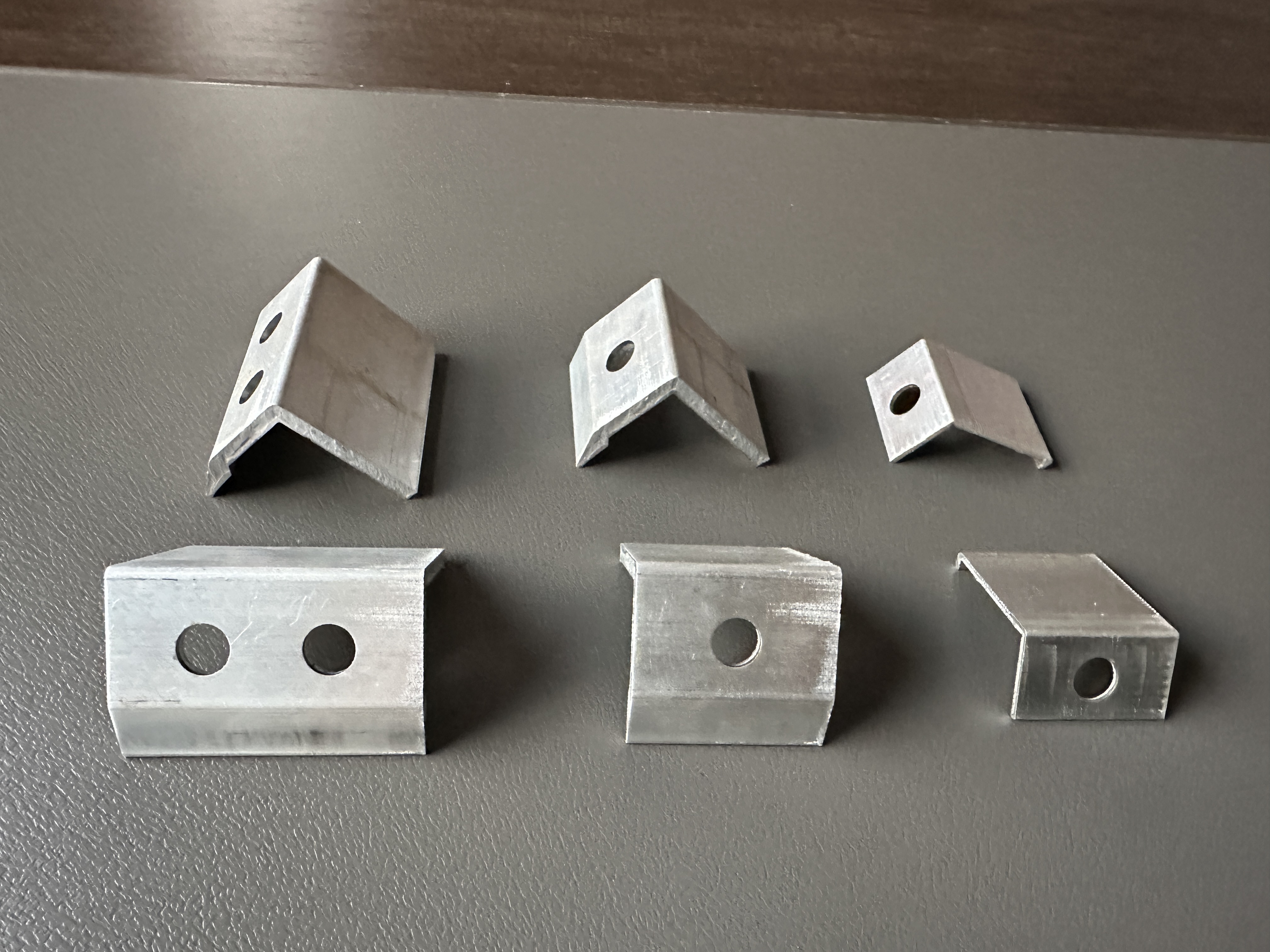

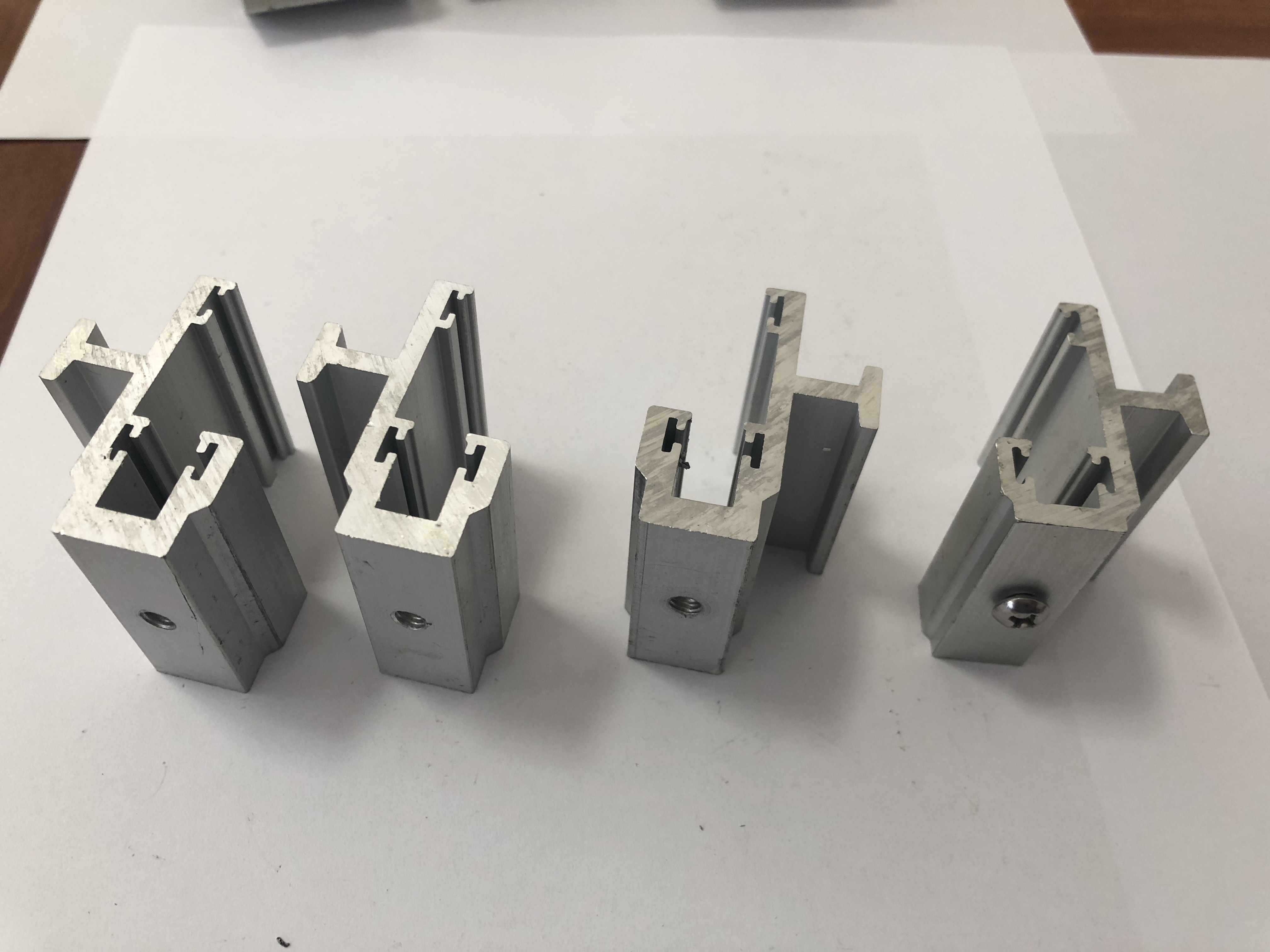

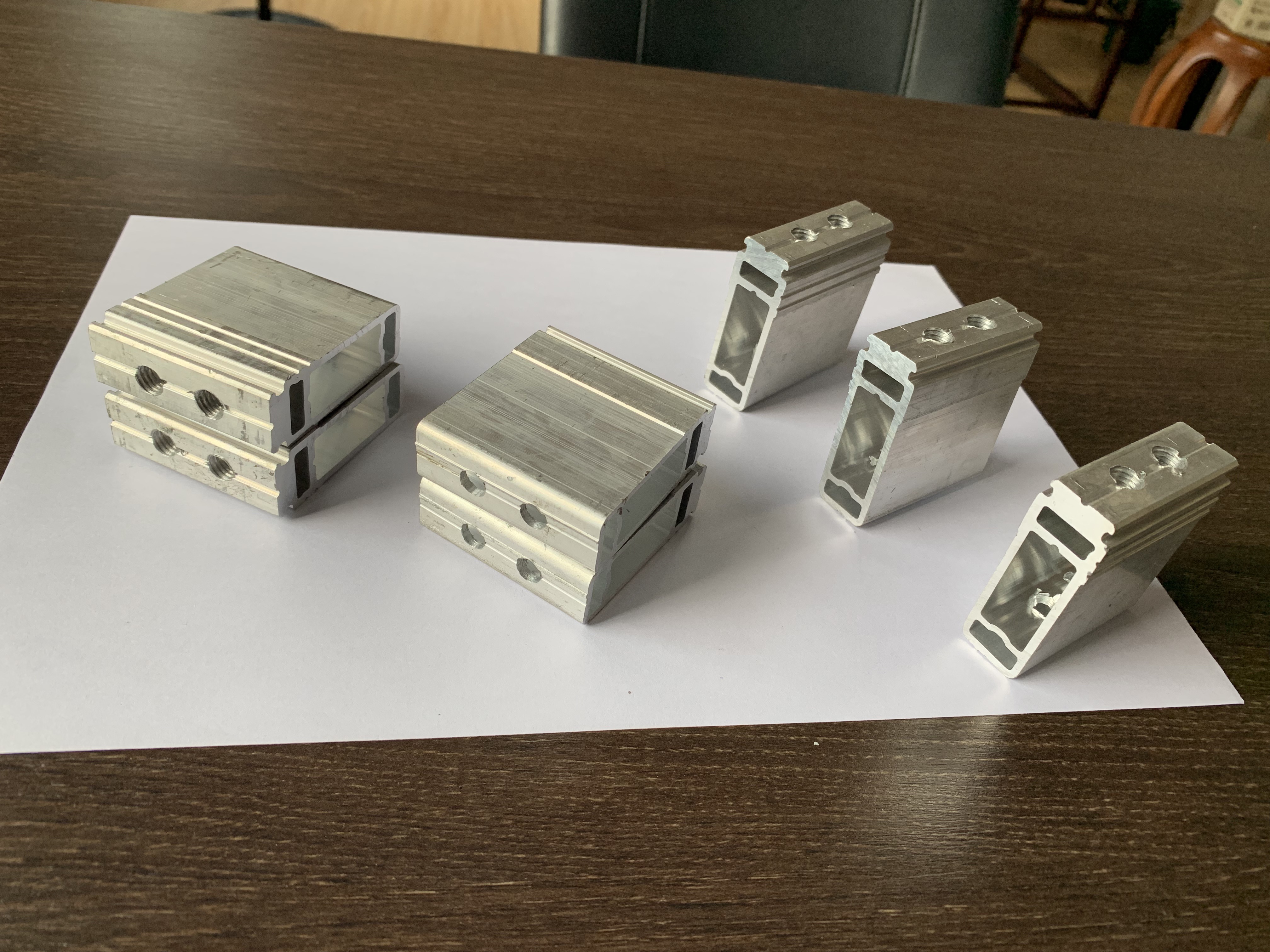

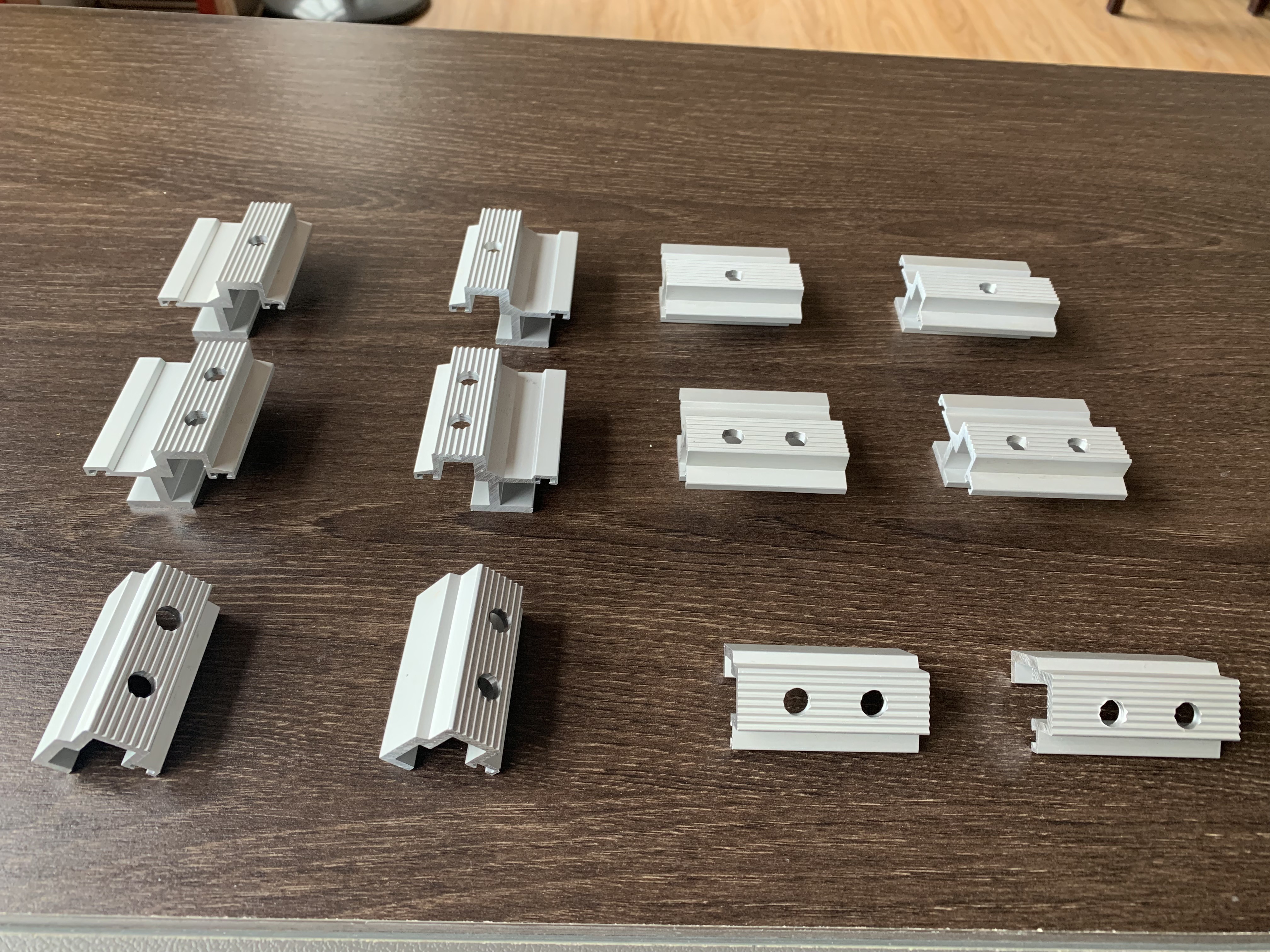

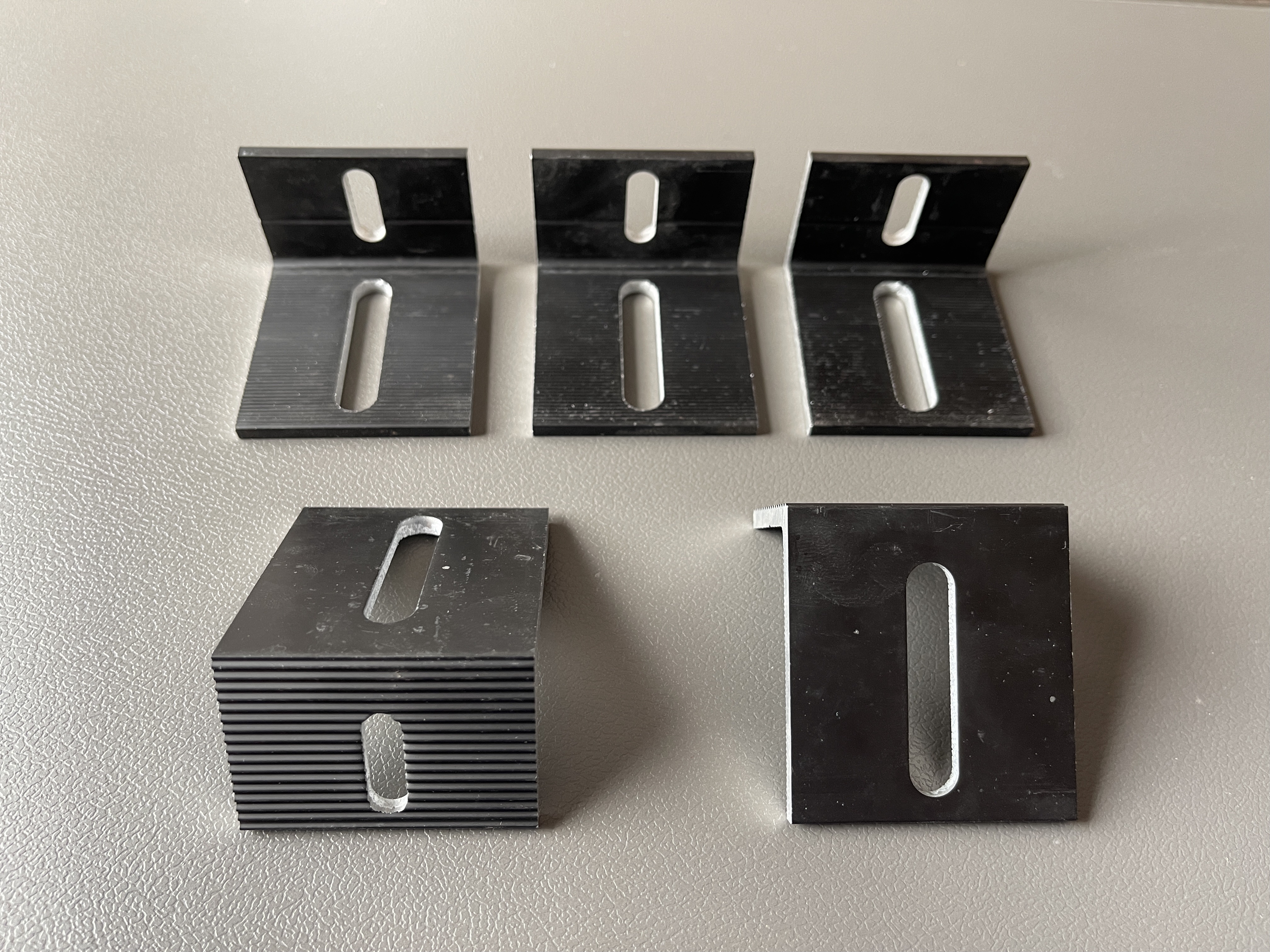

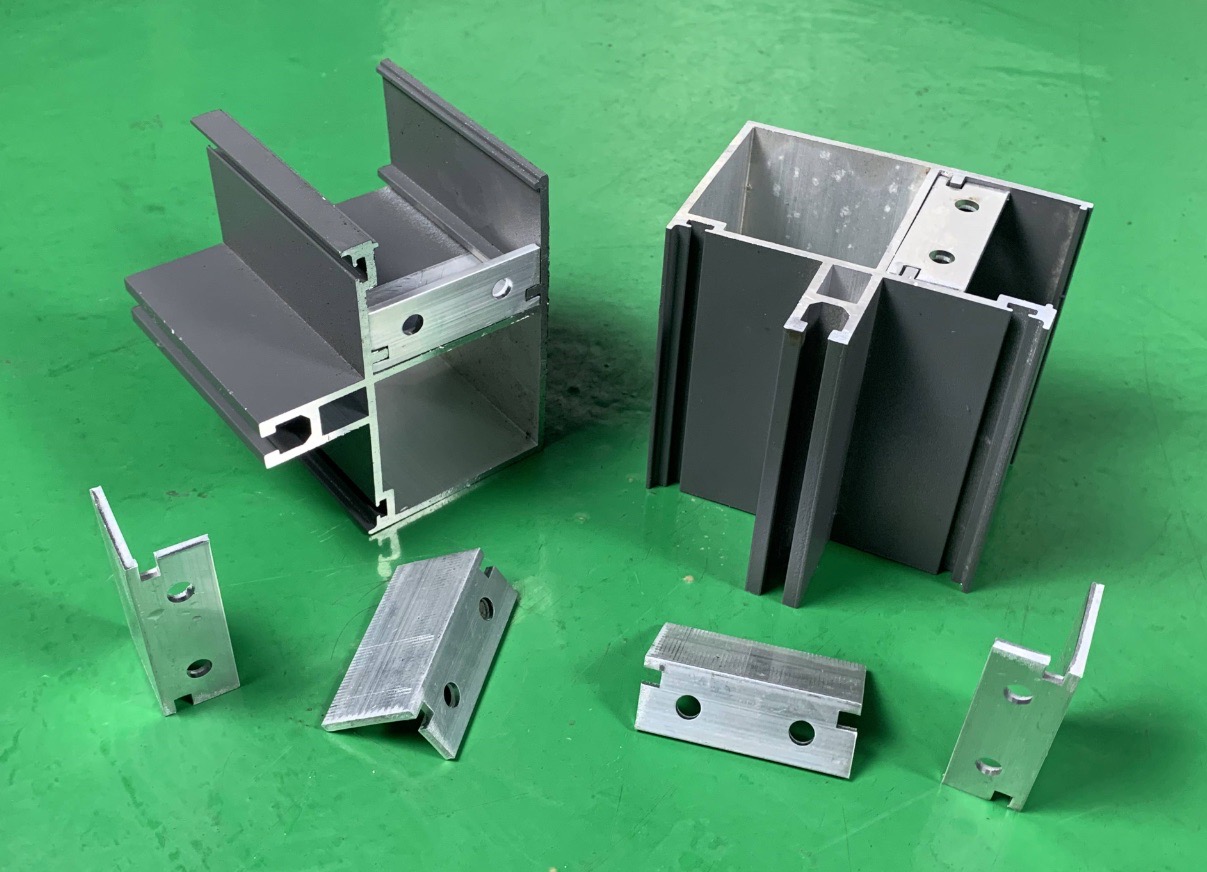

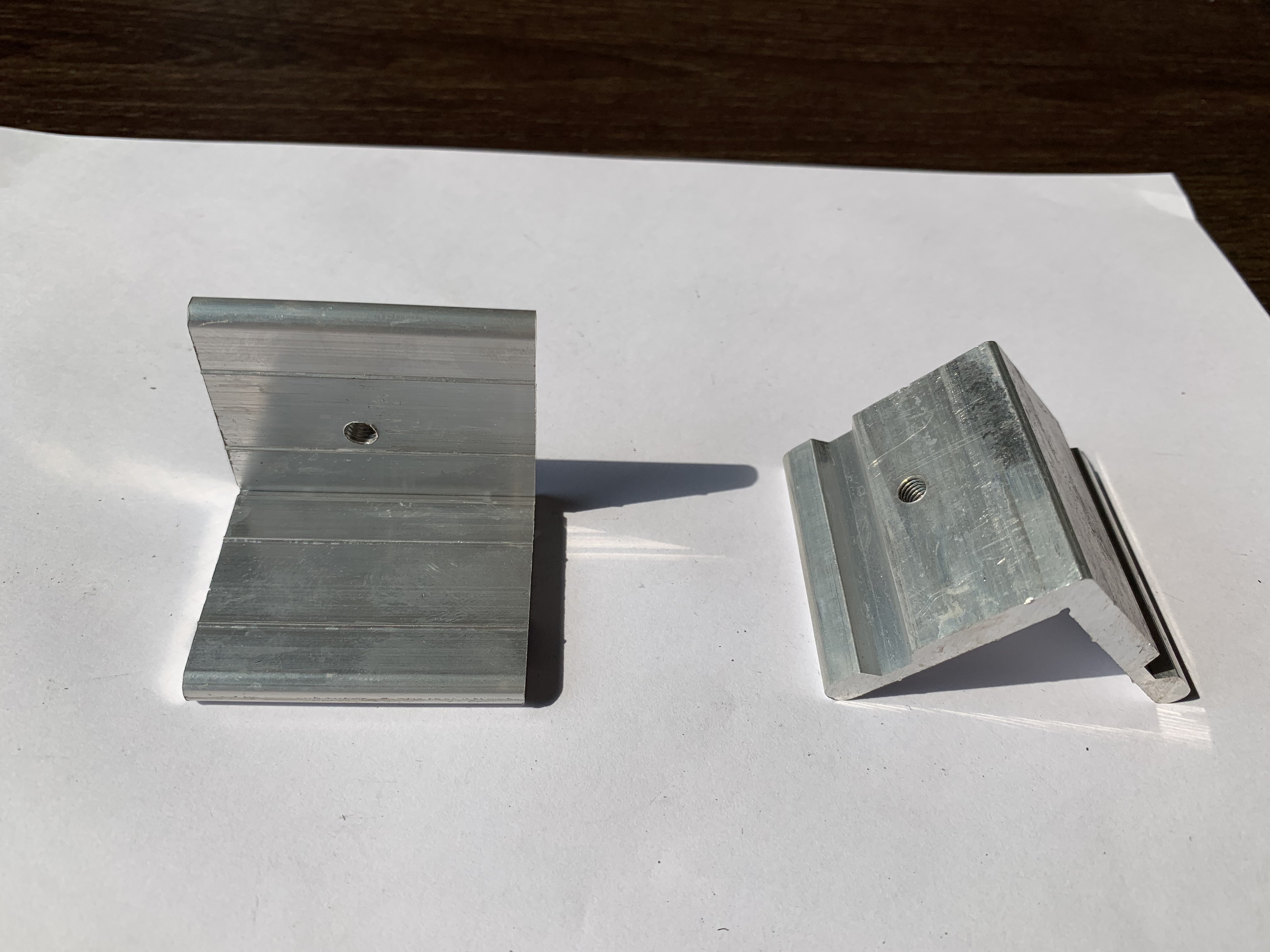

Detail Demonstration
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it;Secondly,we will send you user manual or videos before you get the machine;Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional USMART-32 Aluminum Profile CNC Automatic Feeding Punching And Shearing Machine manufacturer,our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms:FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function.We can recommend the most suitable machine according to our experience.It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have.The machine was installed and debugged before delivery.You can use the machine directly after receiving it. Of course,we also can send us our technician to your country to install and debug.
