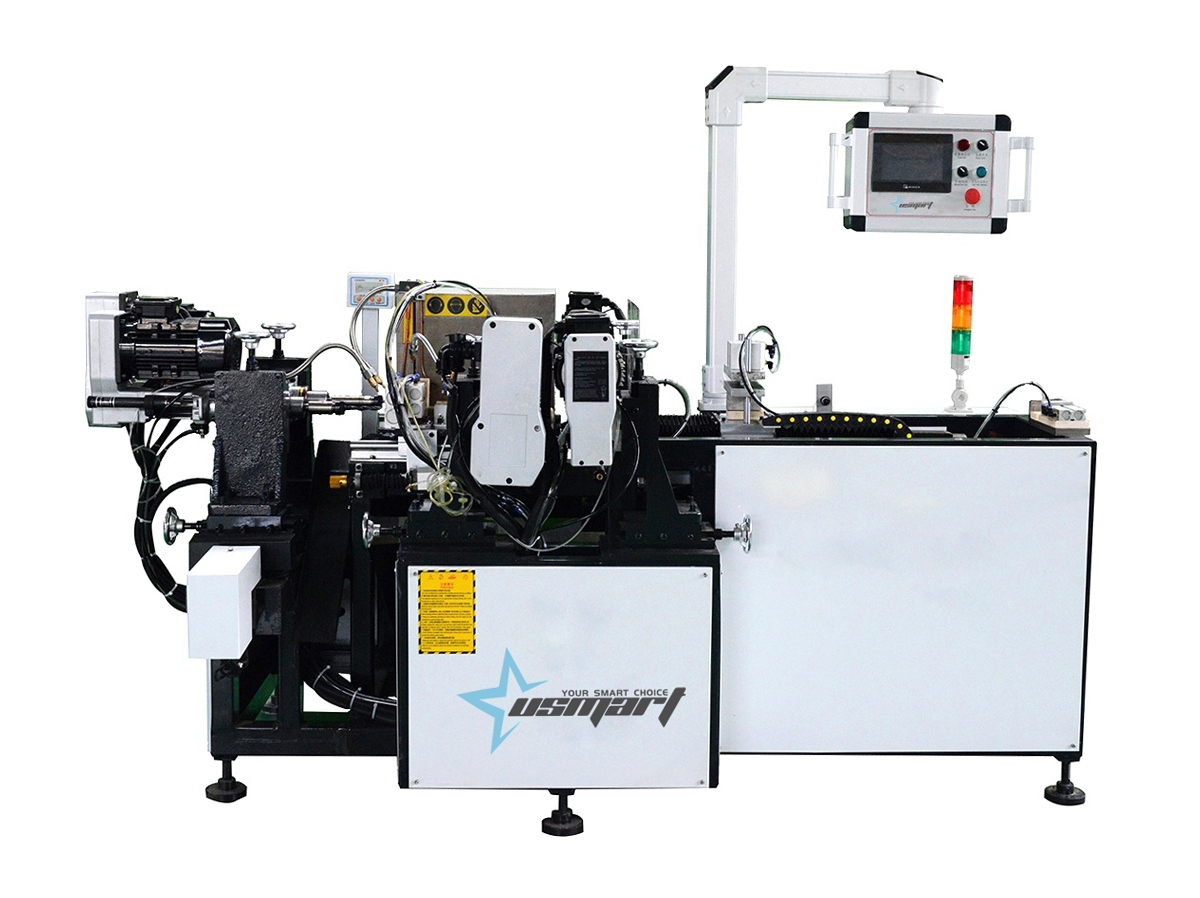

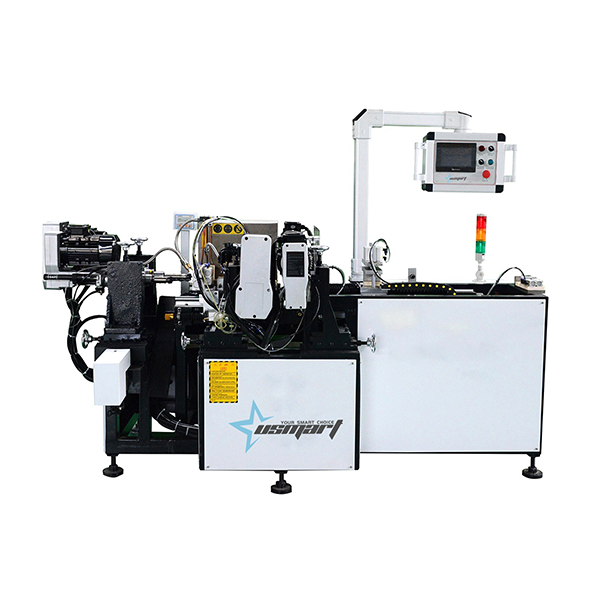

URT-27F Non-standard European standard Center Column Corner Automatic Machine

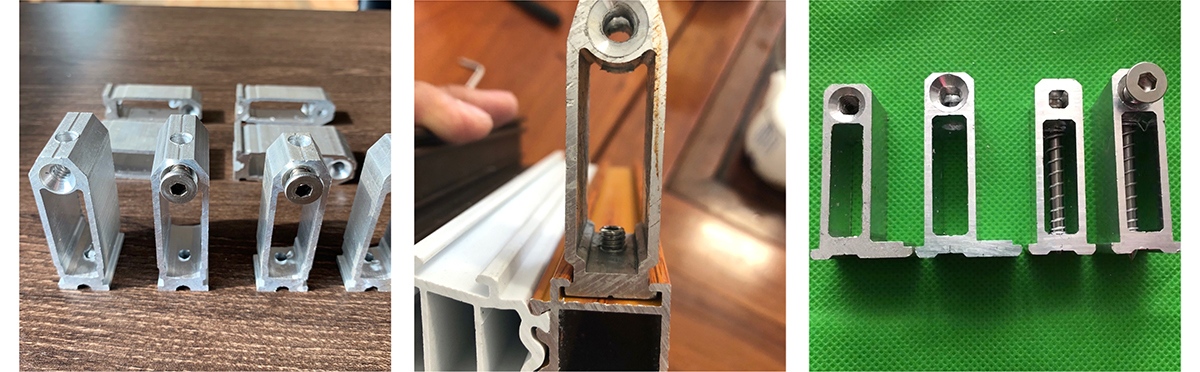

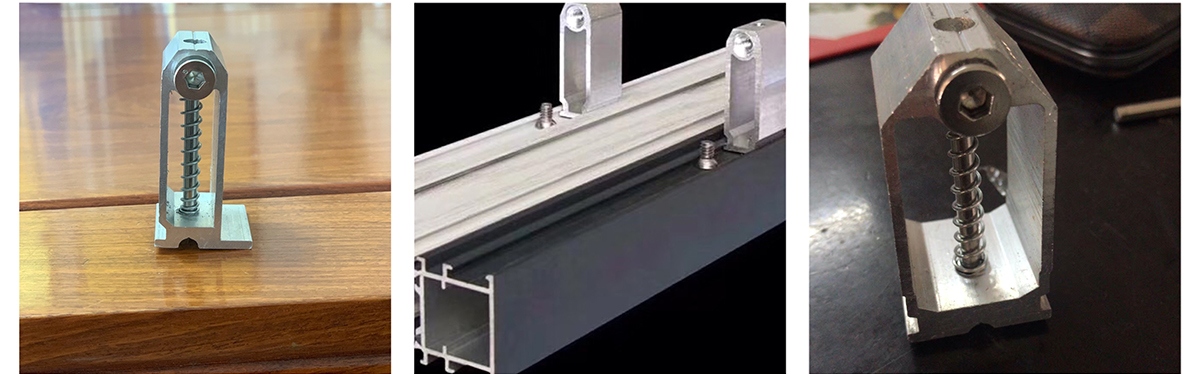

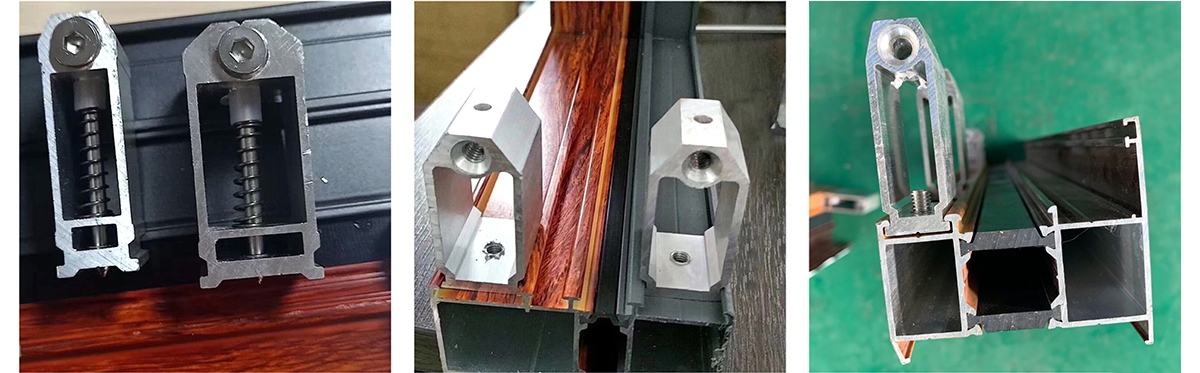

◎ Our company has invented the non-standard European standard universal center column corner automatic machine to meet the market demand. It can process both nonstandard model center column corner and European standard center column corner.

◎ Non-standard center column corner processing sequence: Servo feeding - corner upper and lower drilling - bottom tapping - cut off - side top reaming - side top tapping - drop; European standard center column corner processing sequence: servo feeding - corner upper and lower drilling - bottom tapping - cut off - drop. Any step of the action can be closed in the touch screen. (For example: when processing non-standard corner, you can close the bottom tapping of the corner alone to process the spring pin center column corner, and open the bottom tapping to process the non-standard center column corner with the forbidden screw in the bottom. All actions are processed at the same time, with high degree of automation).

◎ The model adheres to our usual design philosophy: people-oriented. It has high working efficiency and can save labor cost. Its excellent no-tailing technology will not waste aluminum profiles. This machine has a self-test function, when it fails, the alarm light beeps red and you can troubleshoot according to the text prompt on the touch screen.

◎ Production rate: 6-10 pieces/min for non-standard center column corner. 10-15 pieces/min for European standard center column corner.

  Our company has invented the non-standard European standard universal center column corner automatic machine to meet the market demand. It can process both non  standard model center column corner and European standard center column corner.

Non-standard center column corner processing sequence: Servo feeding - corner upper and lower drilling - bottom tapping - cut off - side top reaming - side top tapping - drop; European standard center column corner processing sequence: servo feeding - corner upper and lower drilling - bottom tapping - cut off - drop. Any step of the action can be closed in the touch screen. (For example: when processing non-standard corner, you can close the bottom tapping of the corner alone to process the spring pin center column corner, and open the bottom tapping to process the non-standard center column corner with the forbidden screw in the bottom. All actions are processed at  the same time, with high degree of automation).

●How To Use The Machine After Receving The Machine?

Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it; Secondly,we will send you user manual or videos before you get the machine; Thirdly,our professional technician online teach you until you can use it well by yourself.

●Why Should You Buy From Us Not From Other Suppliers?

We are professional USMART-27F Non-standard European standard Center Column Corner Automatic Machine manufacturer, our service as below:

1.Factory supply directly

2.12 months warranty for the whole machine

3.Friendly English version manual and operation video

4.Engineer available to service machinery overseas

●What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW; Accepted Payment Currency:USD,EUR,CNY...

●How To Choose A Suitable Machine?

You can tell us your aluminum profile size and the request of machine function. We can recommend the most suitable machine according to our experience. It also can be customized according to your requirements.

●Do You Have A Setup And Equipment Commissioning Service?

Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also can send us our technician to your country to install and debug.
