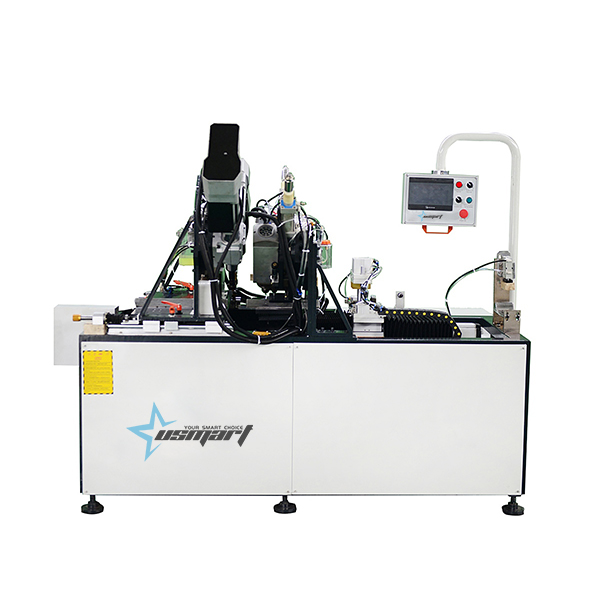

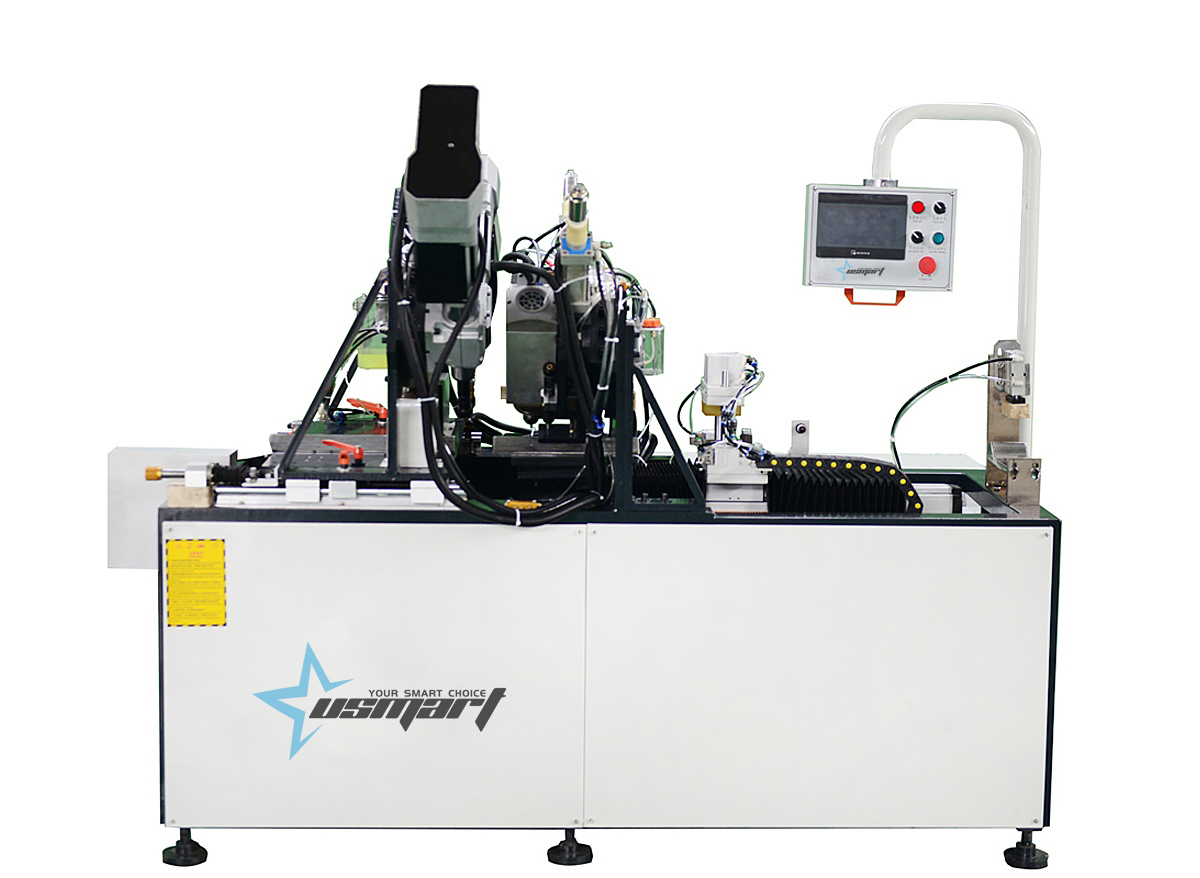

URT-39 Simple Glue Injection Expansion Corner Automatic Machine

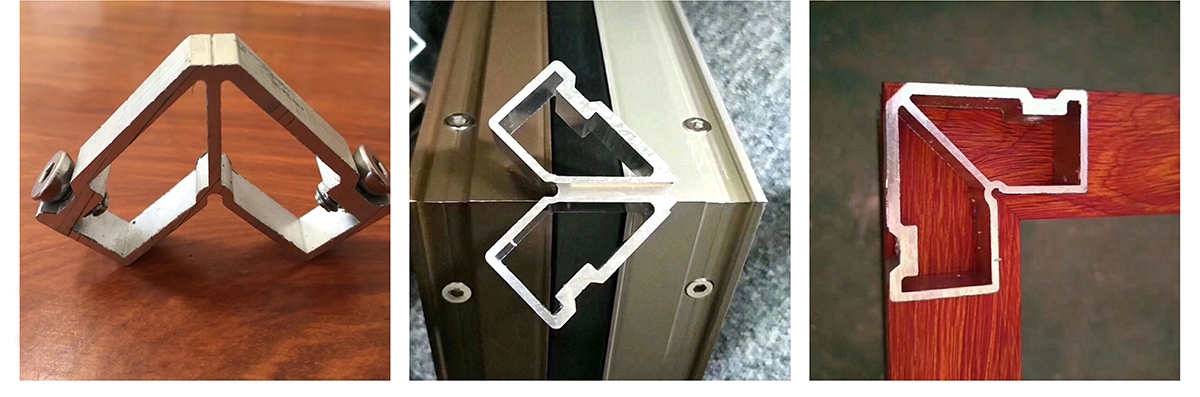

◎ This model is specially designed for automatic processing of frame fan with: Simple corner, simple glue injection corner, and expanded corner.

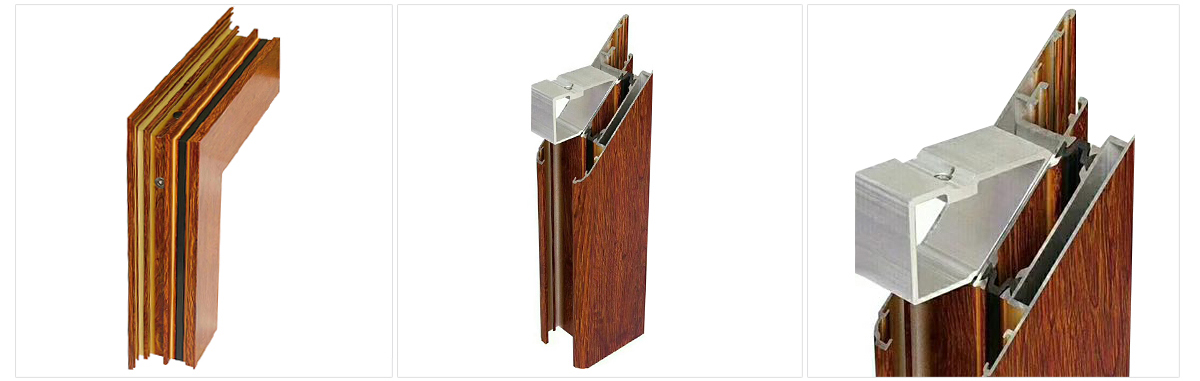

◎ Simple glue injection corner has the features of simple assembly, low cost and simple site construction.

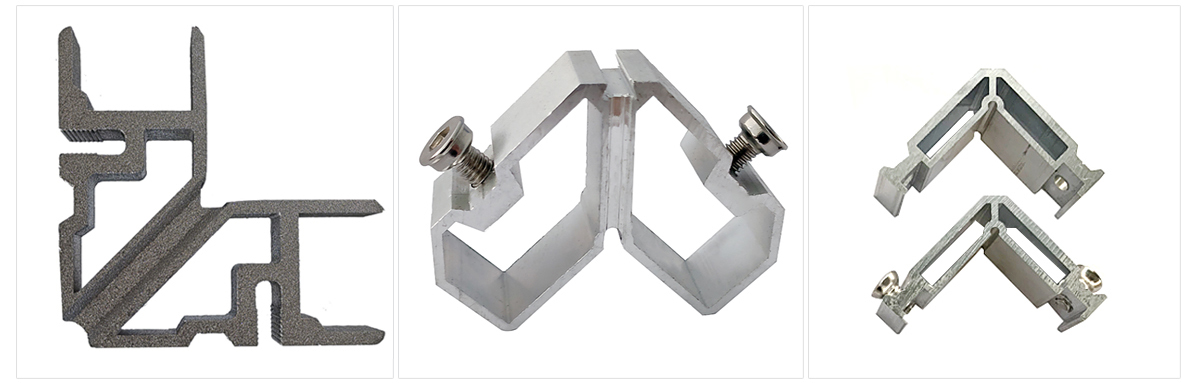

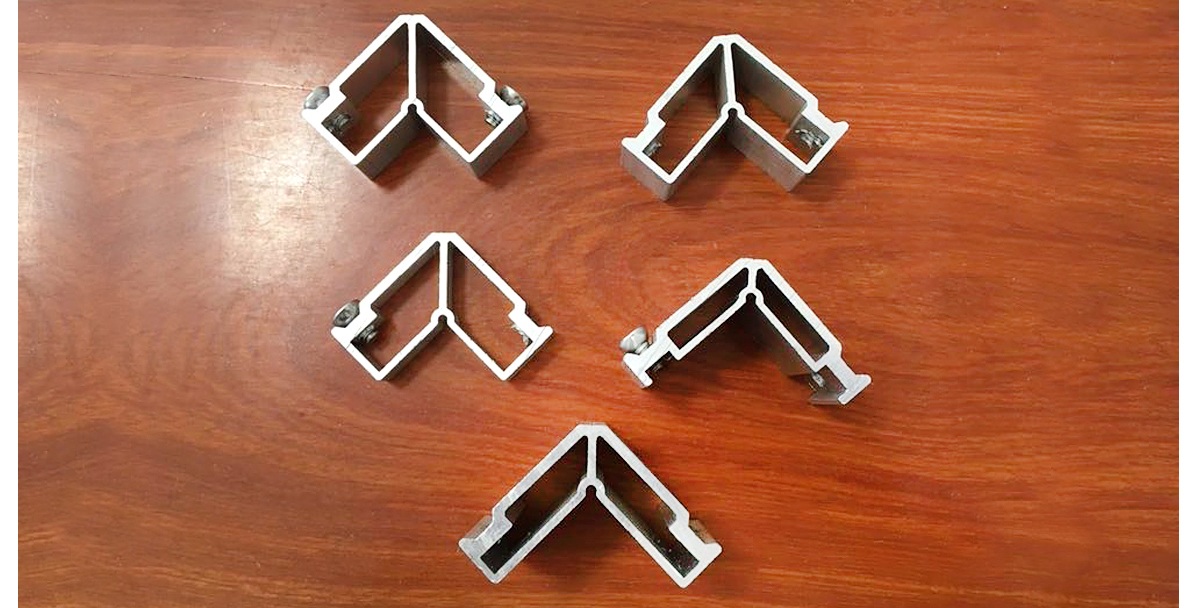

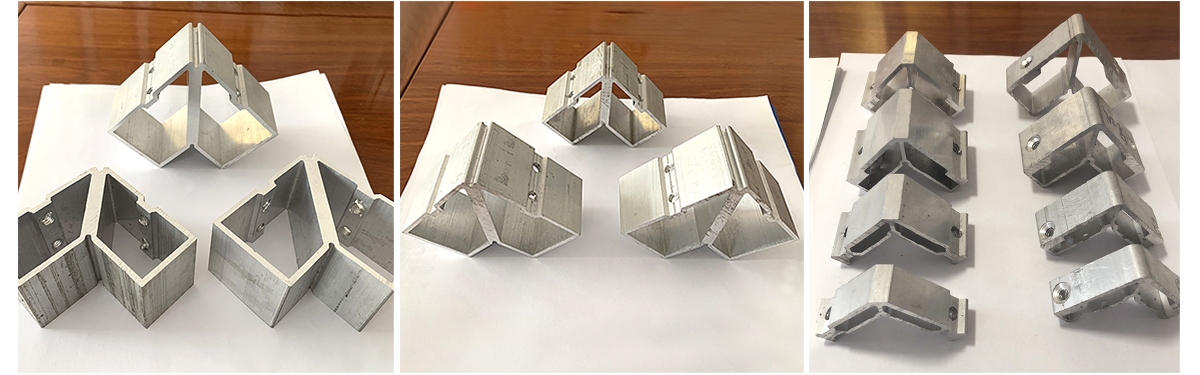

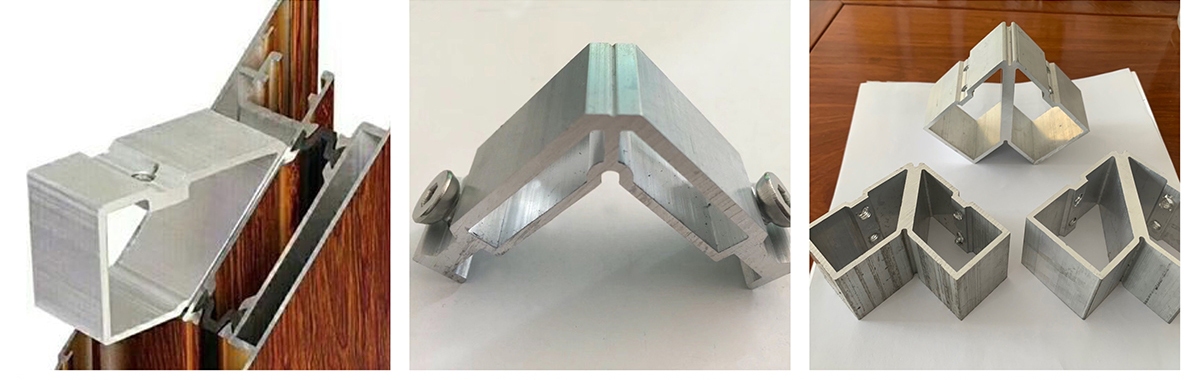

◎ In order to meet the market demand, the machine has been innovated with the following features: spindle drilling - servo tapping - saw blade cutting to achieve a variety of types of corner, a variety of height corner universal machine. At present, the machine can produce: 2 holes simple corner, 4 holes simple corner, expansion corner, achieving 3 purposes for 1 machine.

◎ The machine can process any simple glue injection corner between 3 and 45 mm in height without mould. The machine has gained good recognition and won the praise of customers once it was put on the market.

◎ The model adheres to our usual design philosophy: people-oriented. It has high working efficiency and can save labor cost. Its excellent no-tailing technology will not waste aluminum profiles, helping customers to achieve: automation, standardization, batching and simple production.

◎ Production rate per minute: 10-22 pieces. It is the star model for mass production of simple corner.

Detail Demonstration

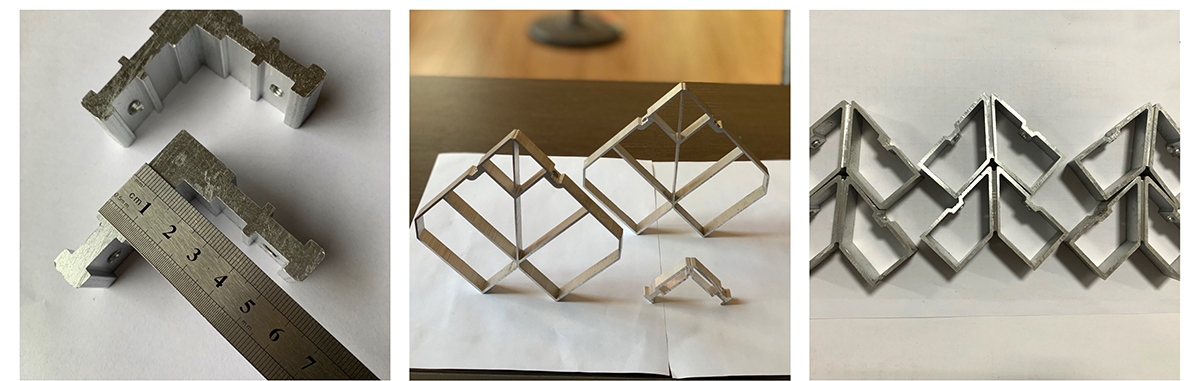

 This model is designed for the automatic production and processing of extremely narrow corners for extremely narrow doors and minimalist doors.

Extremely narrow corner generally has 2-9 screws on one side. The arrangement of the screws on one side of the extremely narrow corner is irregular..

The drilling spindle motor is driven by servo motor to move up and down to precisely control the drilling position. Also use servo motor to drive the tapping power head assembly up and down to complete accurate tapping. This machine is an 8-axis CNC automatic machine.

This machine has N+ types of built-in programming: it can produce many types of extremely narrow corners. Currently the built-in program can produce: 2 holes-18 holes corner, simple corner, expansion corner, achieving 3 purposes for 1 machine.

The machine can store 30 sets of corner data, and it is convenient to produce when the machine is called up. Its excellent no-tailing technology will not waste aluminum profiles, helping customers to achieve: automation, standardization, batching and simple production.

  Production rate: 5-15 extremely narrow corners per minute (depending on the number of corner holes and width)

●How To Use The Machine After Receving The Machine?

Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it;Secondly,we will send you user manual or videos before you get the machine;Thirdly,our professional technician online teach you until you can use it well by yourself.

●Why Should You Buy From Us Not From Other Suppliers?

We are professional USMART-39 Simple Glue Injection Expansion Corner Automatic Machine manufacturer,our service as below:

1.Factory supply directly

2.12 months warranty for the whole machine

3.Friendly English version manual and operation video

4.Engineer available to service machinery overseas

●What Services Can We Provide?

Accepted Delivery Terms:FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,CNY...

●How To Choose A Suitable Machine?

You can tell us your aluminum profile size and the request of machine function.We can recommend the most suitable machine according to our experience.It also can be customized according to your requirements.

●Do You Have A Setup And Equipment Commissioning Service?

Yes,we have.The machine was installed and debugged before delivery.You can use the machine directly after receiving it.Of course,we also can send us our technician to your country to install and debug.
