Product Information

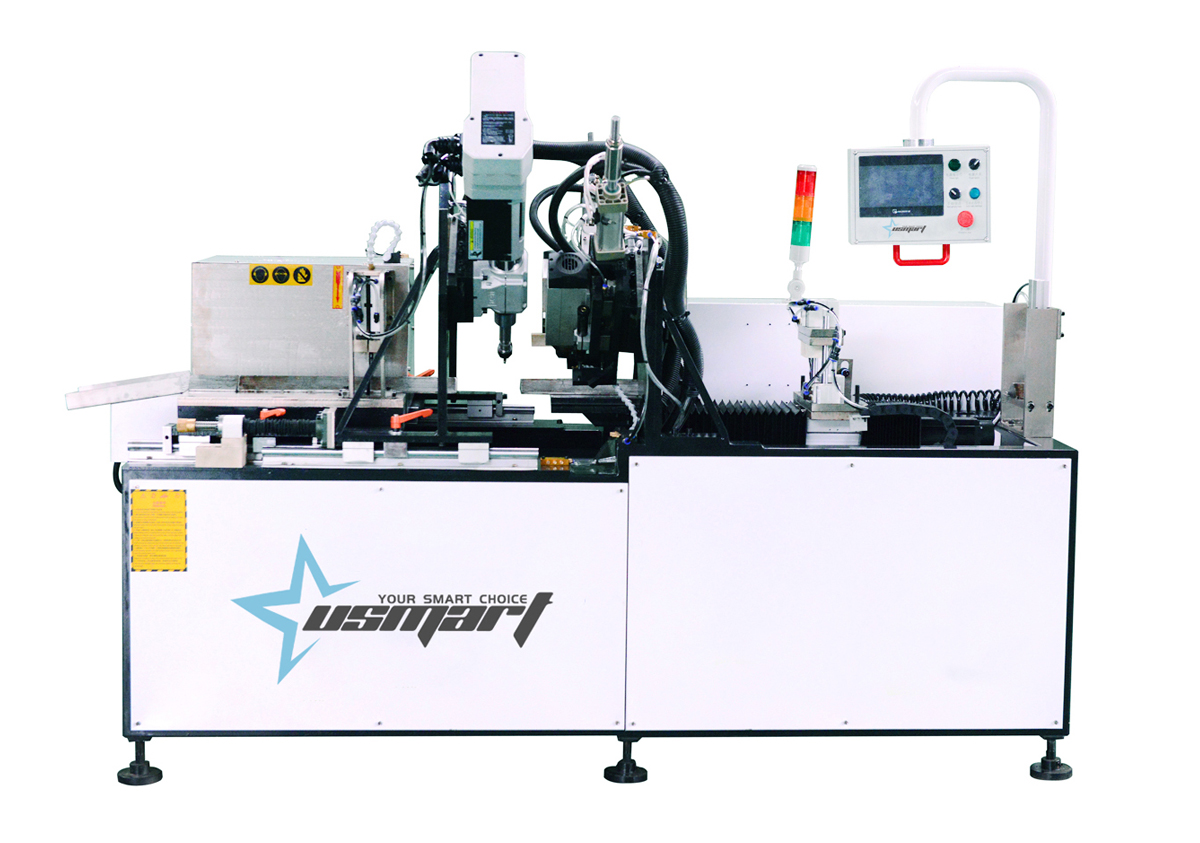

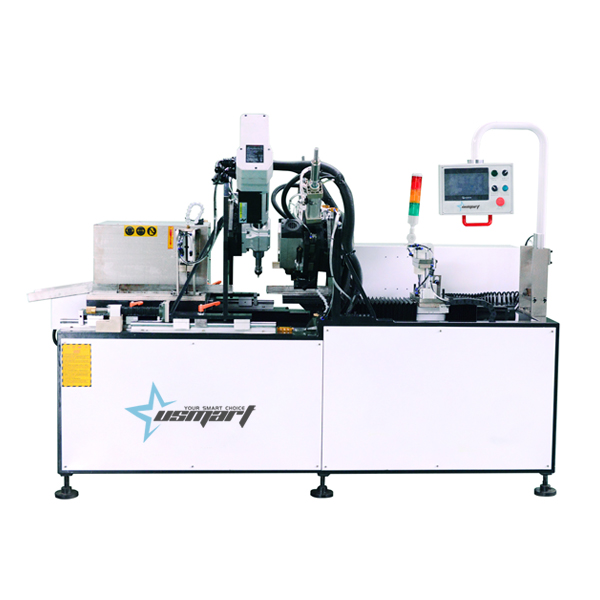

◎ This model is specially designed for automatic processing of frame fan with: Simple corner, simple glue injection corner, and expanded corner.
◎ Simple glue injection corner has the features of simple assembly, low cost and simple site construction.

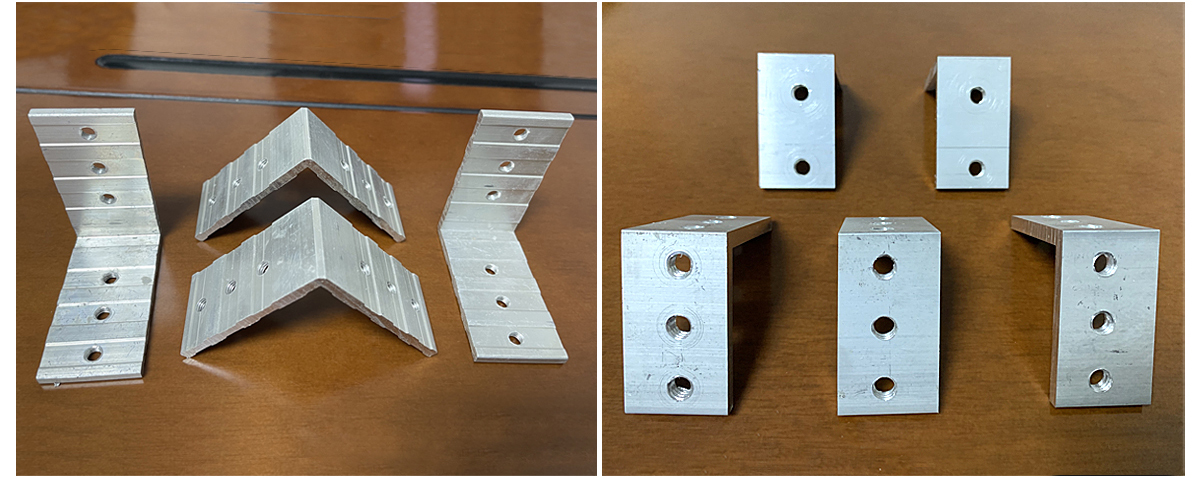

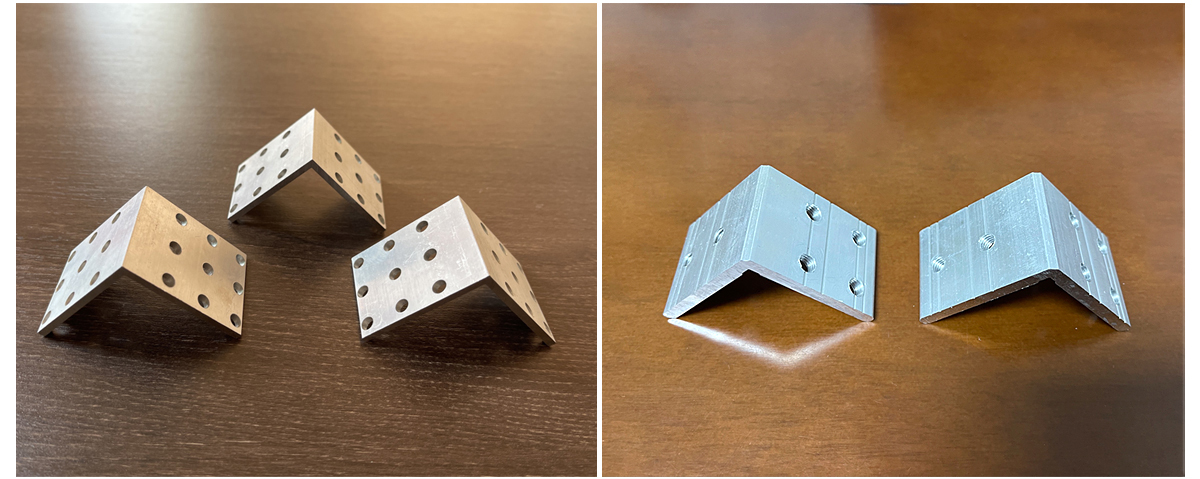

◎ In order to meet the market demand, the machine has been innovated with the following features: spindle drilling - servo tapping - saw blade cutting to achieve a variety of types of corner, a variety of height corner universal machine. At present, the machine can produce: 2 holes simple corner, 4 holes simple corner, expansion corner, achieving 3 purposes for 1 machine.
◎ The machine can process any simple glue injection corner between 3 and 45 mm in height without mould. The machine has gained good recognition and won the praise of customers once it was put on the market.
◎ The model adheres to our usual design philosophy: people-oriented. It has high working efficiency and can save labor cost. Its excellent no-tailing technology will not waste aluminum profiles, helping customers to achieve: automation, standardization, batching and simple production.
◎ Production rate per minute: 10-22 pieces. It is the star model for mass production of simple corner.
Technical Parameters
| Model | URT-51 |
| Input power | 380v 50hz 14.3kw |
| Working air pressure | 0.6-0.8mpa |
| Specification of saw blade | 400*100T 3.3KW |
| Drilling system | 2.2kw 0-18000rpm spindle motor |
| Tapping System | 1.2kw 4nm servo motor |
| Up and down motion control | 0.75 kw 2.4 nm servo motor |
| Net weight | 860kg |
| Overall dimensions | 2200*1450*1650mm |
Detail Demonstration
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it; Secondly,we will send you user manual or videos before you get the machine; Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional USMART-51 Extremely Narrow Corner Automatic Processing Machine manufacturer, our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW; Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function. We can recommend the most suitable machine according to our experience. It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also can send us our technician to your country to install and debug.
