Product Information

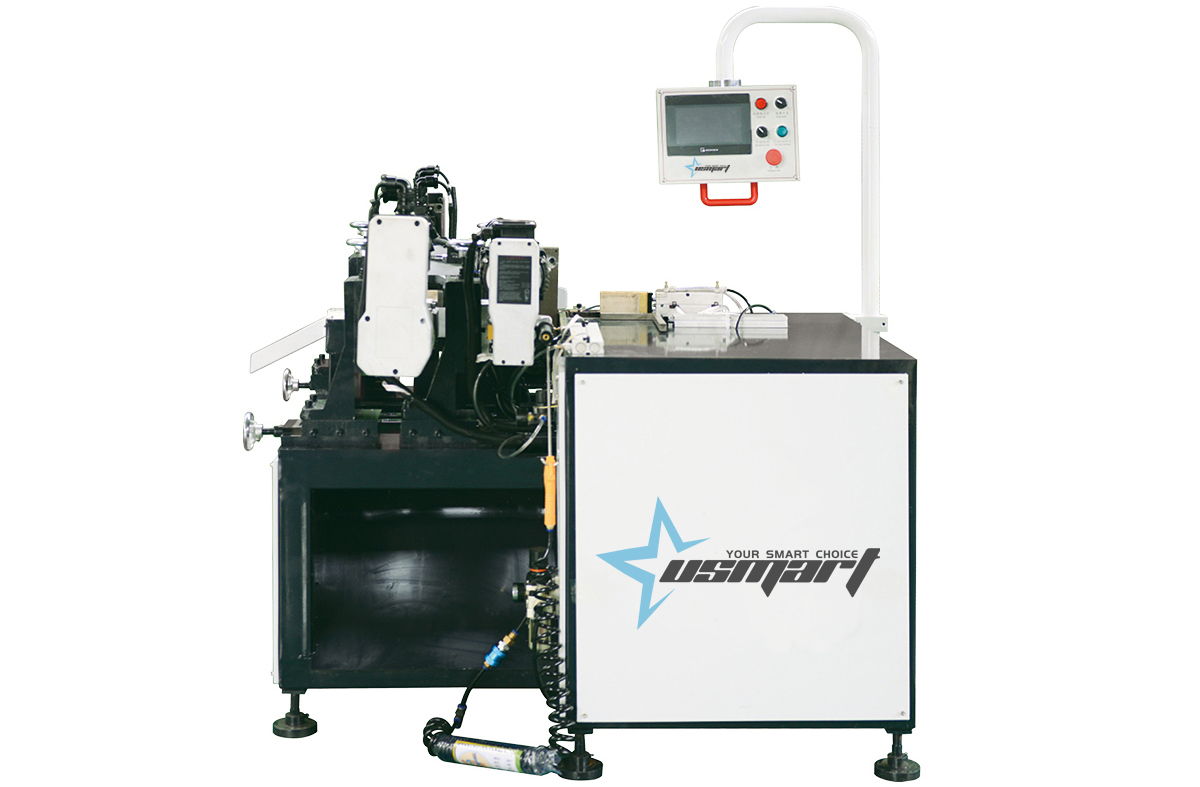

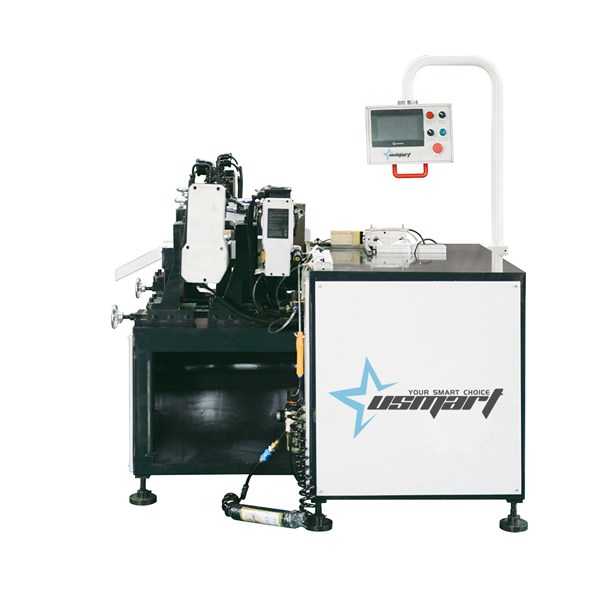

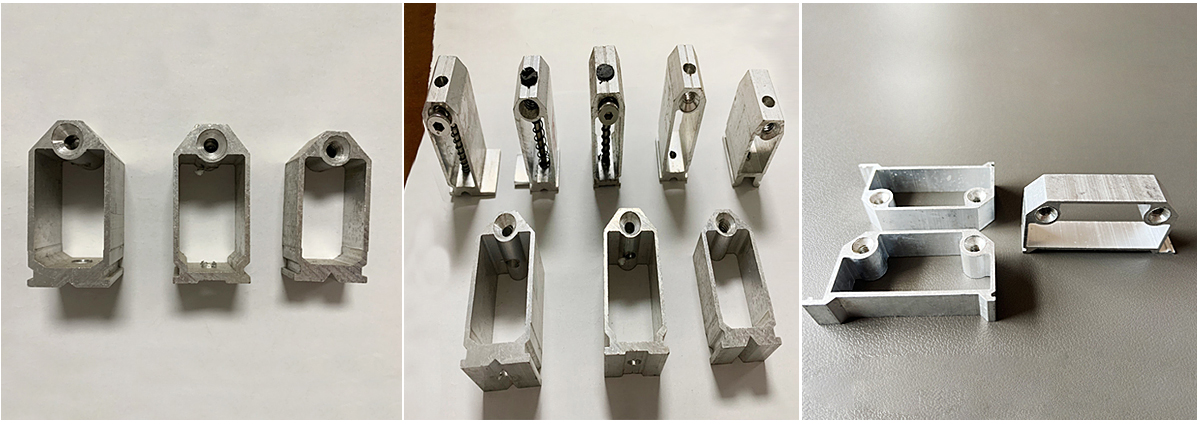

◎ Our company has developed semi-automatic center column corner side tip double-sided chamfering and tapping machine to meet the market demand. It can simultaneously complete double-sided chamfering and double-sided tapping on the side tip of the center column corner.
◎ All actions run simultaneously, only need one manual discharge, and the center column corner is automatically advanced. Thus, the labor intensity is greatly reduced. The discharge area and processing area are separated to ensure the safety of the operator.
◎ The machine has a self-test function and stops when it fails, so you can troubleshoot according to the text prompts on the touch screen.
◎ Production rate (approx.): 10-25 pieces/min for non-standard center column corner, depending on the operator's manual discharge speed.
Technical Parameters
| Model | URT-47B |
| Input power | 380v 50hz |
| Working air pressure | 0.6-0.8mpa |
| Pwero | 1.5kw*2 |
| Specifications of lower saw blade | 305mm*30*100T |
| Specifications of upper saw blade | 200*30*48T |
| Overall dimensions | 1300*600*1100mm |
| Net weight | 325kg |
Detail Demonstration
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it; Secondly,we will send you user manual or videos before you get the machine; Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional USMART-47B Center Column Corner Side Top Double-Sided Chamfering And Tapping Machine manufacturer, our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW; Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function. We can recommend the most suitable machine according to our experience. It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also can send us our technician to your country to install and debug.
