Product Information

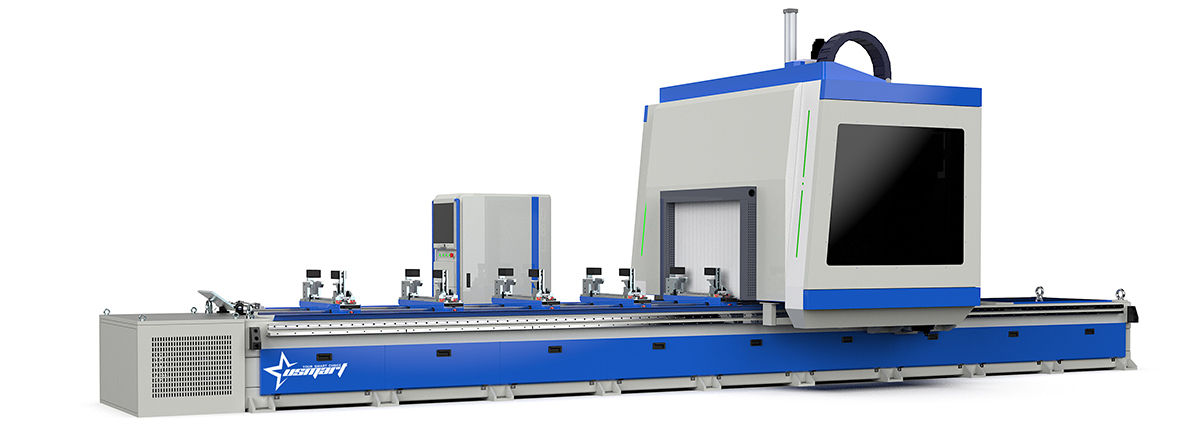

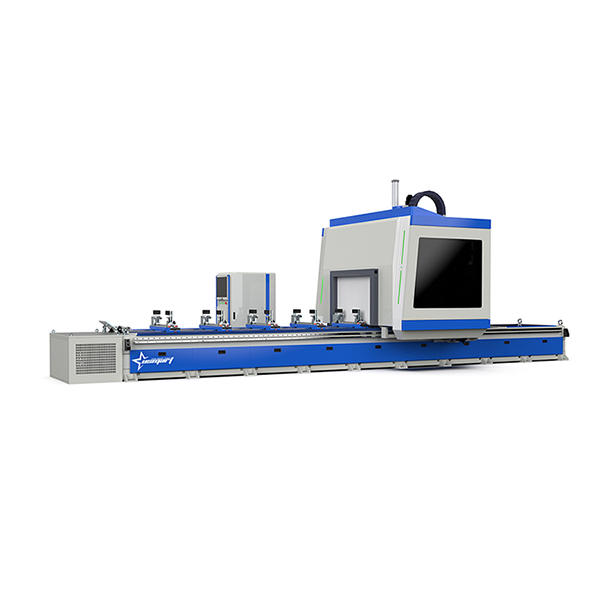

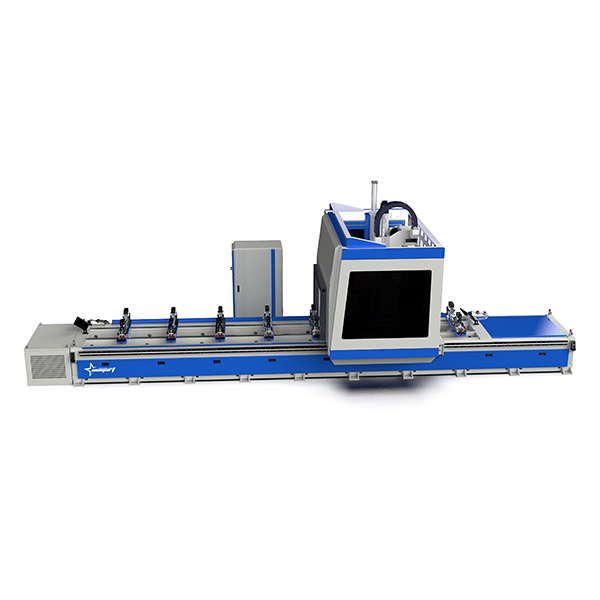

5 axis aluminium drilling and milling machining centre Suitable for all kinds of aluminum, copper, PVC, industrial profiles and other complex parts processing. Can achieve a workpiece clamping automatically completed milling, drilling, tapping andother multi-process processing. If you need ,pls contact with us. There is no need to adjust the manipulator and the profile height . only one person can operate, which is 3-4 times the efficiency of the traditional cutting saw and CNC milling machine. Saving time and cost greatly, YOUHAO 5axis aluminium drilling and milling machining centre is your best choice.
Technical Parameters
| Max. cutting aluminum profilesize | 9500*3000*2500mm |
| Repositioning accuracy | ±0.01mm |
| Working Voltage | 380V/220V |
| Applicable Material | PVC,UPVC, Aluminum,ACP |
| Operation controller | ltaly OSAl Control system |
| Spindle motor | Italy HSD/HITECO 5 axis, 12kw, HSK-63F-ER32,24000rpm |
| Servo | Japan YASKAWA AC servo motor |
| Rail | Taiwan HIWIN/PMI |
| Transmission | German wMH/Taiwan HIWIN |
| Tool sensor | Automatic |
| Lubrication | Auto lubrication |
| Packing | Wooden Packing |
Detail Demonstration
X,Y,Z Working Area：7000*500*500mm
Optional Working Area：4500*500*500mm
it can be customized according to your needs

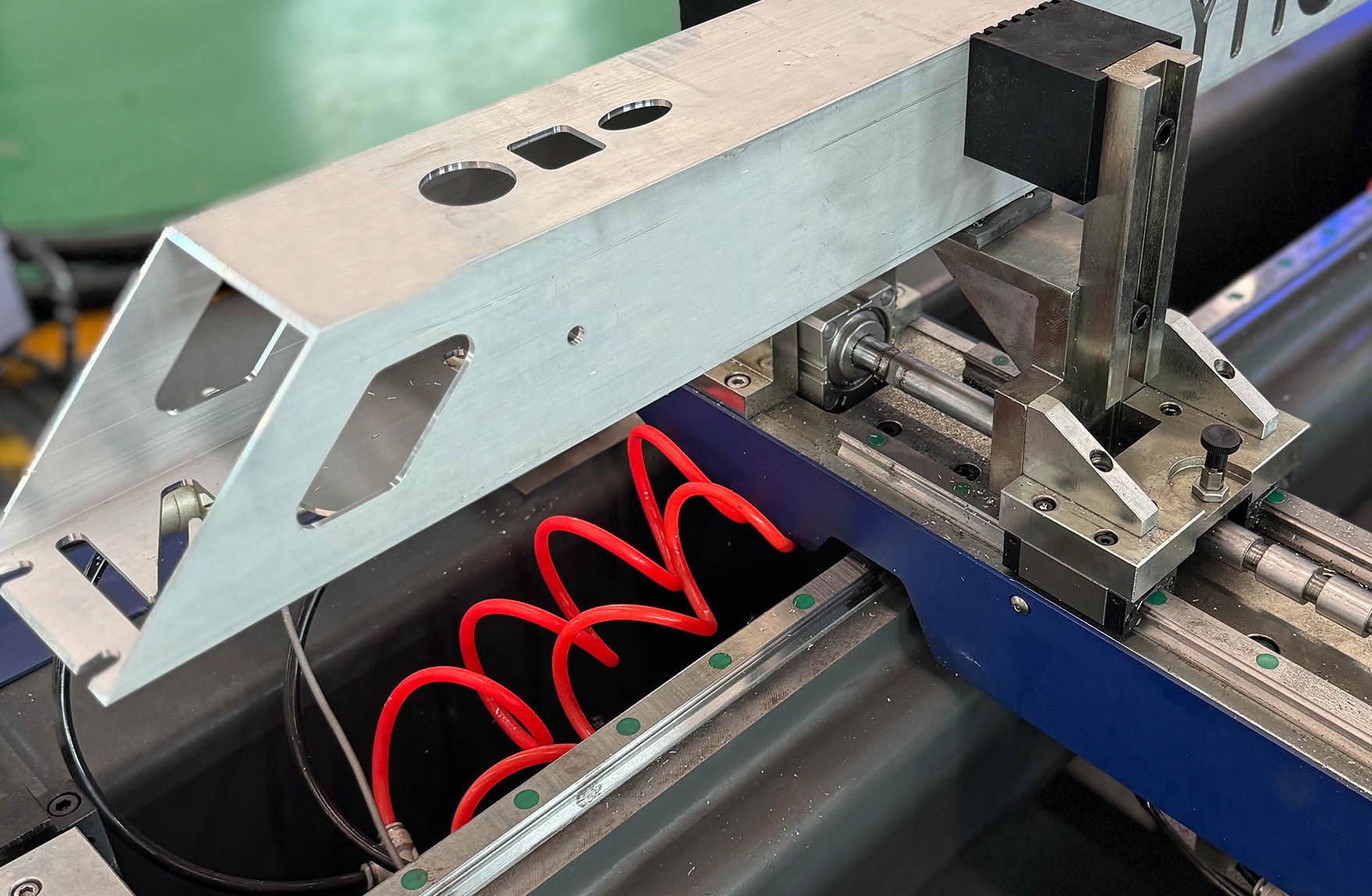

Pneumatic clamps*6

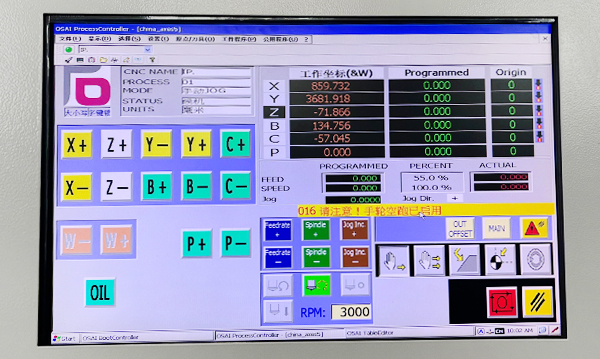

Italy Osai Open Smart 5 axis control system,with RTCP
Hiteco 12-14KW 5 axis spindle(45°oblique angle)
Yaskawa 1.8kw servo motor and driver，Z axis with brake
Taiwan Delta 15KW Inverter
X/Y axis with Taiwan Liming Reducer
Japan Pantoscopic 35/30/30 square rails
Germany WMH-2M-1000 rack on X, Taiwan TBI 3205 ball screw on Y,Z
12 pcs carousel auto tool changing magazine
Independent control cabinet with industrial air conditioner
Teyu CW5200 water chiller
Auto lubrication-Independent control cabinet with industrial air conditioner
Advanced 5 Axis control system with RTCP function, which can complete complex five-axis linkage processing
World TOP brand Japan Yaskawa servo motor and drivers. Global service. High precision planetary reducer to ensure machine accuracy.

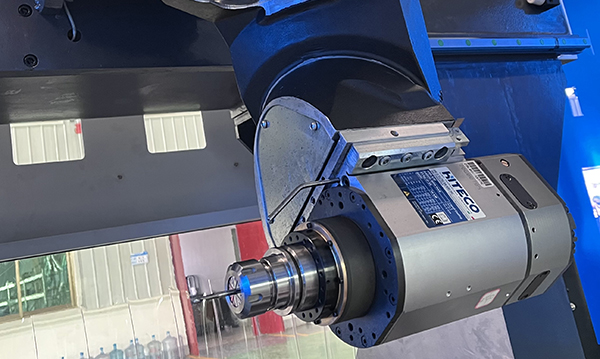

It adopts imported high-precision double swing head, high-power, high-speed Italy Hitec spindle. The inner taper hole of the spindle head is HSK63F interface, which has a high metal cutting amount per unit time

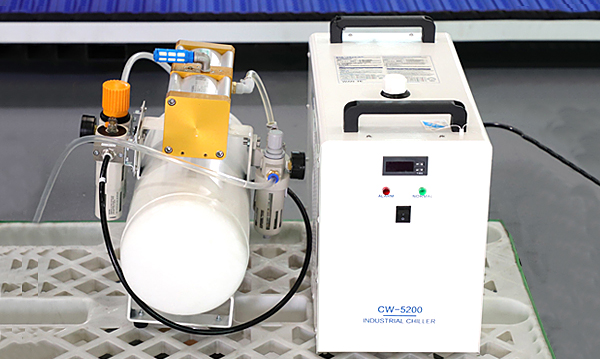

Water chiller:the water circulation cooling system of the electric spindle to cool down spindle temperature
Automatic lubrication system:grease will not flow everywhere, keep machine clean and prolonging the life span of the machine

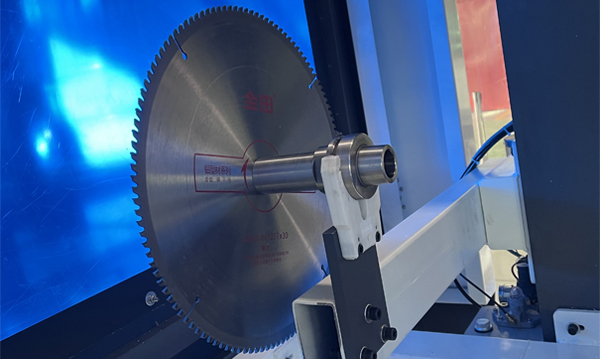

Saw blade for cutting aluminum profile

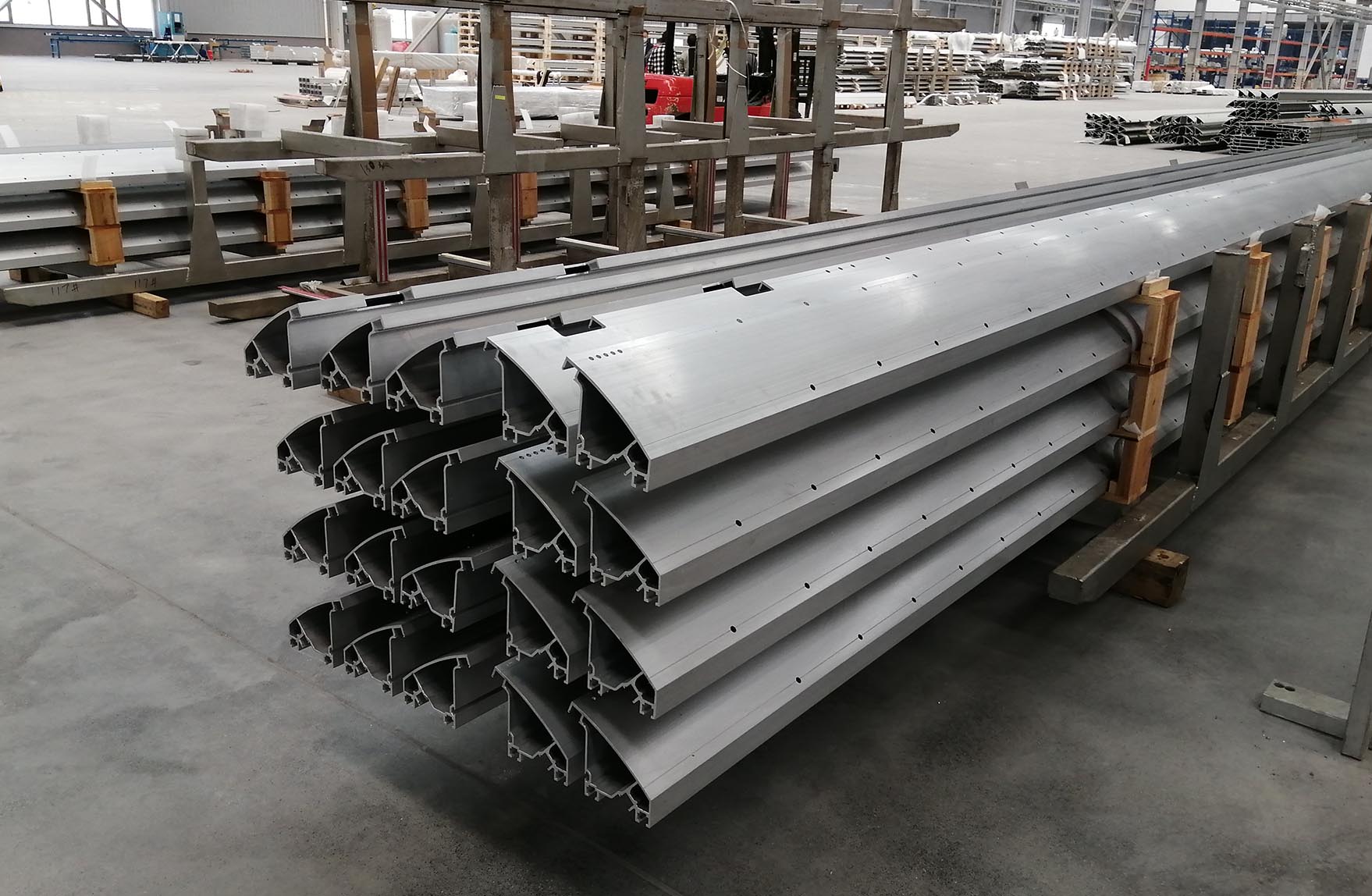

Sample
Sample
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it; Secondly,we will send you user manual or videos before you get the machine; Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional 5 Axis Aluminum Profile CNC Machining Center manufacturer, our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW; Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function. We can recommend the most suitable machine according to our experience. It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also can send us our technician to your country to install and debug.
