Product Information
◎ This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door and curtain.
wall industry,it is also suitable for processing milling,engraving plane surface and other procedure.
◎ Italy air cooling spindle, high precision,high safety and high reliable.
◎ Adopt Taiwan SYNTEC CNC control system. Easy operation,high efficiency and lower labor intensity.
◎ Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.Y and Z axis adopts high precision ball screw drive.The drive is stable,so can improve the precision of whole machine.
◎ Insid toolmagazine can hold 8 tools,the handle is approved ISO 30 standards,it is very safety and reliable.
◎ The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
◎ The main components adopts steel structure and they are all through aging treatment.
Technical Parameters

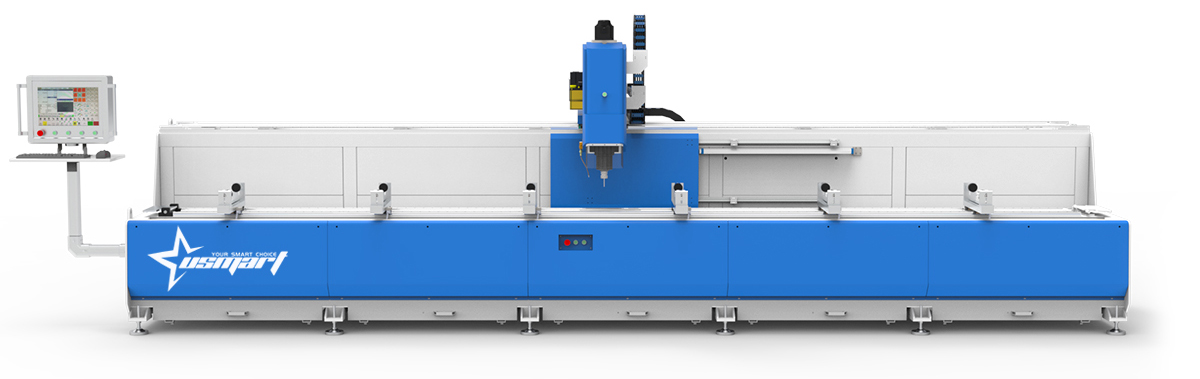

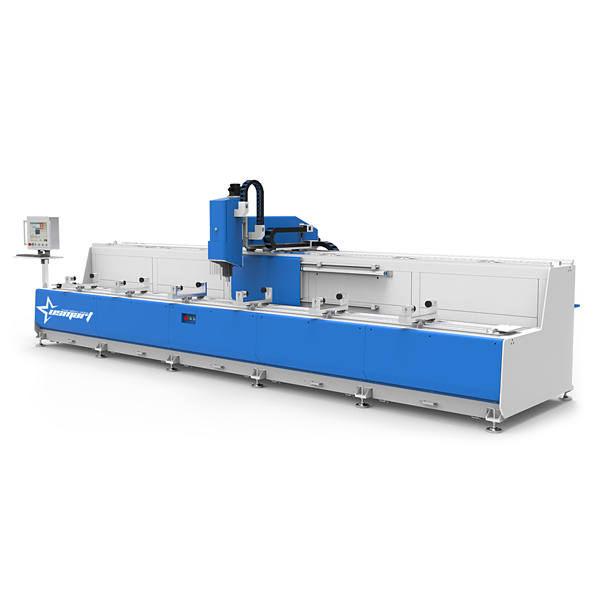

| Model | URT 6000mm Aluminum Profile CNCDrilling Milling Machine |
| Processing range | 300x200x3000mm |
| Air pressure | 0.5-0.6MPa |
| Power supply | 380V/3Ph/50Hz or customized according tocustomer requests |
| Electric spindle | 9kw air cooling spindle, 24000 rpm/min |
| Control system | Taiwan SYNTEC control system |
| Drive motor | Leadshine/Japan Yaskawa servo motors withJapan SHlMPO reducer |
| Rail | Taiwan HWIN30/25/25 |
| Rack and screw | 1.5M crescent and TBl screw |
| Inverter | Fuling/Taiwan Delta 7.5KW |
| Table | 6 clamps |
| Bed | Thickened steel pipe welding, five-sided millingmachining center processing |
Detail Demonstration

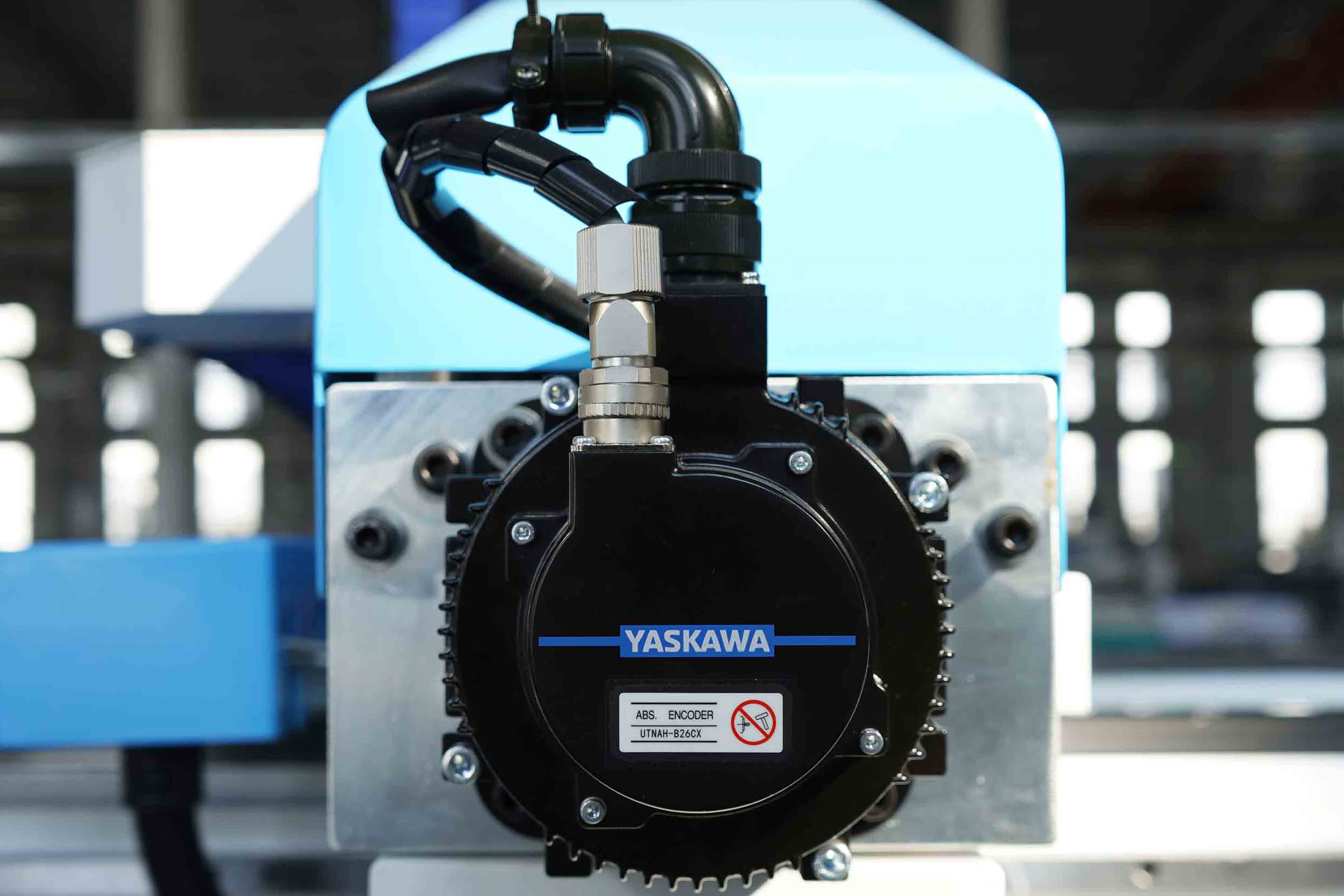

Leadshine servo motor or Japan Yaskawa servo motor optional

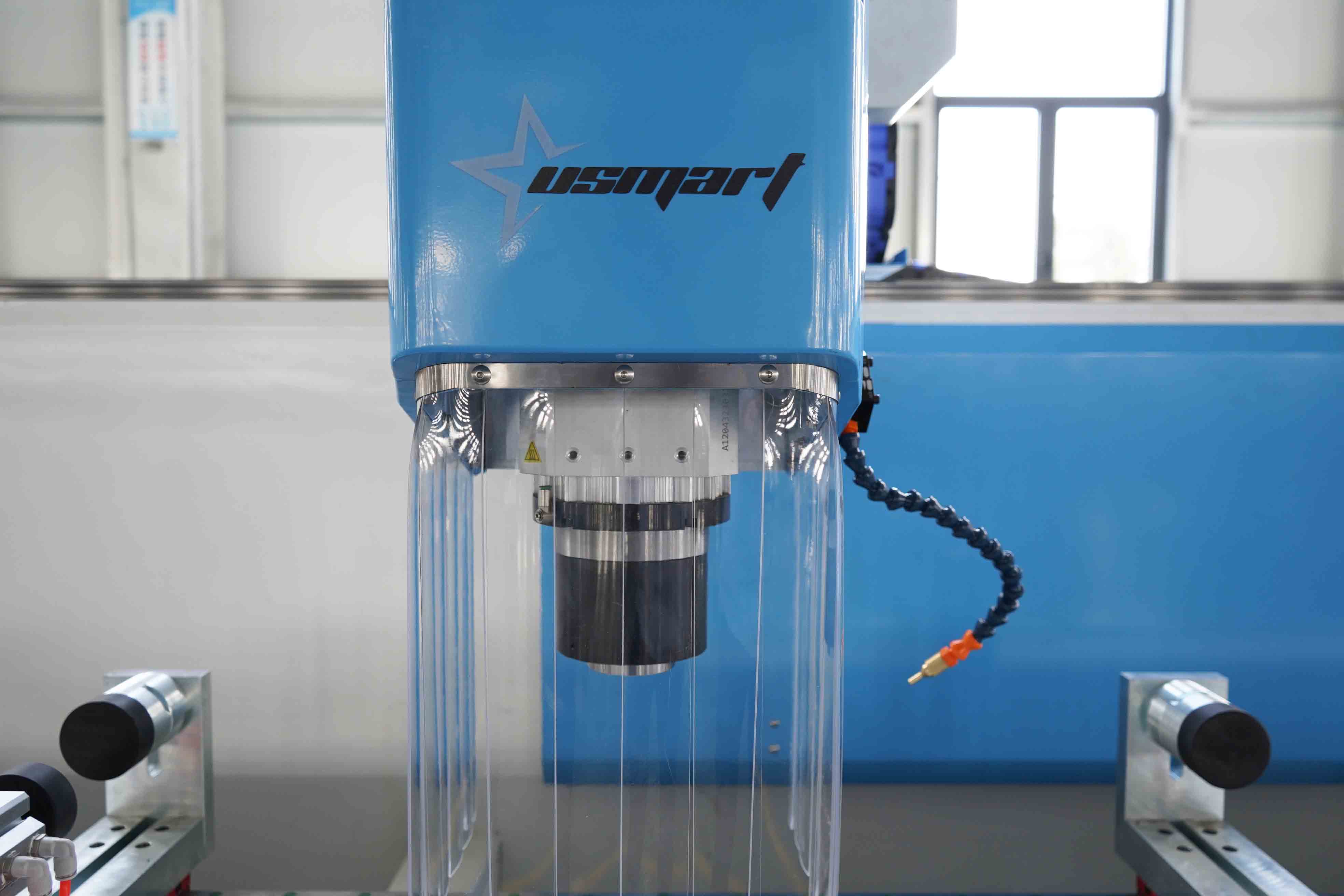

9KW air cooling spindle

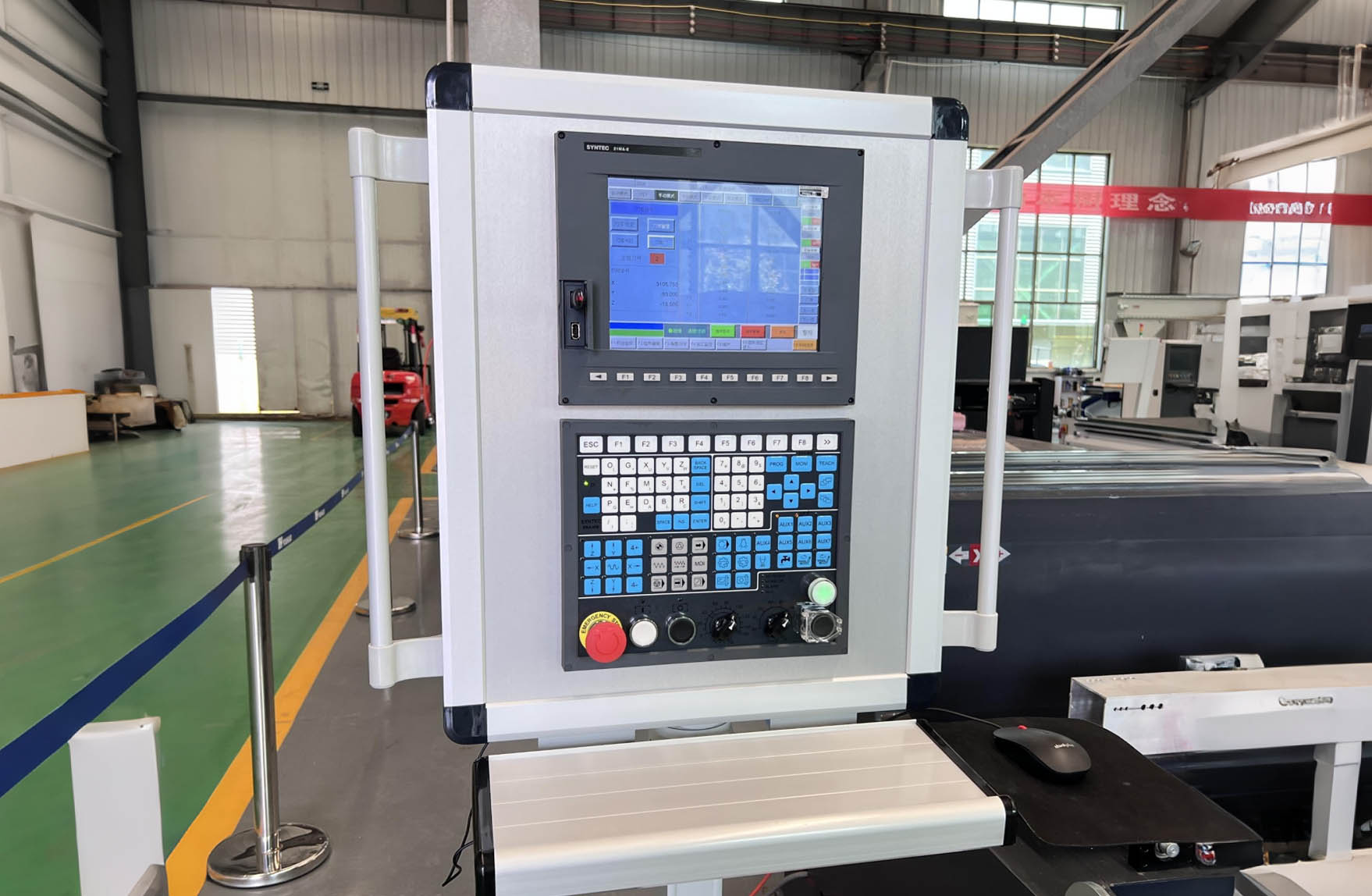

Taiwan Syntec control system

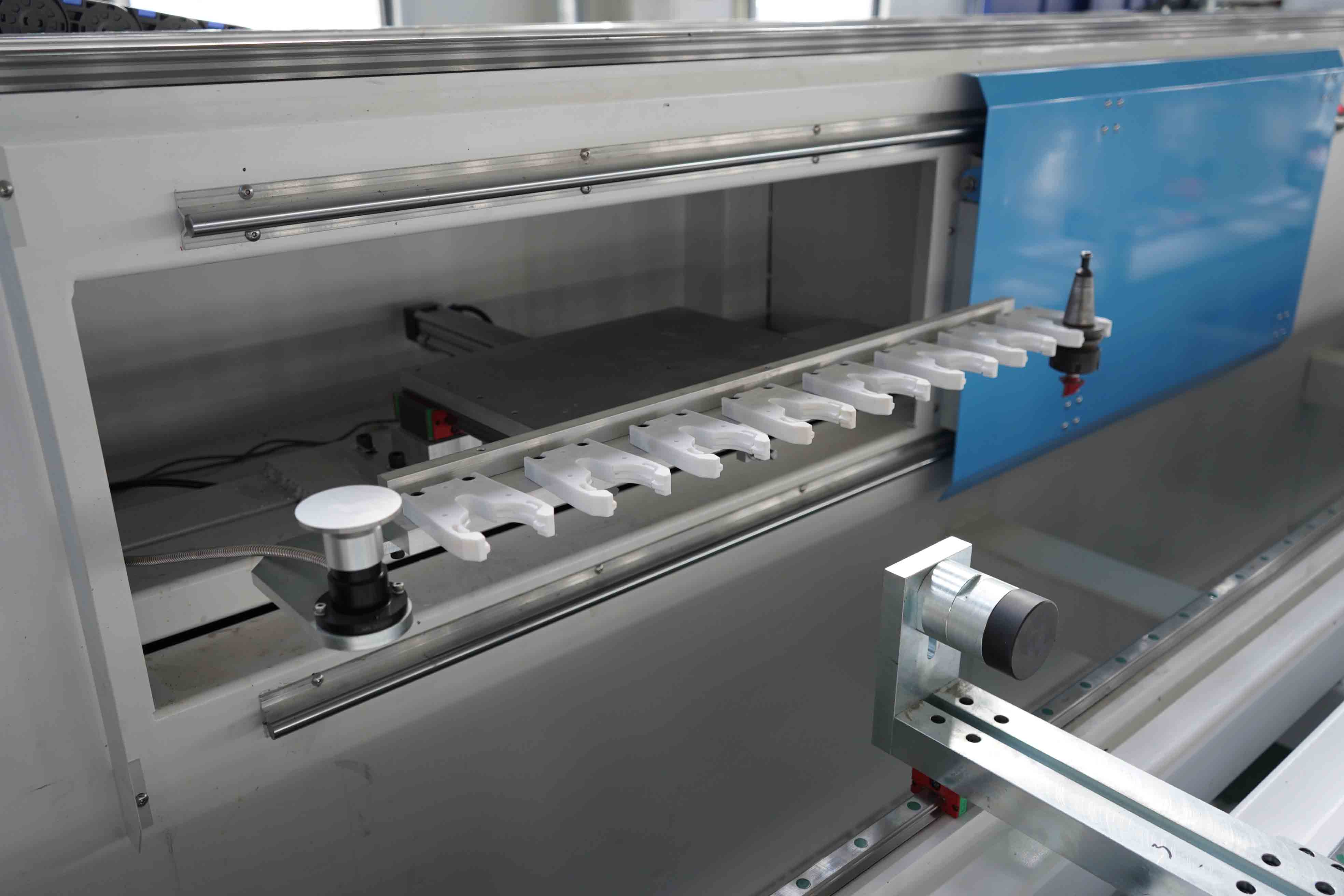

Automatic Tool Change: 8 tool magazines

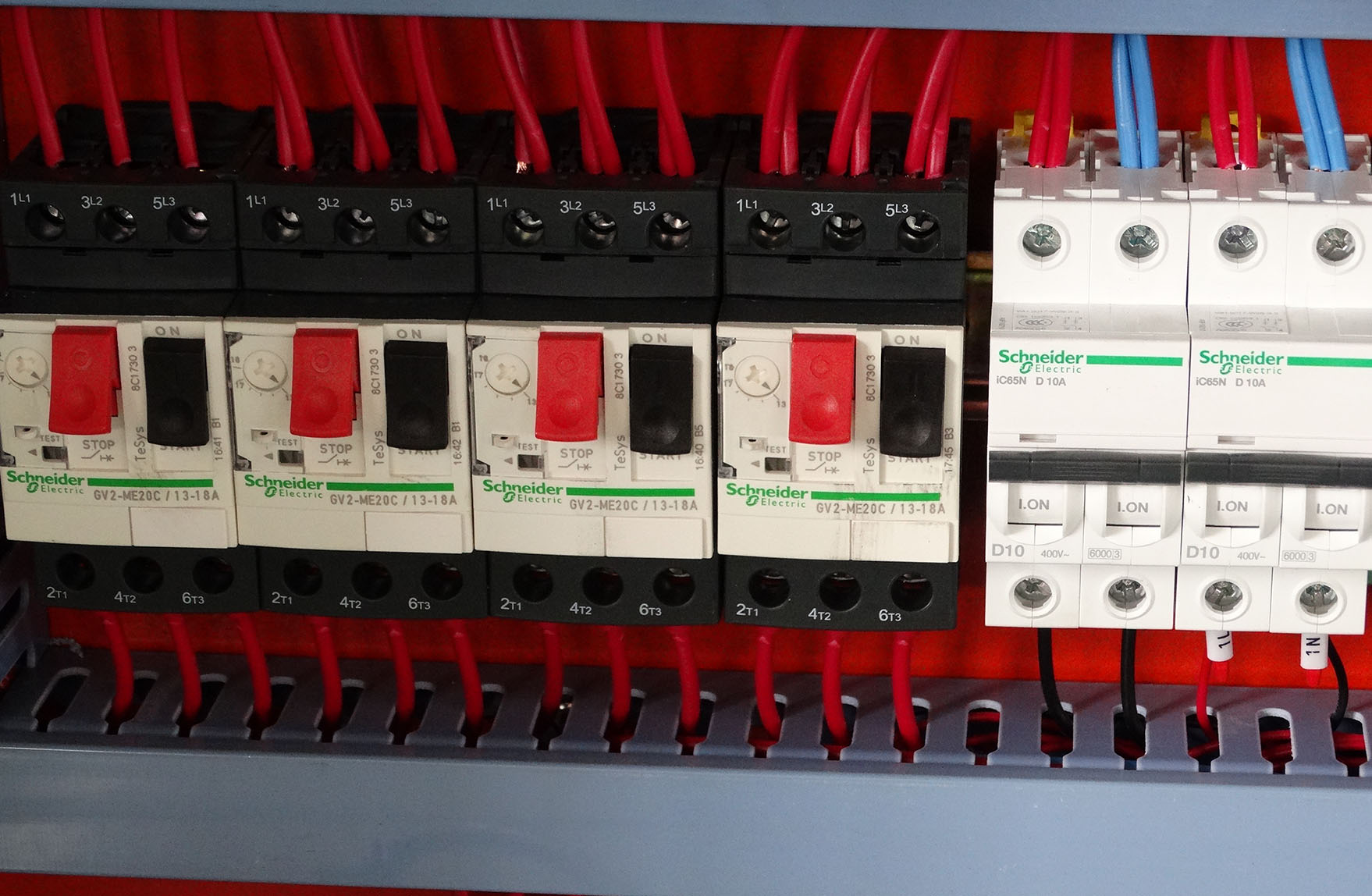

France Schneider electric parts

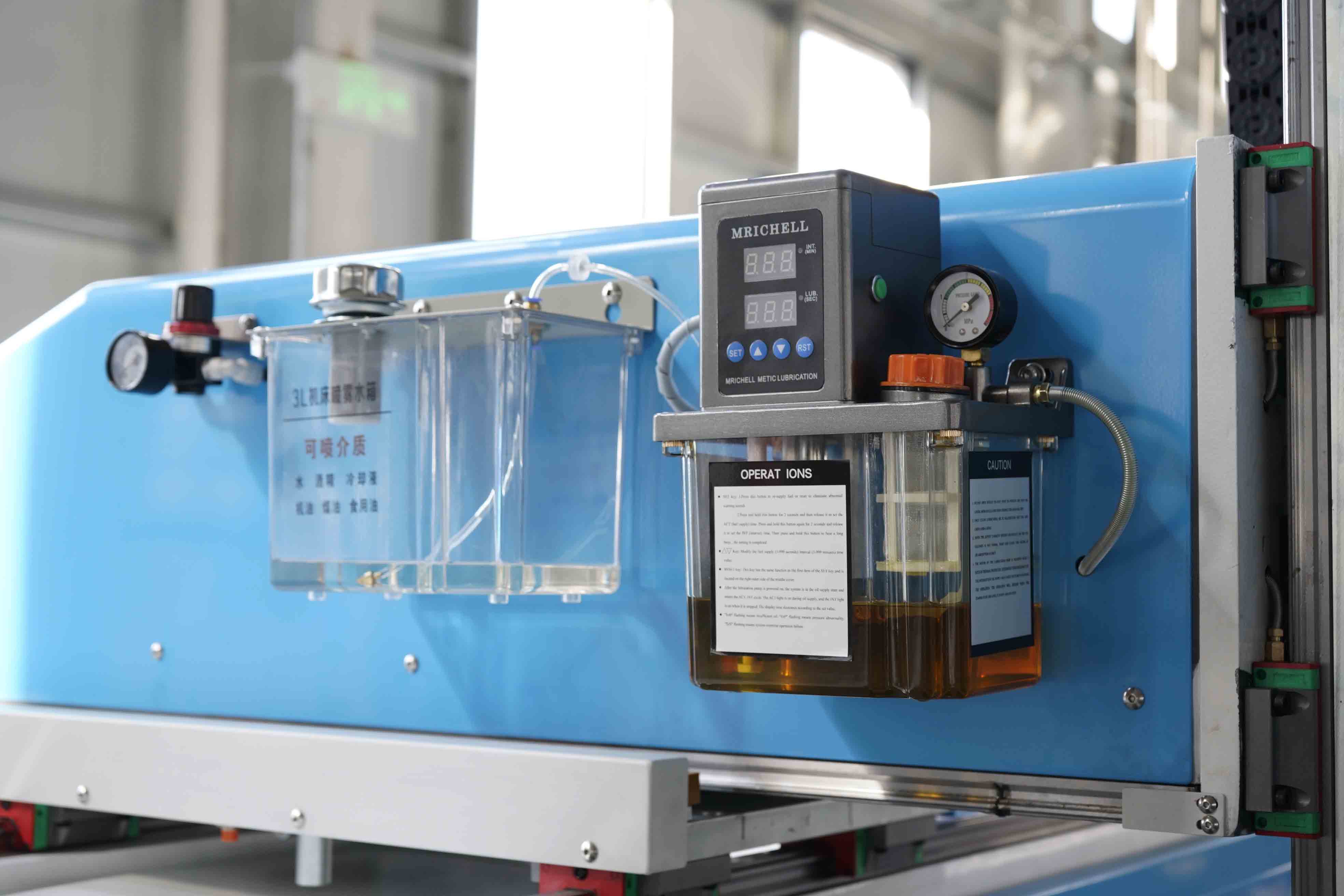

Automatic lubrication

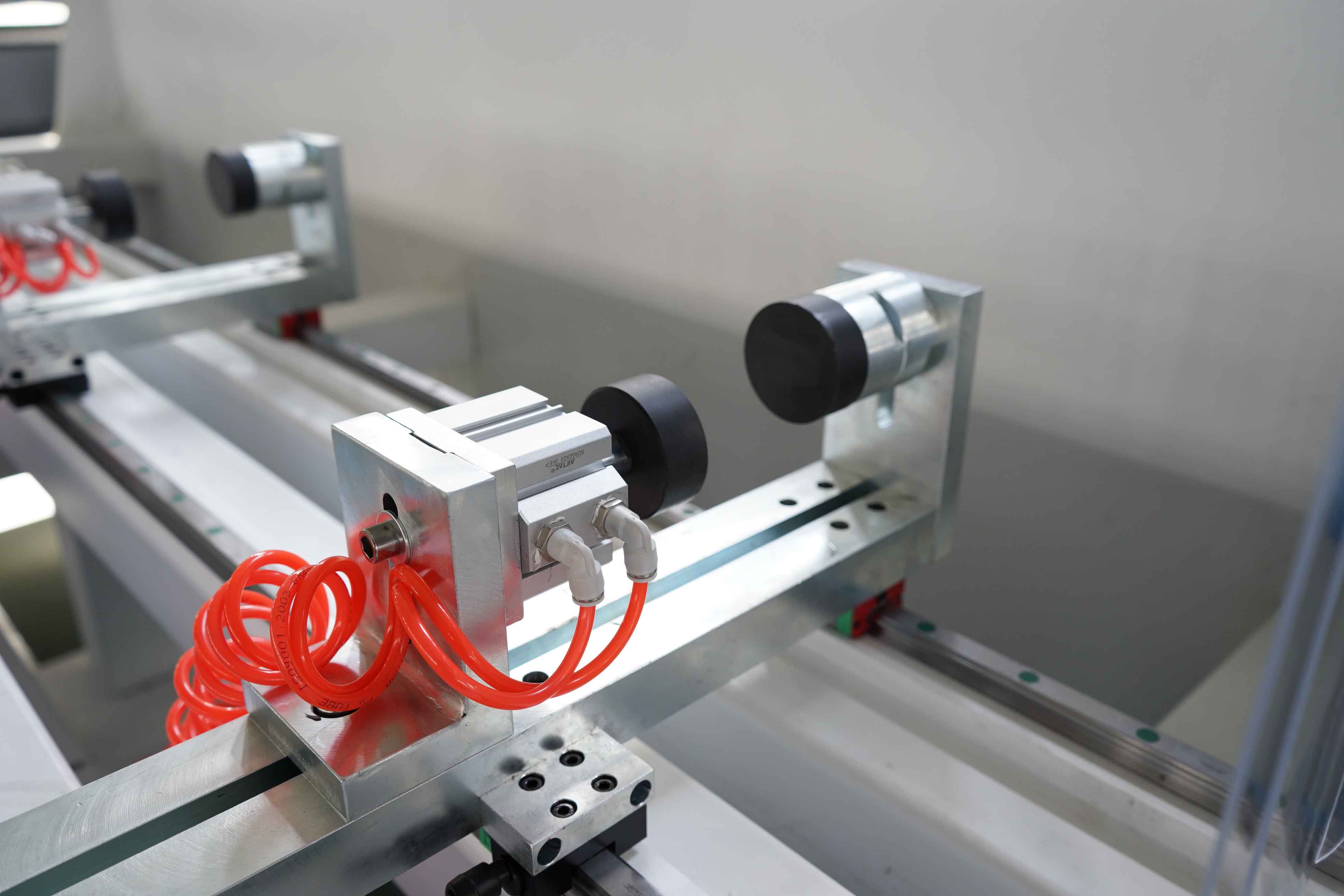

Clamping table

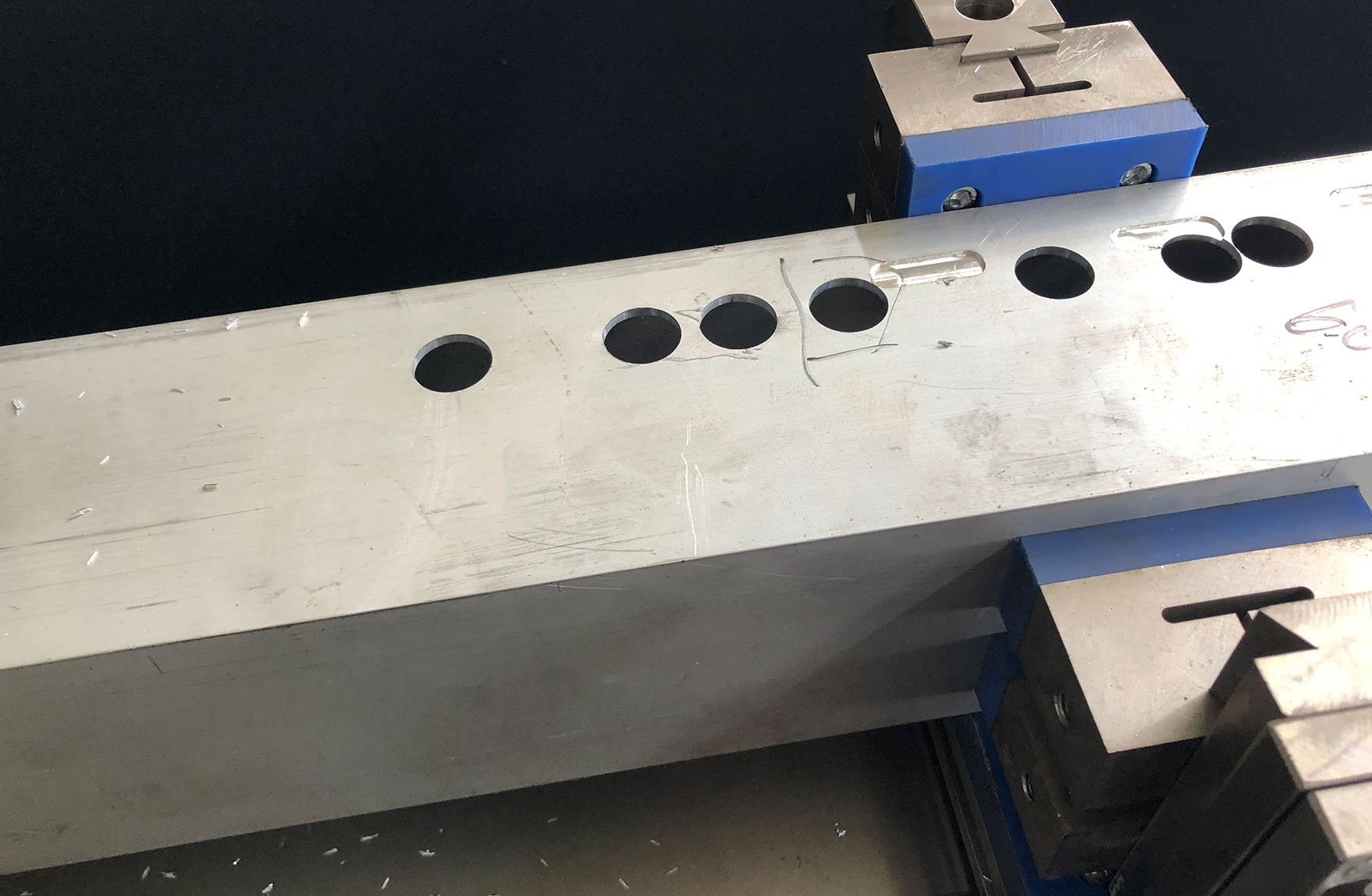

Aluminum Profile CNC Drilling Milling Samples

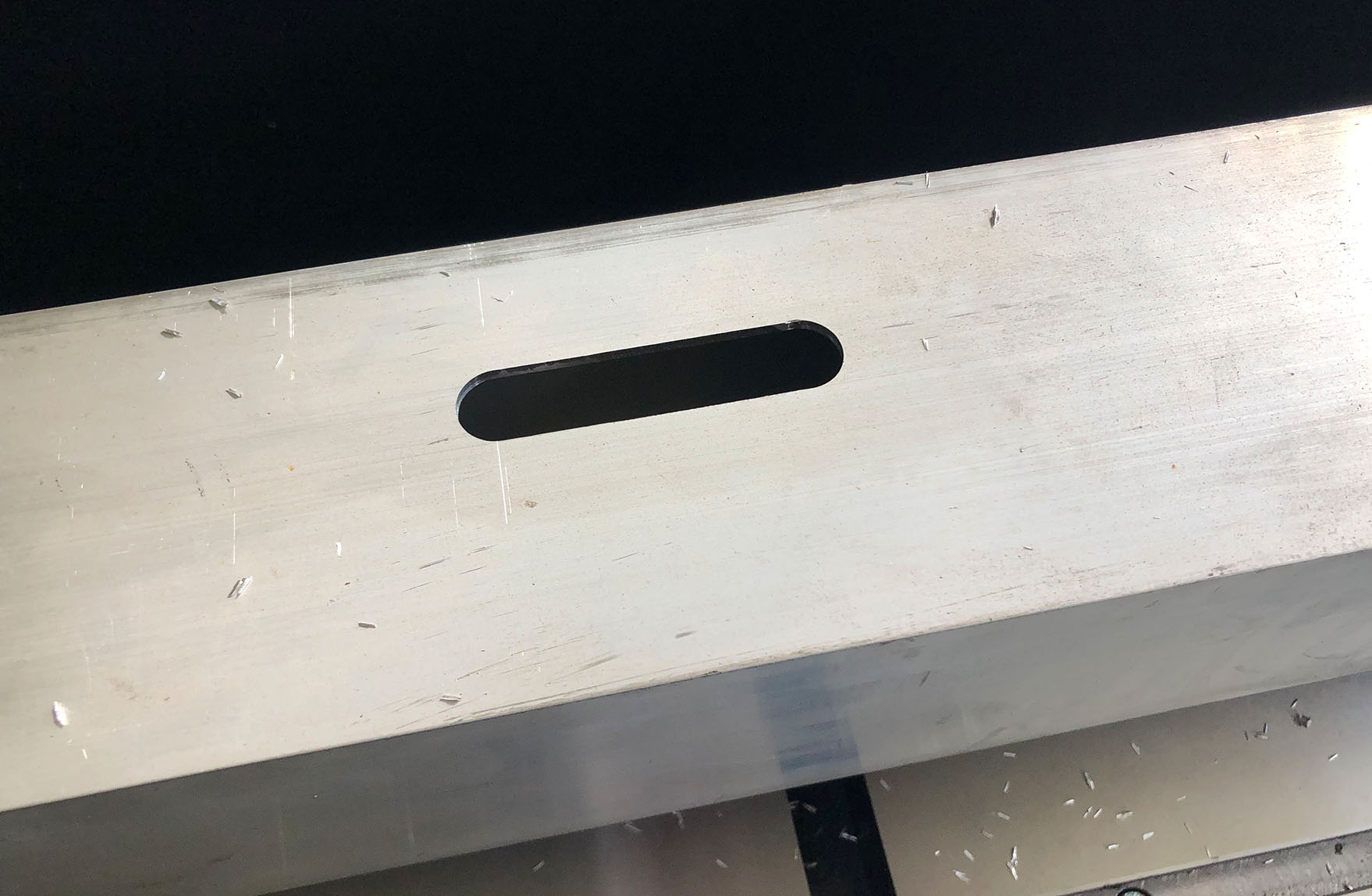

Aluminum Profile CNC Drilling Milling Samples

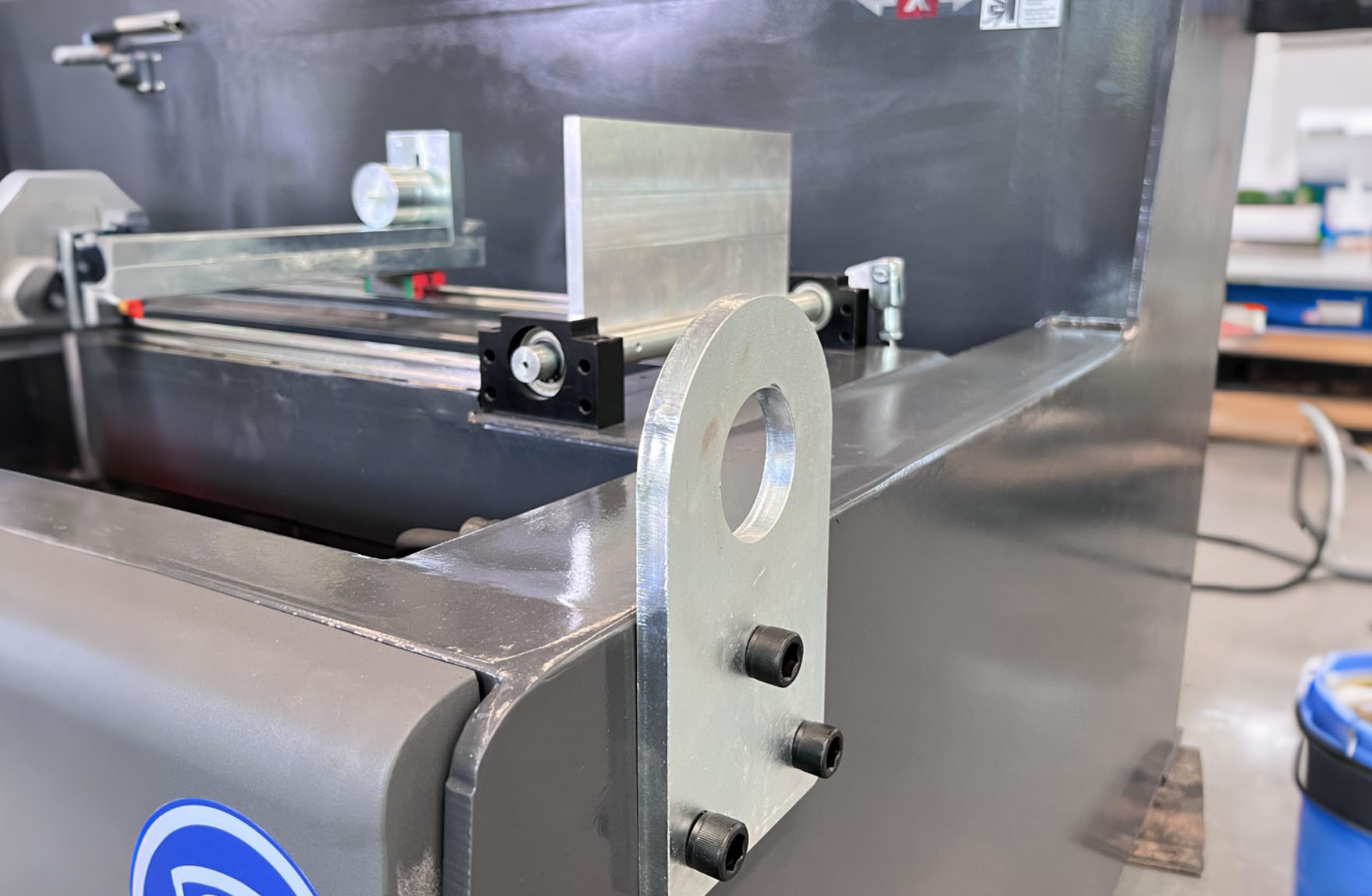

Rings: the machine is heavy duty ,we do the rings ,It is convenient for loading and unloading the machine
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it;Secondly,we will send you user manual or videos before you get the machine;Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional USMART-A9 6000mm Aluminum Profile CNC Drilling Milling Machining Centre manufacturer,our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms:FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function.We can recommend the most suitable machine according to our experience.It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have.The machine was installed and debugged before delivery.You can use the machine directly after receiving it. Of course,we also can send us our technician to your country to install and debug.
