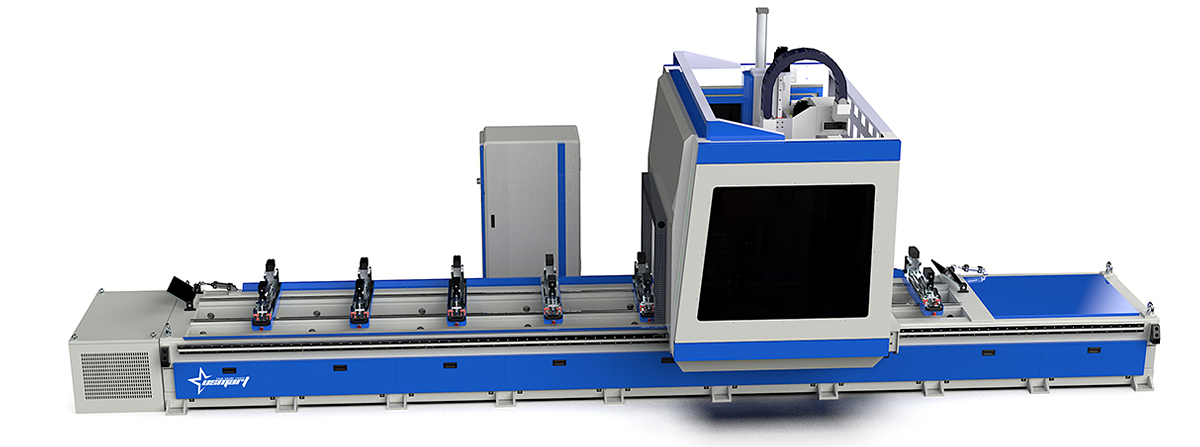

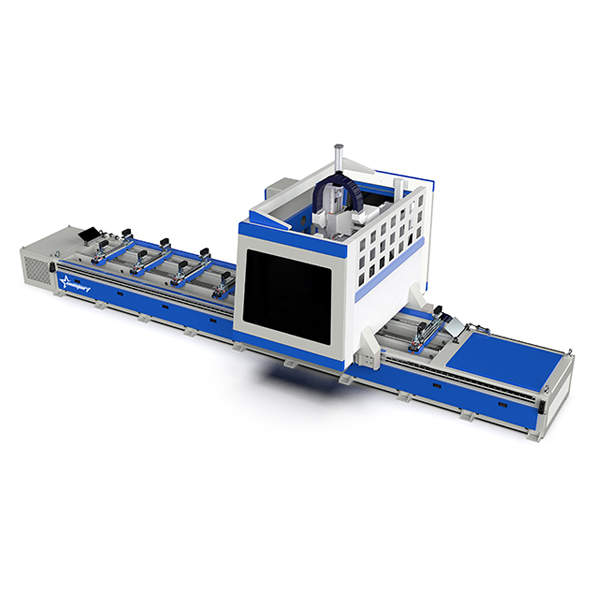

Product Information
◎ Adopt Taiwan 4 Axis Syntec CNC control system with software ProFileCut CAD_CAM,have the function of clear interface and easy operate.
◎ The clamps can move automatically according to require. Machine can achieve high efficient 3D 4 axis processing work.
◎ Single positioning and dual positioning design, separately loading and unloading profile without stop machine, more high processing efficiency.
◎ Lubrication adopt intermittent supply system,milling cutter cooling adopt system control mist spray pump.
◎ Machine can be used on process aluminum profile three sides one time
◎ One time clamping can complete the aluminum profile multi-sided drilling、tapping/chamfering(optional)、edge milling、slot milling and shaped hole processing.
◎ Adopt imported high precision ball screw、square guides、rack and pinion to assure the high precision and stability of machine.
◎ Adopt Japan Yaskawa servo motors&drivers, Italy automatic tool change spindle, make sure machine high precision.
◎ Automatic tool change, save manually tool change time
◎ The head adopts fully enclosed structure to make sure the safety of operator.
Technical Parameters
| Power | 380V/50Hz/3Phase or customizedas per customer requests |
| Working air pressure | 0.6-0.8 Mpa |
| Total Power | 16KW |
| Spindle | ltaly 9kw,24000rpm, max exporttorque 6.4NMM |
| Saw blad | Dia250 |
| Tool magazine | 8+8pcs |
| Travelling size | X axis.7000mm Y axis:500mm Z axis:300mm |
| Processing size | 7000x450x300mm |
| X-axis feeding speed | 50m/min |
| Y-axis feeding speed | 25m/min |
| Z-axis feeding speed | 10m/min |
| Max tool length | 100mm |
| Clamps | 8 pcs |
| Cutter handle mode | ISO30 |
| Lubrication&Cooling | Automatic lubrication: Mist spray forcool down tool temperature |
| Overall dimension | 10000x2230x3060mm |
| Weight | 5700kg |
Detail Demonstration

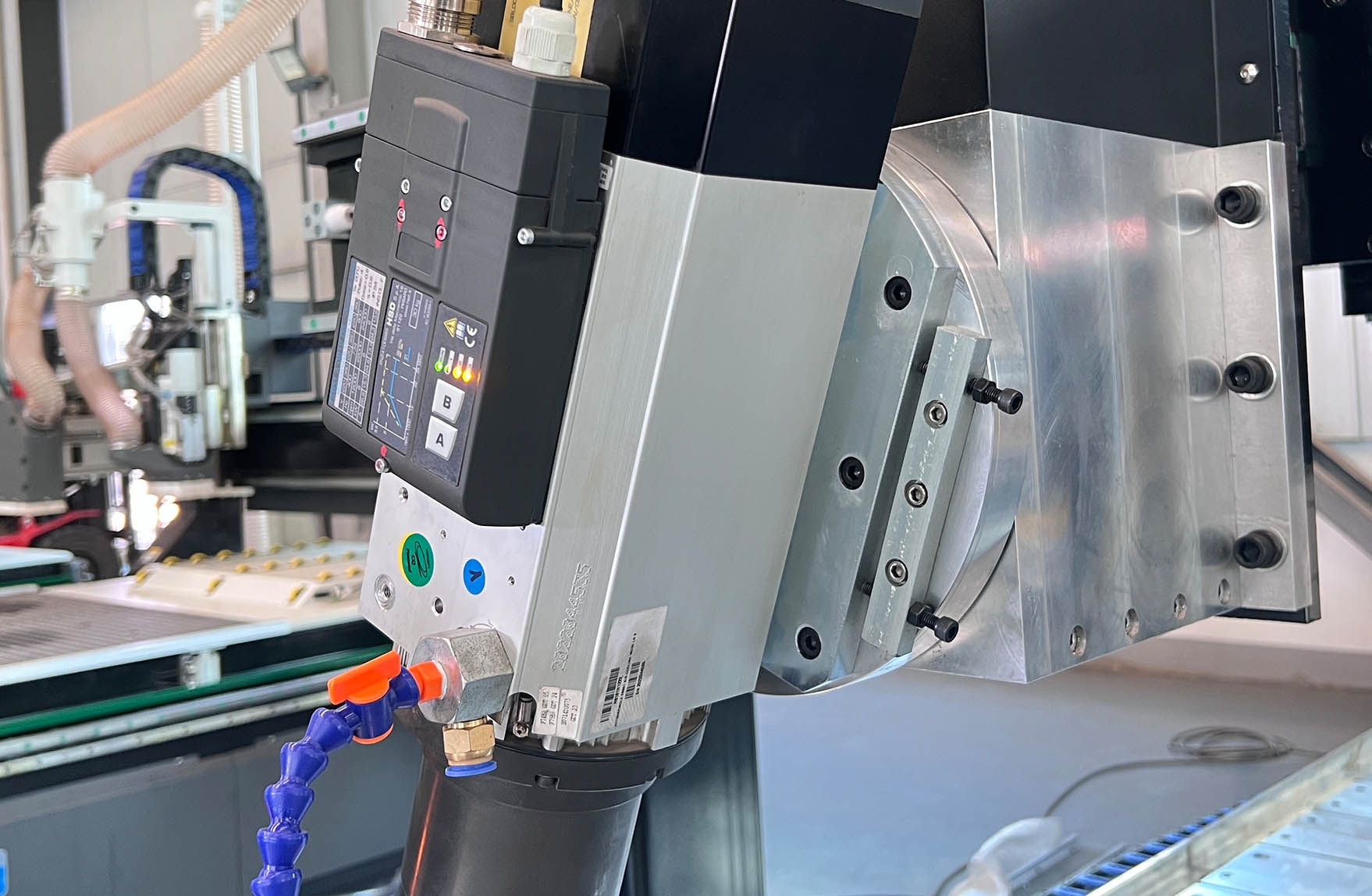

Rotate -90° +90° One time clamping can process three sides,high efficiency

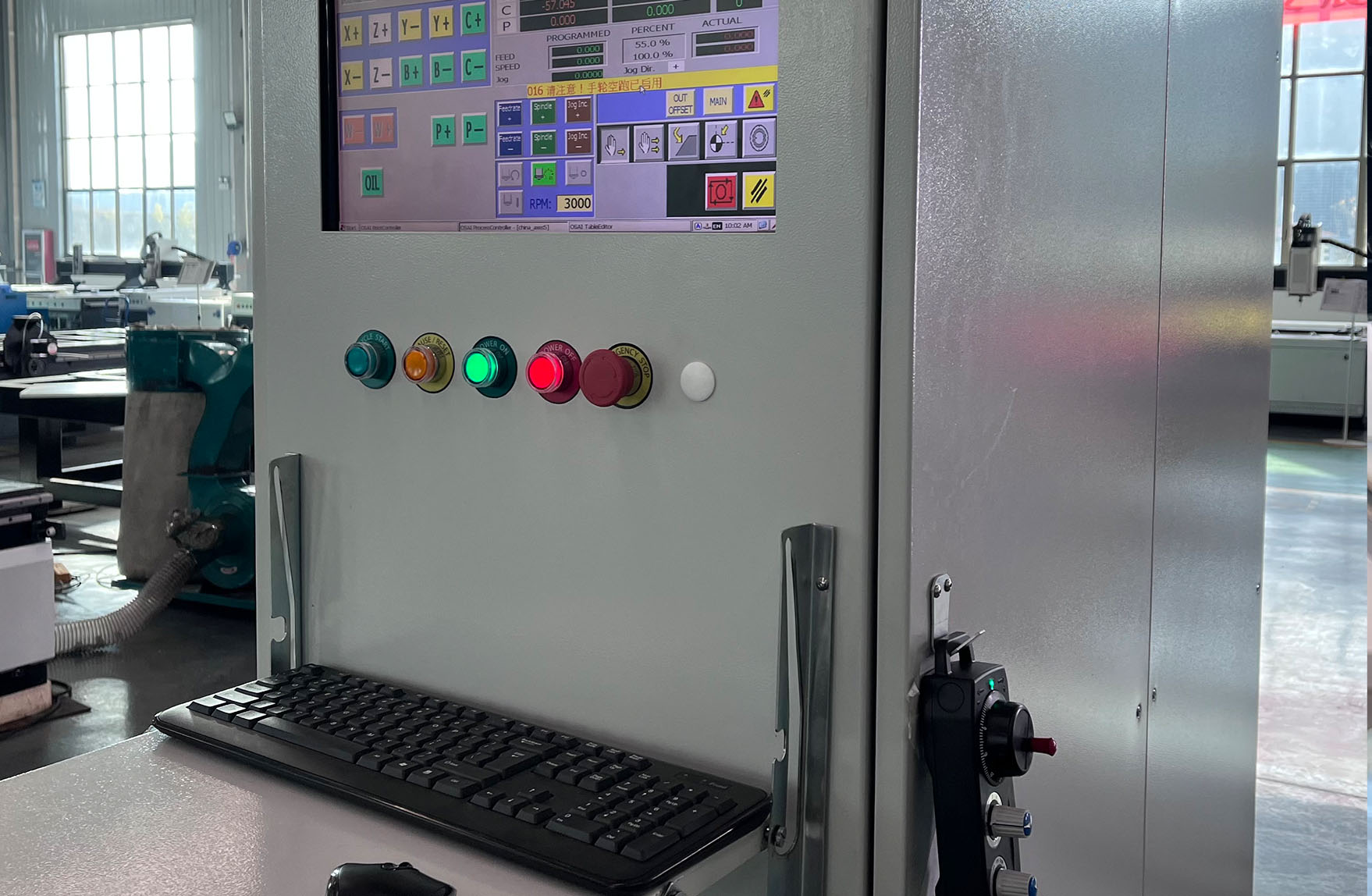

Taiwan Syntec control system with professional software ProFileCut CAD_CAM Clamp Automatic Avoidance

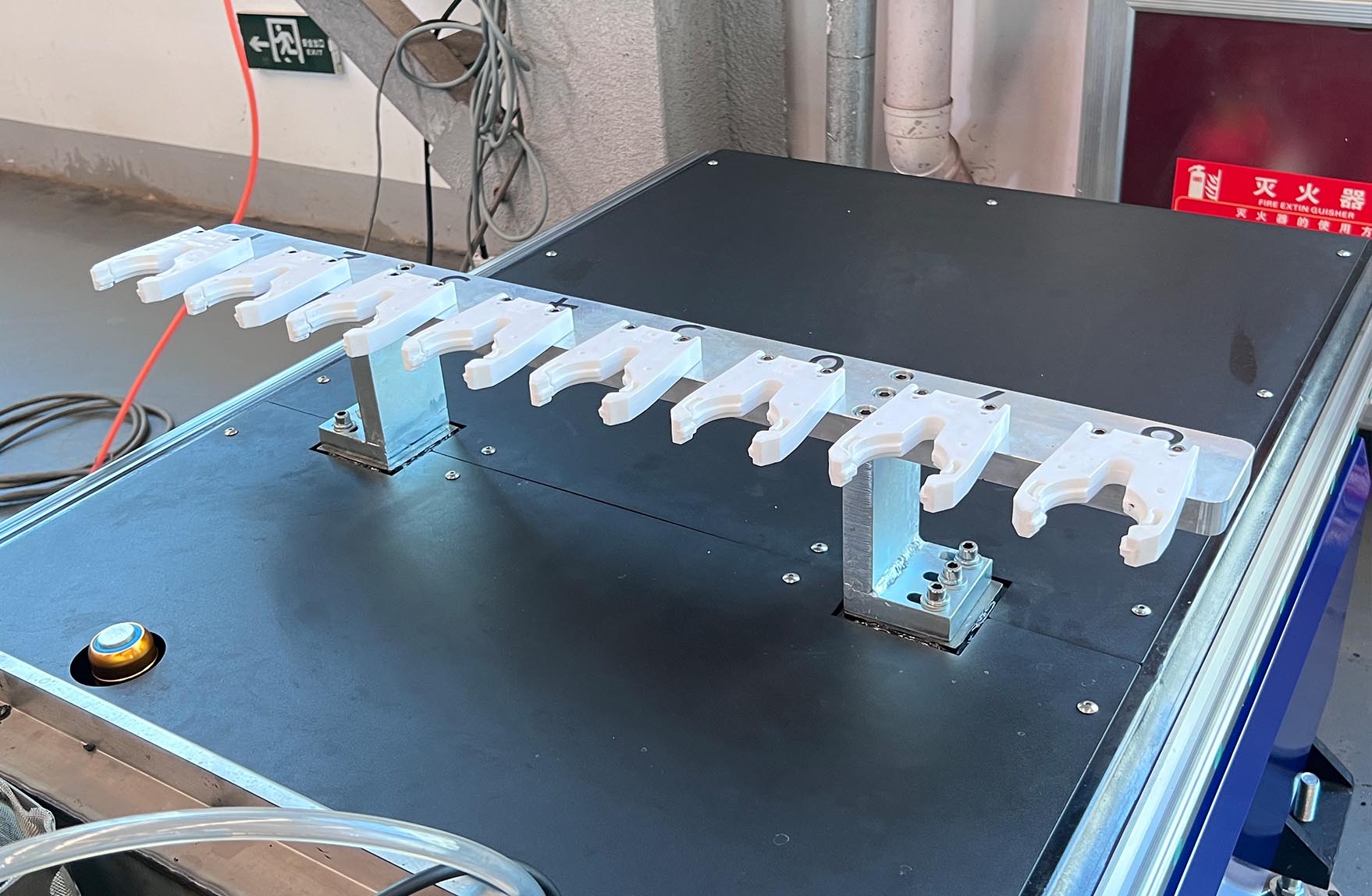

Automatic tool change, tool magazine capacity 8 pcs

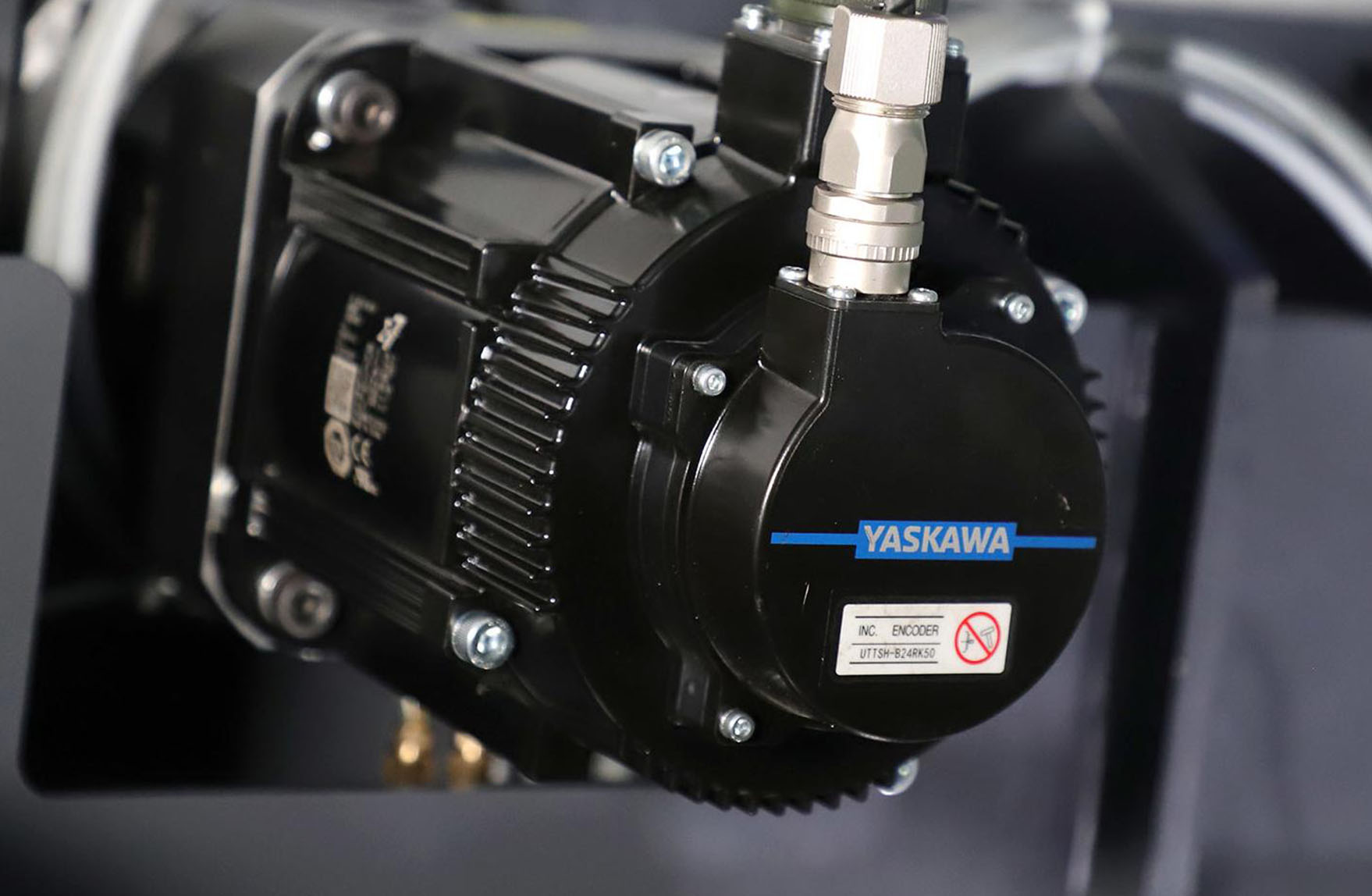

World TOP brand Japan Yaskawa servo motor and drivers. Global service. High precision planetary reducer to ensure machine accuracy.

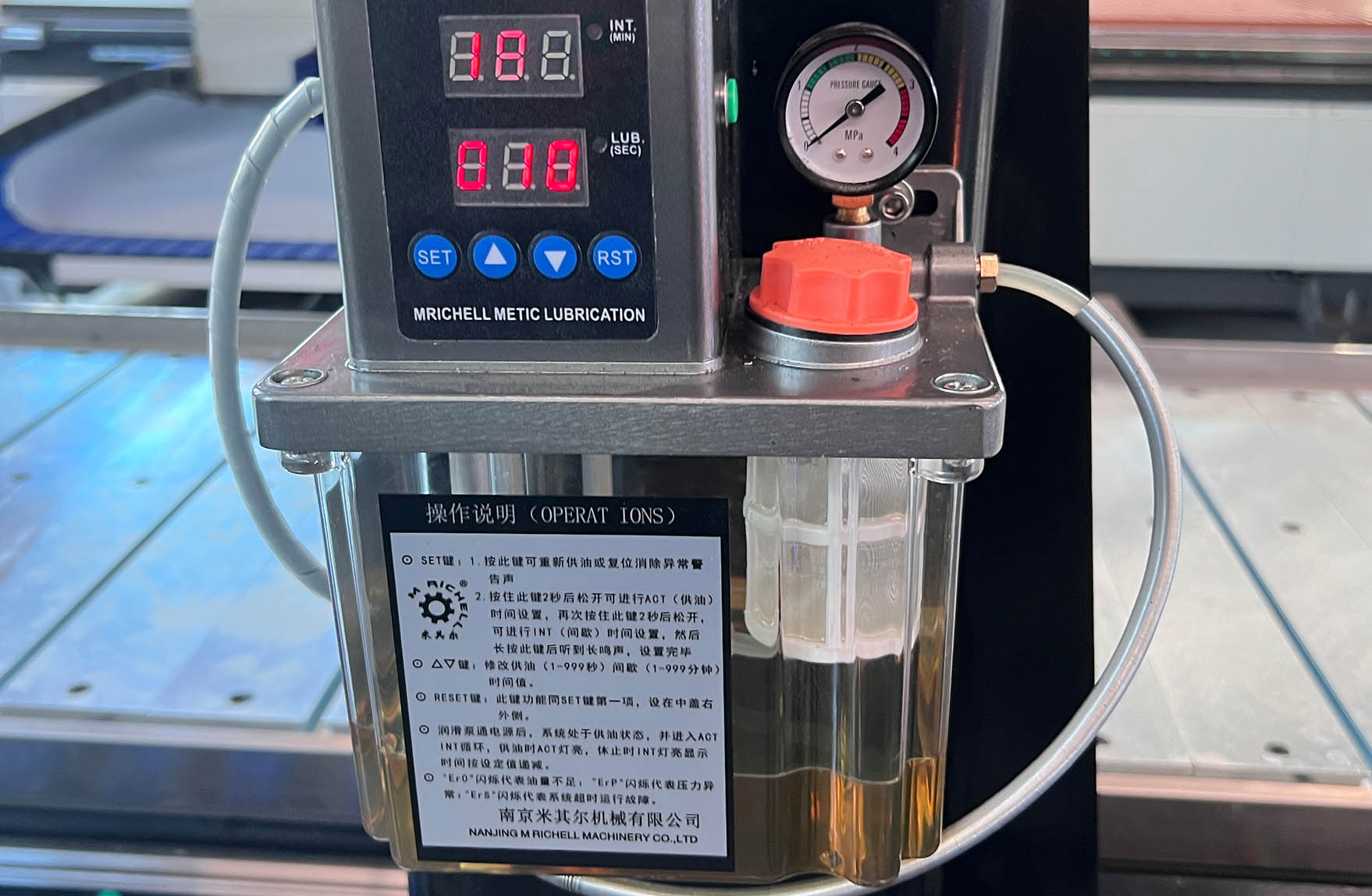

Automatic lubrication system:grease will not flow everywhere, keep machine clean and prolonging the life span of the machine
Samples
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it;Secondly,we will send you user manual or videos before you get the machine;Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional Aluminum Profile 4 Axis CNC Machining Center manufacturer,our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms:FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function.We can recommend the most suitable machine according to our experience.It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have.The machine was installed and debugged before delivery.You can use the machine directly after receiving it. Of course,we also can send us our technician to your country to install and debug.
