Product Information
◎ Applicable for drilling holes,milling grooves,processing circular holes and special-shaped holes,plane engraving of aluminum alloy profile
◎ System adopts Taiwan SYNTEC CNC Controller
◎ Adopting electric spindle:high precision,high safety and reliable.
◎ X axis adopts high-precision helical gear and rack;Y and Z axis adopt high-precision ball screw transmission and high precision
Technical Parameters

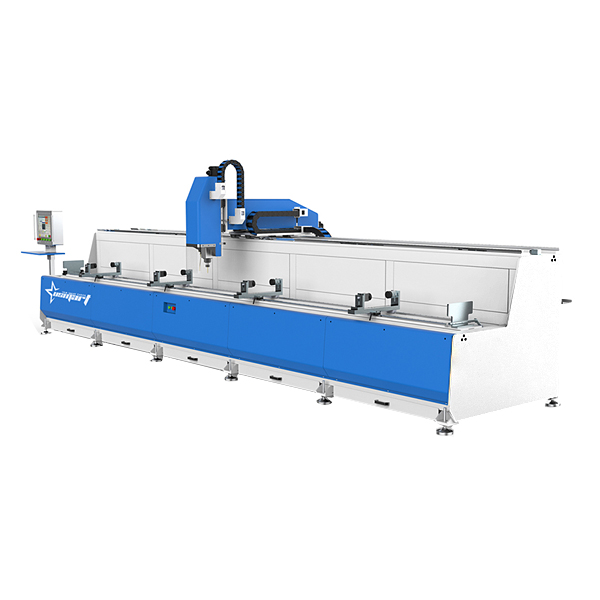

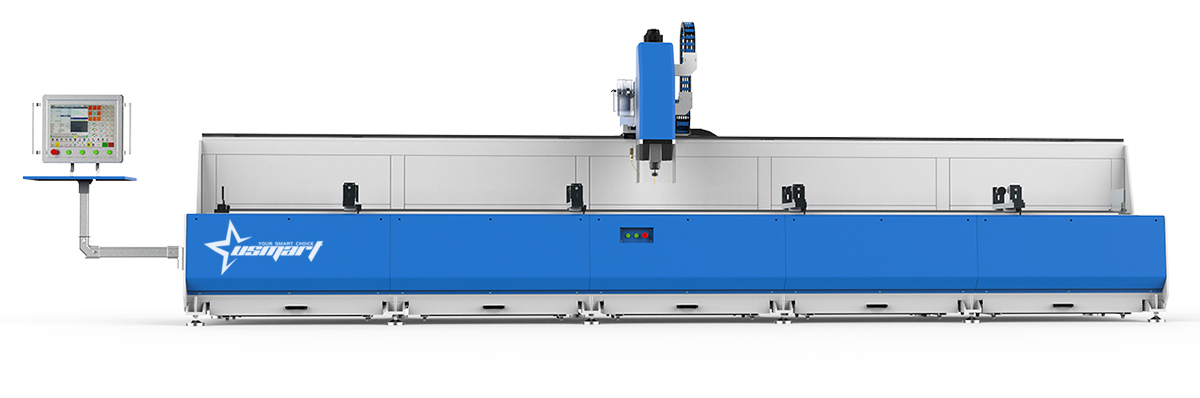

Model | URT 6000mm Aluminum Profile CNCDrilling Milling Machine |
| Processing range | 300x200x3000mm |
| Air pressure | 0.5-0.6MPa |
| Power supply | 380V/3Ph/50Hz or customized according tocustomer requests |
| Electric spindle | 6kw air cooling spindle, 18000 rpm/min |
| Control system | TIaiwan SYNTEC control system |
| Drive motor | Leadshine/apan Yaskawa servo motors with Japan SHlMPO reducer |
| Rail | Taiwan HWIN30/2525 |
| Rack and screw | 1.5M crescent and TBl screw |
| Inverter | Fuling/Taiwan Delta 7.5Kw |
| Table | 6 clamps |
| Bed | Thickened steel pipe welding, five-sidedmilling machining center processing |
| Weight | 2000kg |
| Autonics proximity switches, Schneider electrical components,AirTAC cylinders, high-flex shielded wiresOptional length:3000mm,4000mm,5000mm,6000mm,7000mm | |
Detail Demonstration

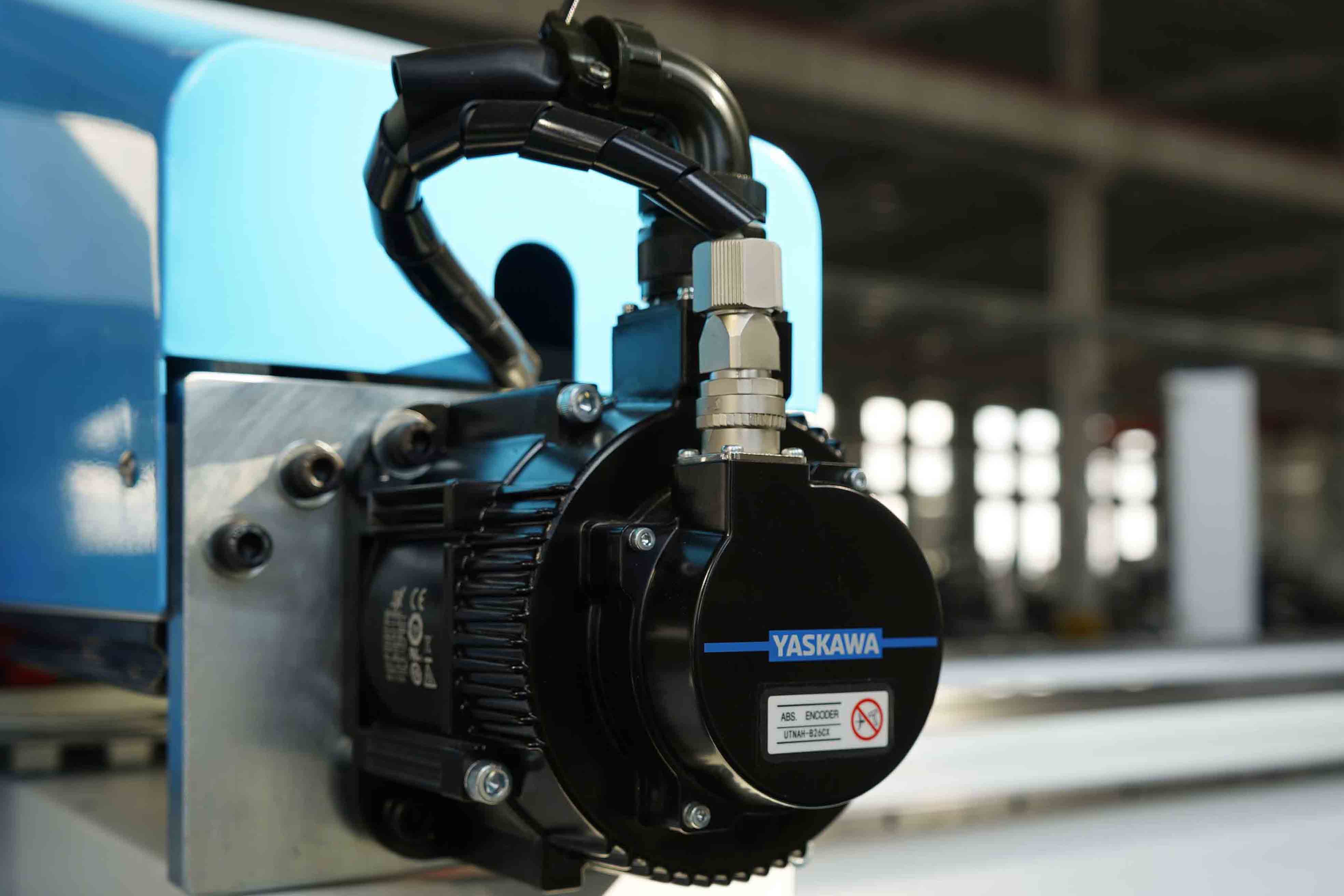

Leadshine servo motor or Japan Yaskawa servo motor optional

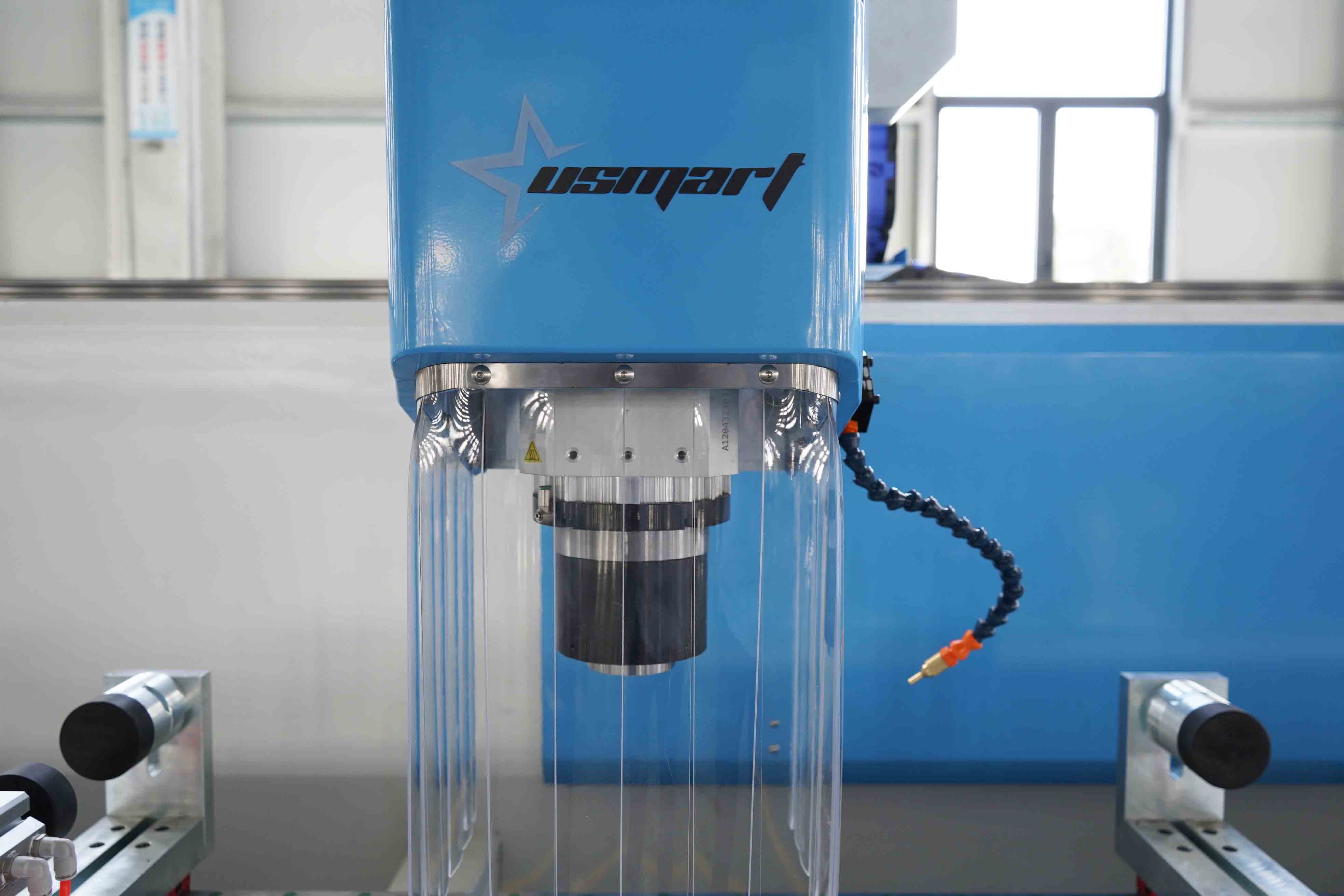

6KW air cooling spindle

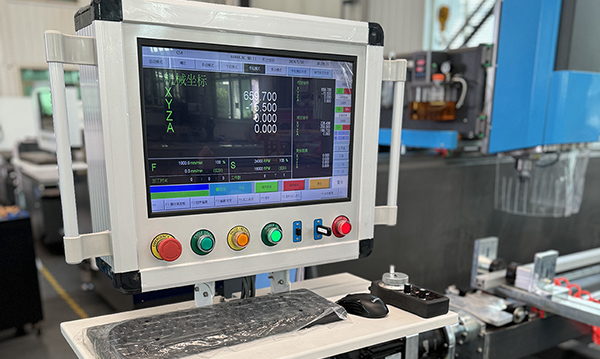

Taiwan Syntec control system

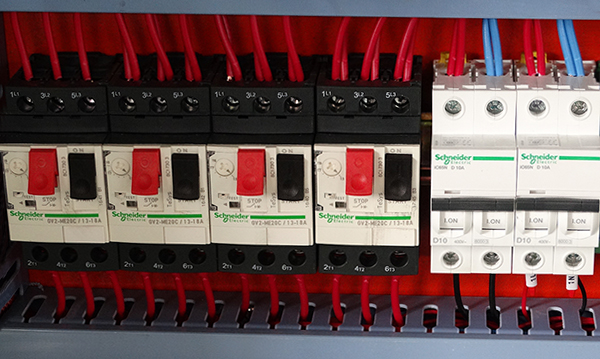

France Schneider electric parts

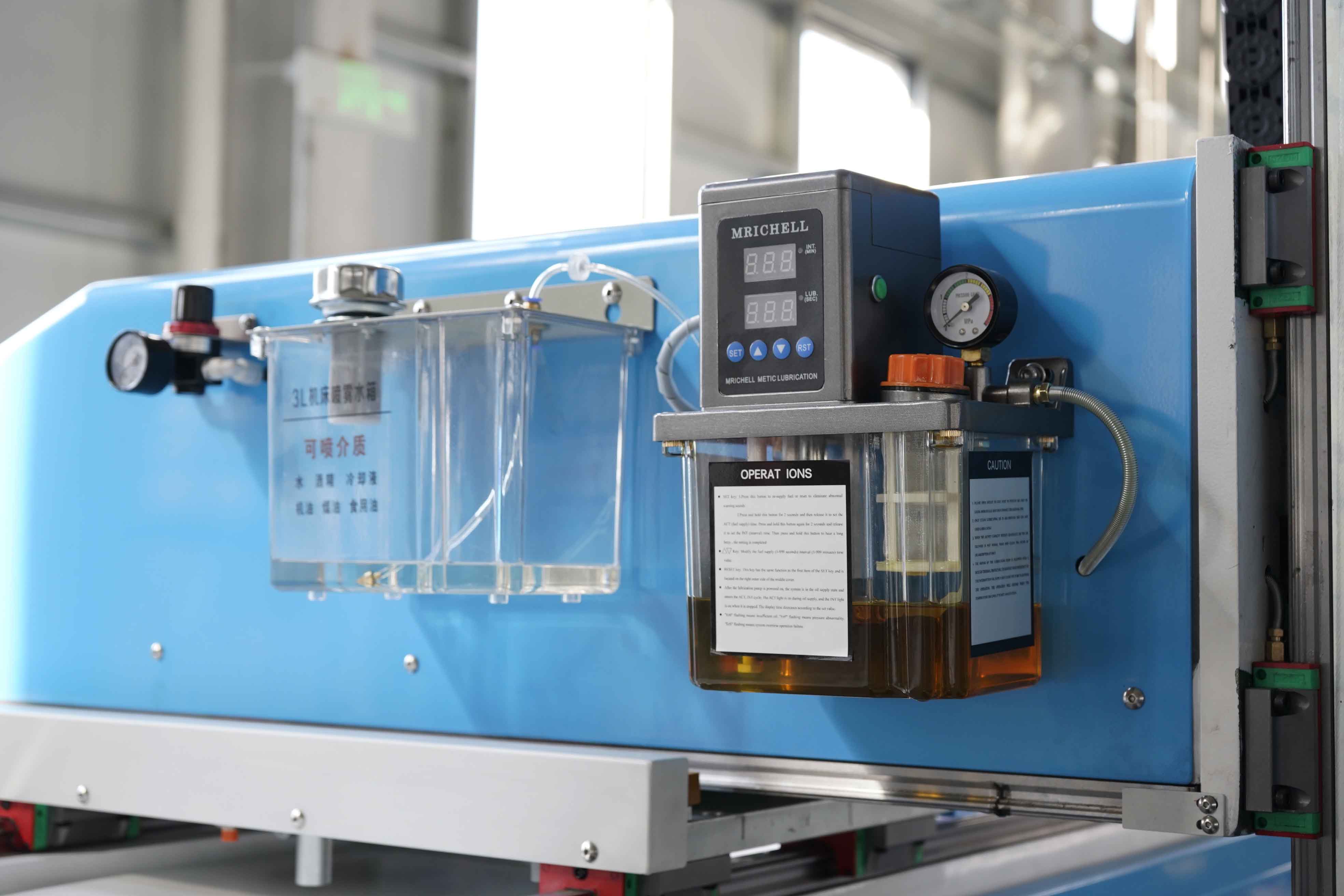

Automatic lubrication

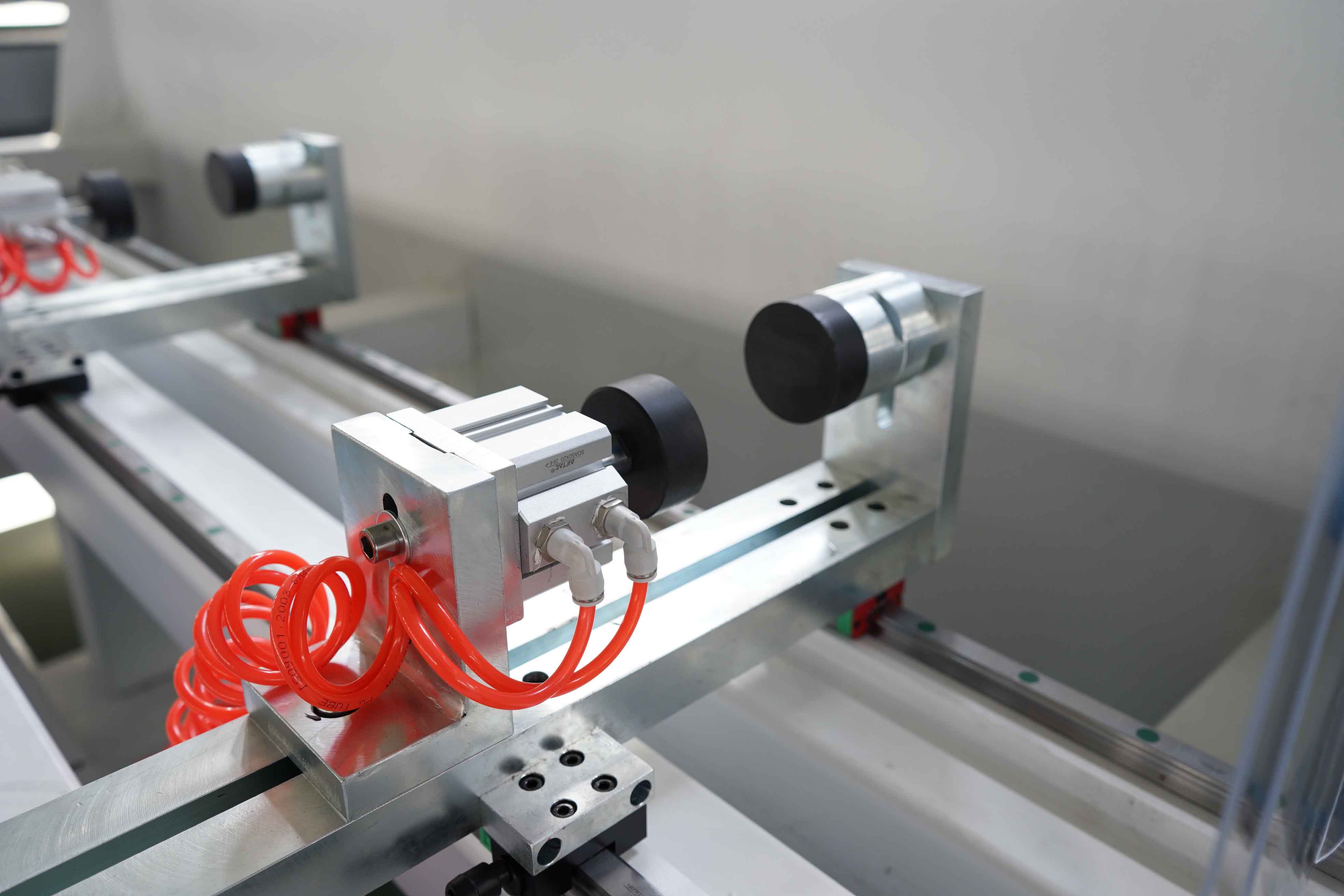

Clamping table

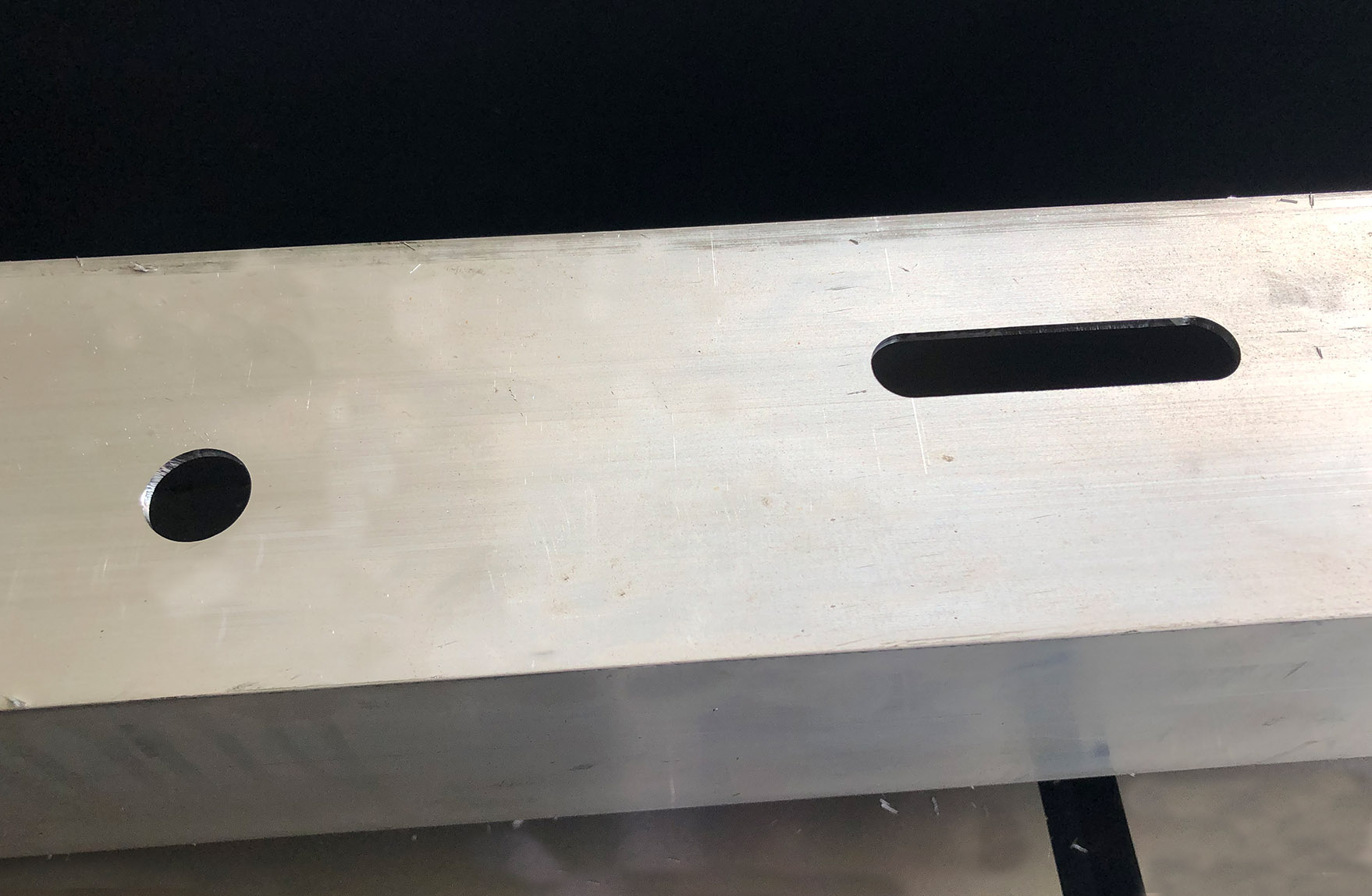

Aluminum Profile CNC Drilling Milling Samples

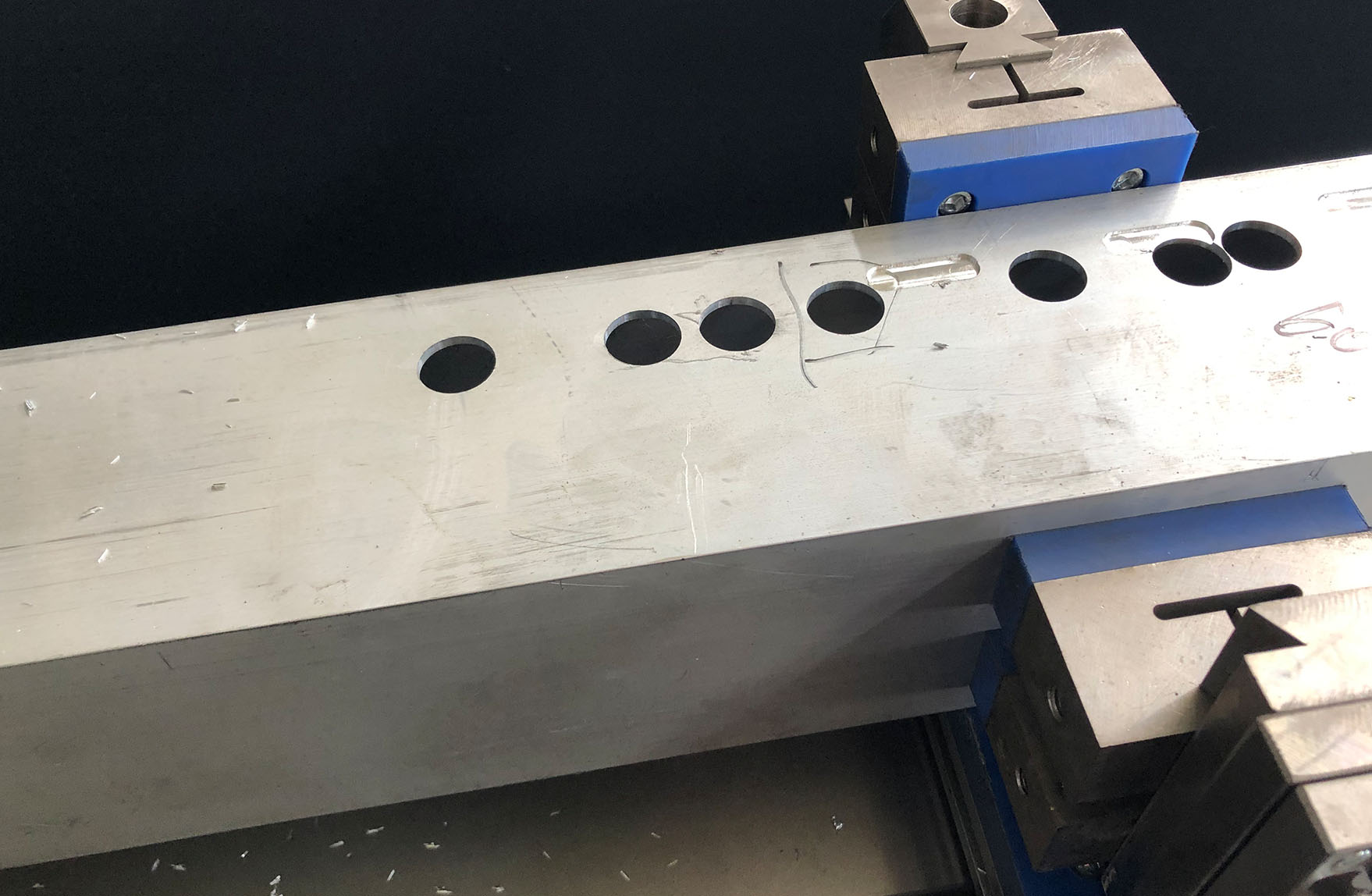

Aluminum Profile CNC Drilling Milling Samples
FAQ
●How To Use The Machine After Receving The Machine?
Firstly,when you receive machine,you need to contact with us,our engineer will together with you to deal with it;Secondly,we will send you user manual or videos before you get the machine;Thirdly,our professional technician online teach you until you can use it well by yourself.
●Why Should You Buy From Us Not From Other Suppliers?
We are professional USMART-A8 6000mm Aluminum Profile CNC Drilling Milling Machine manufacturer,our service as below:
1.Factory supply directly
2.12 months warranty for the whole machine
3.Friendly English version manual and operation video
4.Engineer available to service machinery overseas
●What Services Can We Provide?
Accepted Delivery Terms:FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,CNY...
●How To Choose A Suitable Machine?
You can tell us your aluminum profile size and the request of machine function.We can recommend the most suitable machine according to our experience.It also can be customized according to your requirements.
●Do You Have A Setup And Equipment Commissioning Service?
Yes,we have.The machine was installed and debugged before delivery.You can use the machine directly after receiving it. Of course,we also can send us our technician to your country to install and debug.
